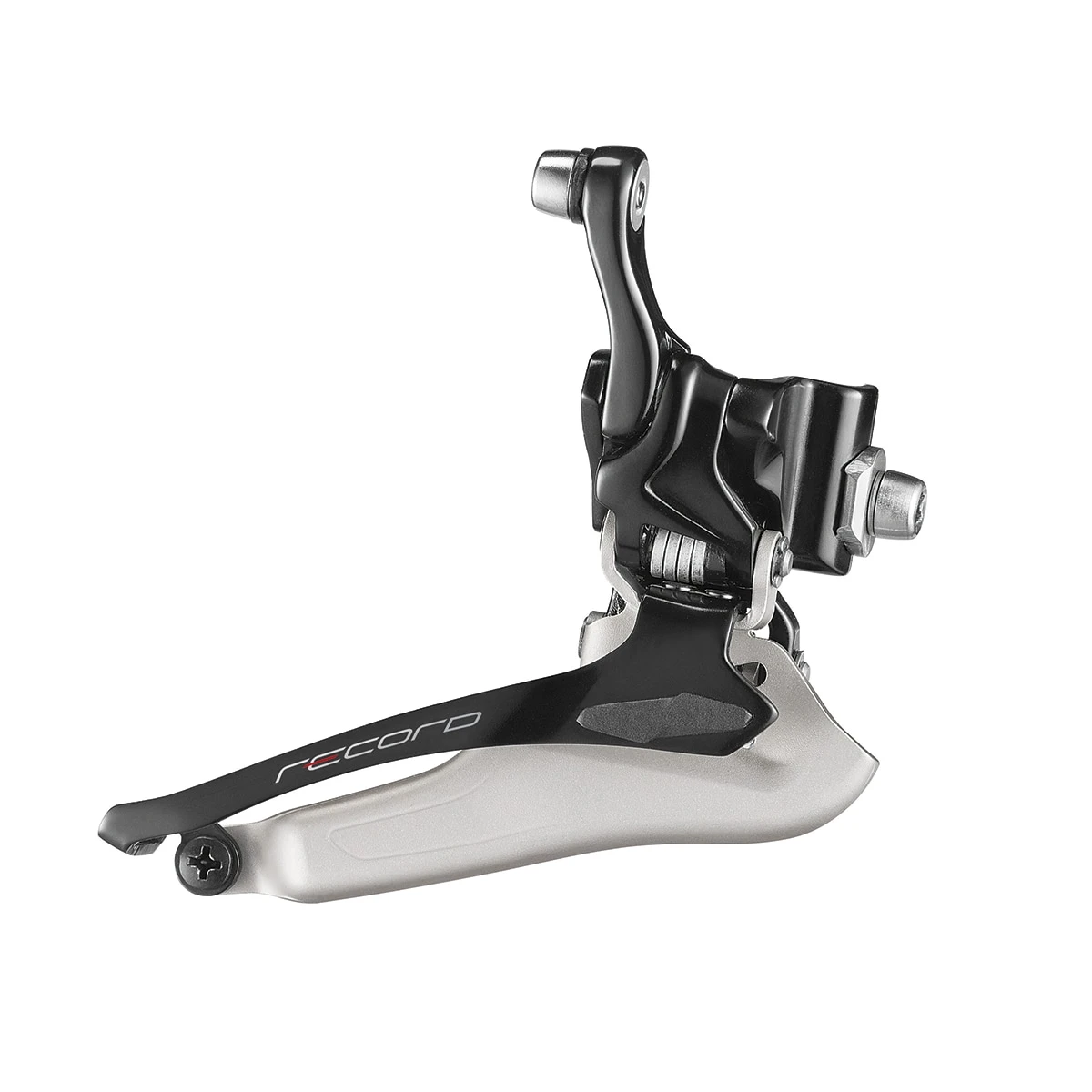

Campagnolo® Record 12s Braze-on Front Derailleur

The Campy Tech Lab designers focused on functionality, speed, precision and maximum performance when redesigning the Record 12s™ braze-on front derailleur and gave it the same technical characteristics as its big brother of the Super Record 12s™ series. Especially designed to perfectly work with their own mechanical 12-speed road groups, the significantly smaller cage allows for more chain crossovers and offers increased tyre clearance for up to 32 mm wide tyres at that. . Thanks to an optimized lever with an additional joint, Campagnolo managed to further reduce the shifting forces for the Record 12s™ front derailleur and to allow for faster shifting.

Details:
· For all Campagnolo Super Record 12s™/Record 12s™ double cranksets
· Special shape of inner cage plate for maximum upshifting speed
· Steel screws
· Modified lever arm with additional joint for effective and precise movement, while preventing contact with the limit screw
· Optimized shape with sufficient space for tyres with a width of up to 32 mm
· Two fixing points for the gear cable for full frame compatibility

Specs:
· Compatible with 2 x 12-speed Campagnolo Super Record 12s™/Record 12s™
· For braze-on socket
· Largest chainring: 55 teeth
· Smallest chainring: 34 teeth
· Capacity: 16 teeth
· Down Pull
· Material: aluminium
· Weight: approx. 81 g
· Type: FG

ATTENTION:
EXCLUSIVELY compatible with Campagnolo 12-speed components with F-, G-, or FG label.

NOTE: All Campagnolo components of the new groups are marked with a letter to indicate their compatibility. So, please check the compatibility of the letter (if present) on shifter, rear derailleur and crankset.

Additional Campagnolo Record 12s™ components:
· Campagnolo Record 12s Ultra Torque crankset (product code: 2276763)
· Campagnolo Record 12s rear derailleur 12-speed (product code: 2276769)
· Campagnolo Record 12s / Record 12s 12-speed chain (product code: 2276752)
· Campagnolo Record 12s Ergopower Ultra-Shift brake/shift levers (product code: 2276757)
· Campagnolo Record 12s Disc Brake Ergopower Ultra-Shift brake/shift levers (product code: 2276801)
