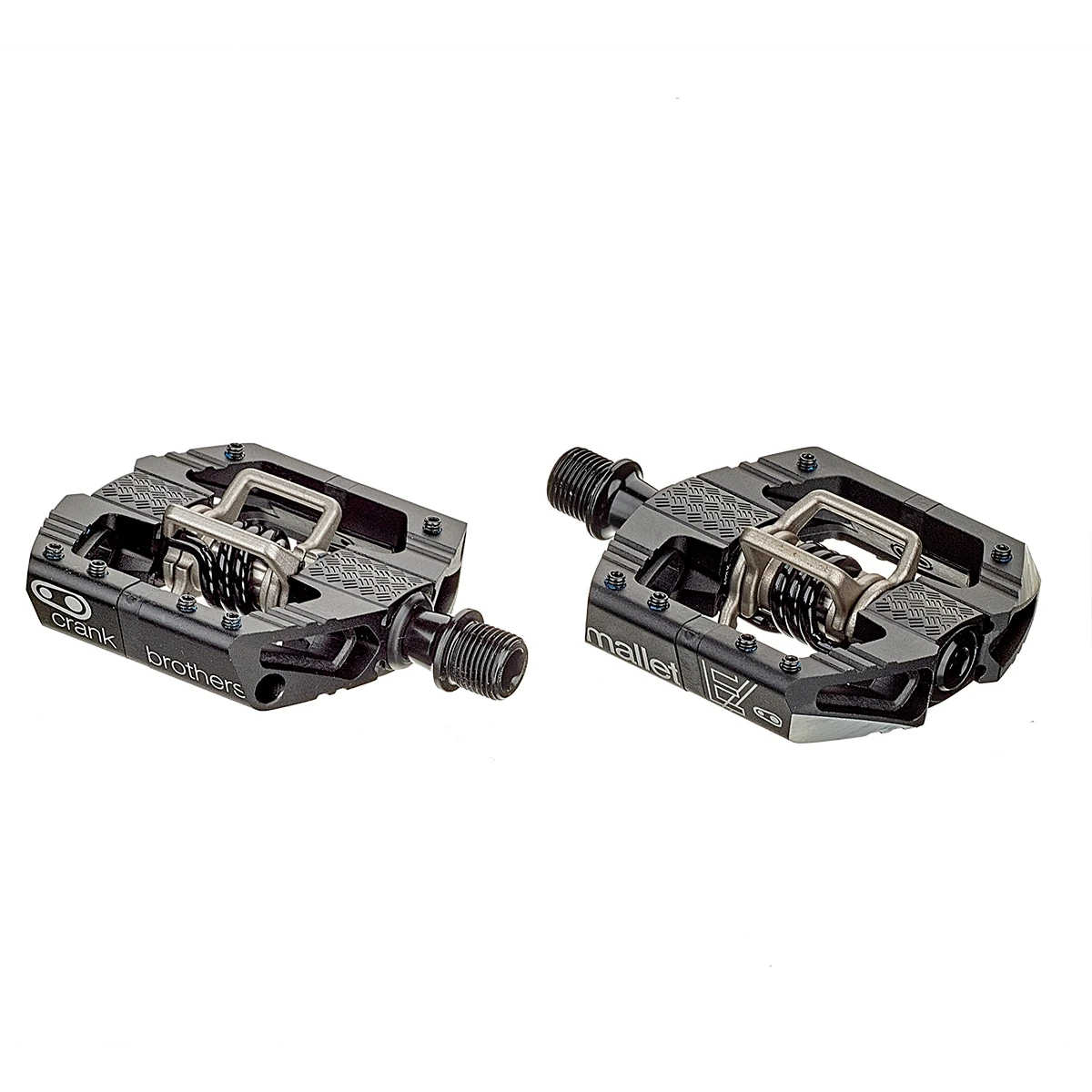

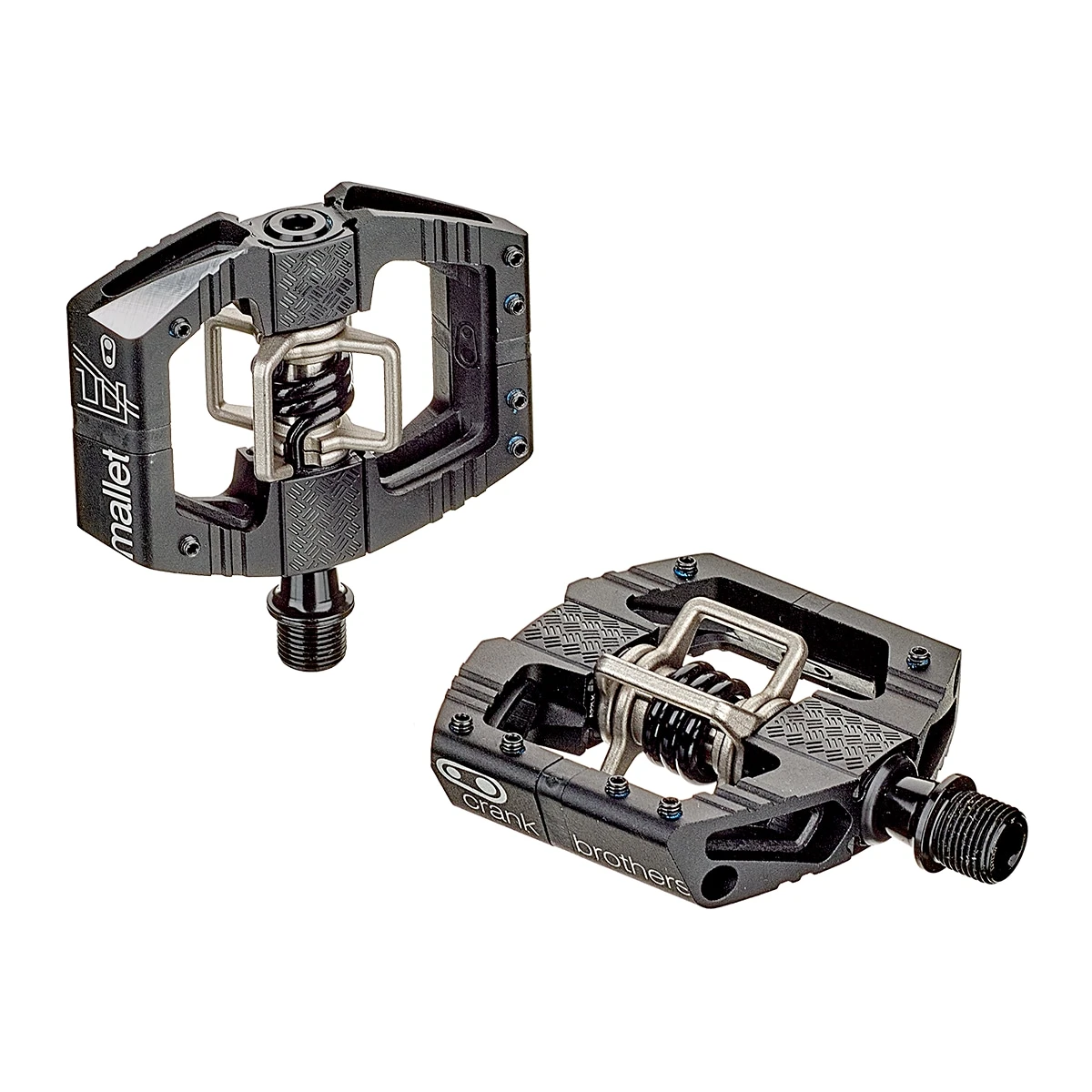

Crankbrothers Mallet E MTB Enduro Clipless Pedals

There’s a reason why you will often find the Mallet E MTB clipless pedal by Crankbrothers on the bikes of pros in DH and Enduro races. At first sight, the only difference between the Mallet E and a modern platform pedal without clip mechanism is its height. But this is precisely what makes the Mallet E an excellent clipless enduro pedal with high flexibility and many adjustment options for optimal adaptation to the shoe. Crankbrothers’ spring system not only impresses with good self-cleaning properties, but also offers a lot of freedom of movement when riding uphill or in technical terrain. The height of the platform can be optimally adjusted with replaceable traction pads in 1 and 2 mm as well as spacers under the cleats. The fine-tuning can be done with height-adjustable pins to ensure the perfect mix of grip and mobility. Correctly adjusted, the foot sits perfectly on the concave pedal cage, but can still be turned inwards without clipping out. The excellent material composition and solid construction of the Mallet E speak for themselves and promise high durability.

Details:
• Lightweight high-end MTB clipless pedals
• Concave platform with ribbed structure for secure foothold
• Premium bearings with double seal system
• Replaceable traction pads for an optimal shoe/pedal interface
• 6 adjustable pins per side to adjust flow and grip
• Self-cleaning Crankbrothers clip mechanism
• 4-sided entry with high freedom of movement
• Chamfered edges to reduce rock-strikes
• 52 mm Q-factor higher manoeuvrability on tight trails
• Release angle can be adjusted at 15° / 20° (through cleat installation)
• Incl. 6° premium cleats

Technical details:
• Intended use: MTB, Enduro, Racing
• Clipless pedal system: Crankbrothers spring system (both sides)
• Material pedal body: 6061 T6 aluminium
• Material pedal axle: forged SCM 435 cromoly steel
• Material end cap: hex alloy
• Wing material: 17-4PH stainless
• Spring material: 300 series stainless steel
• Bearings: Igus LL sleeve bearings (inside), Enduro Max cartridge bearings (outside)
• Number of pins: 6 per side
• Pin height: 8 mm
• Max. rider weight: no restriction
• Platform dimensions (LxW): approx. 88 x 76 mm
• Platform height: approx. 19 mm
• Weight: approx. 419 g (pair)

In the box:
• 1 pair of Crankbrothers Mallet E MTB pedals

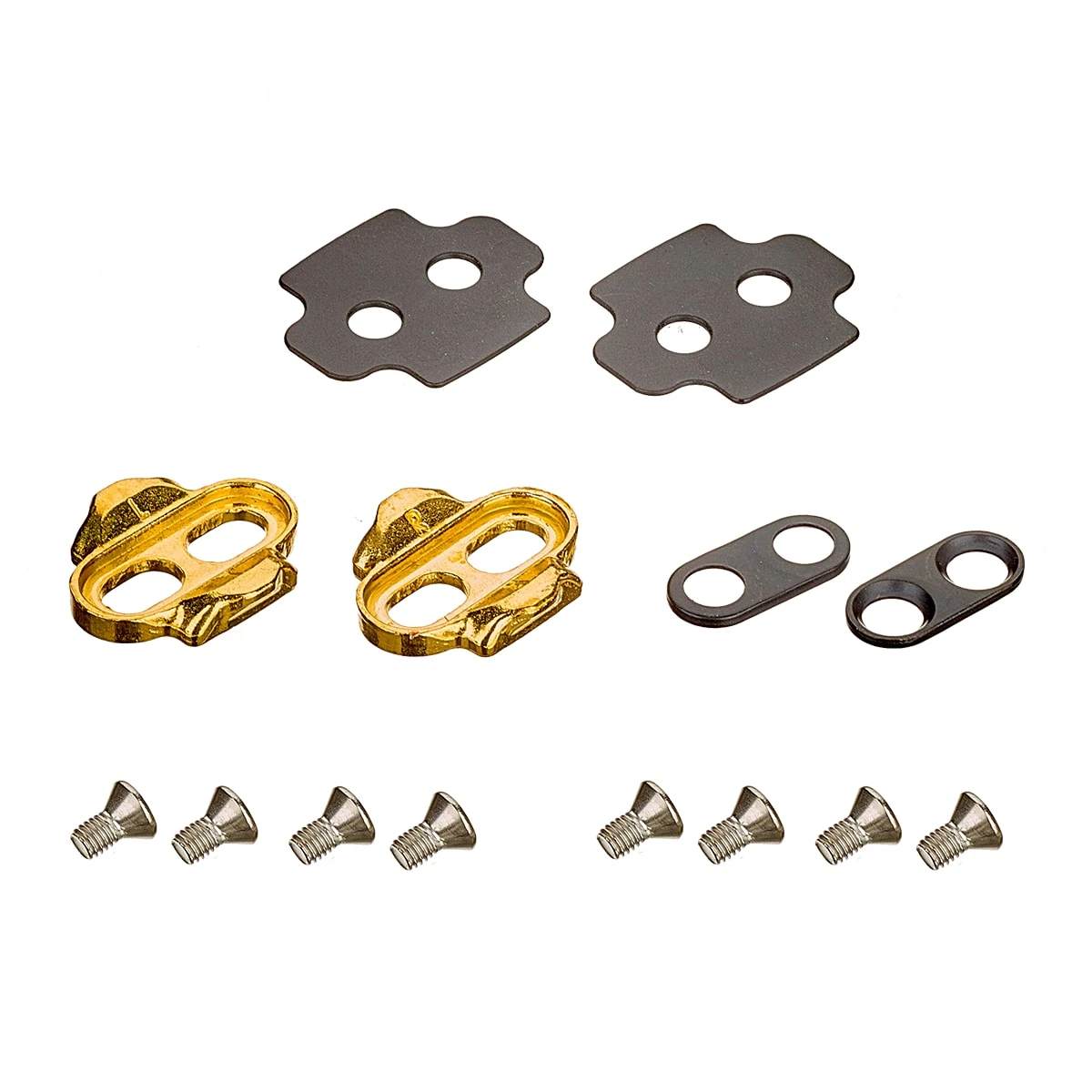

• 2 Crankbrothers premium cleats with shims and bolts

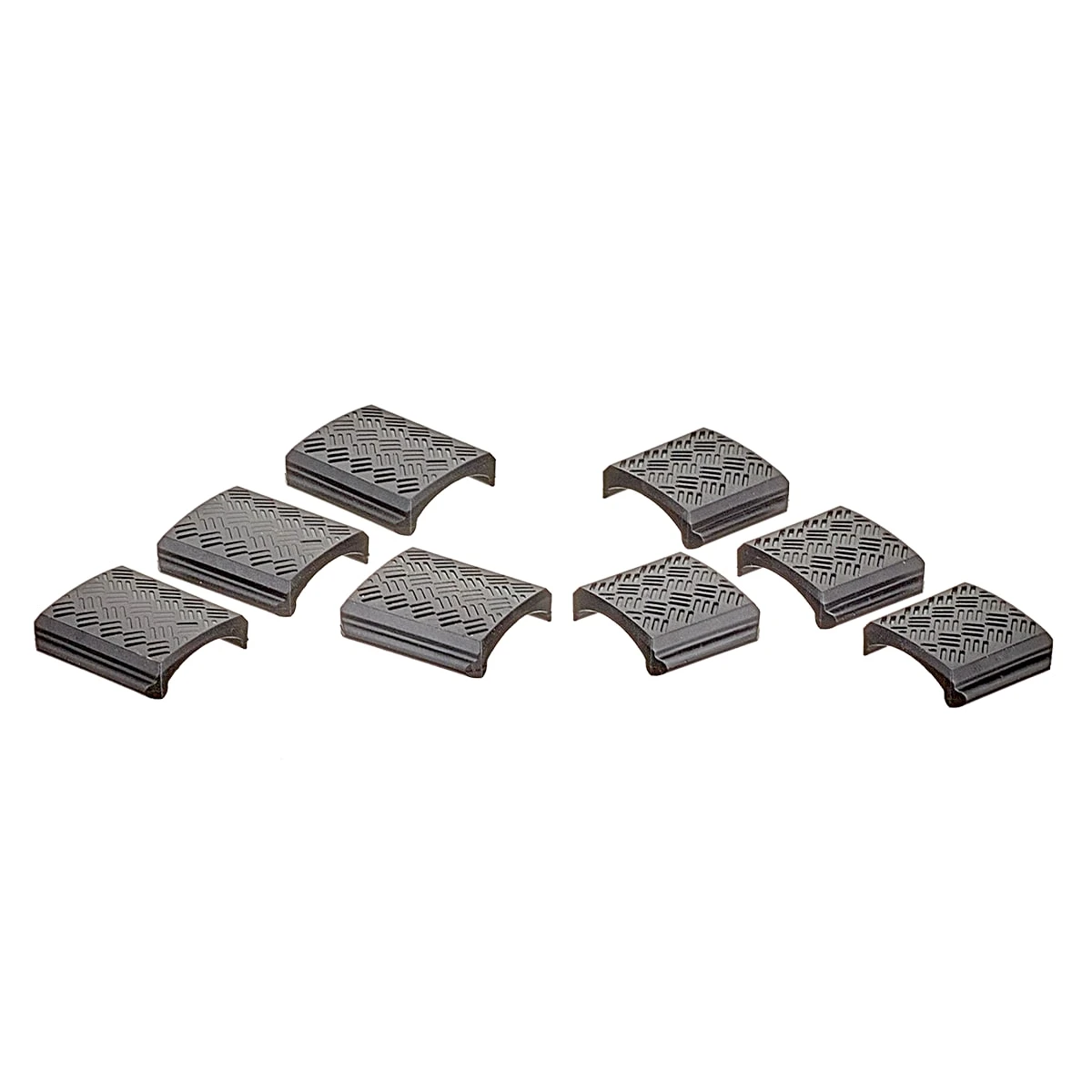

• 1 pair of traction pads 2 mm
