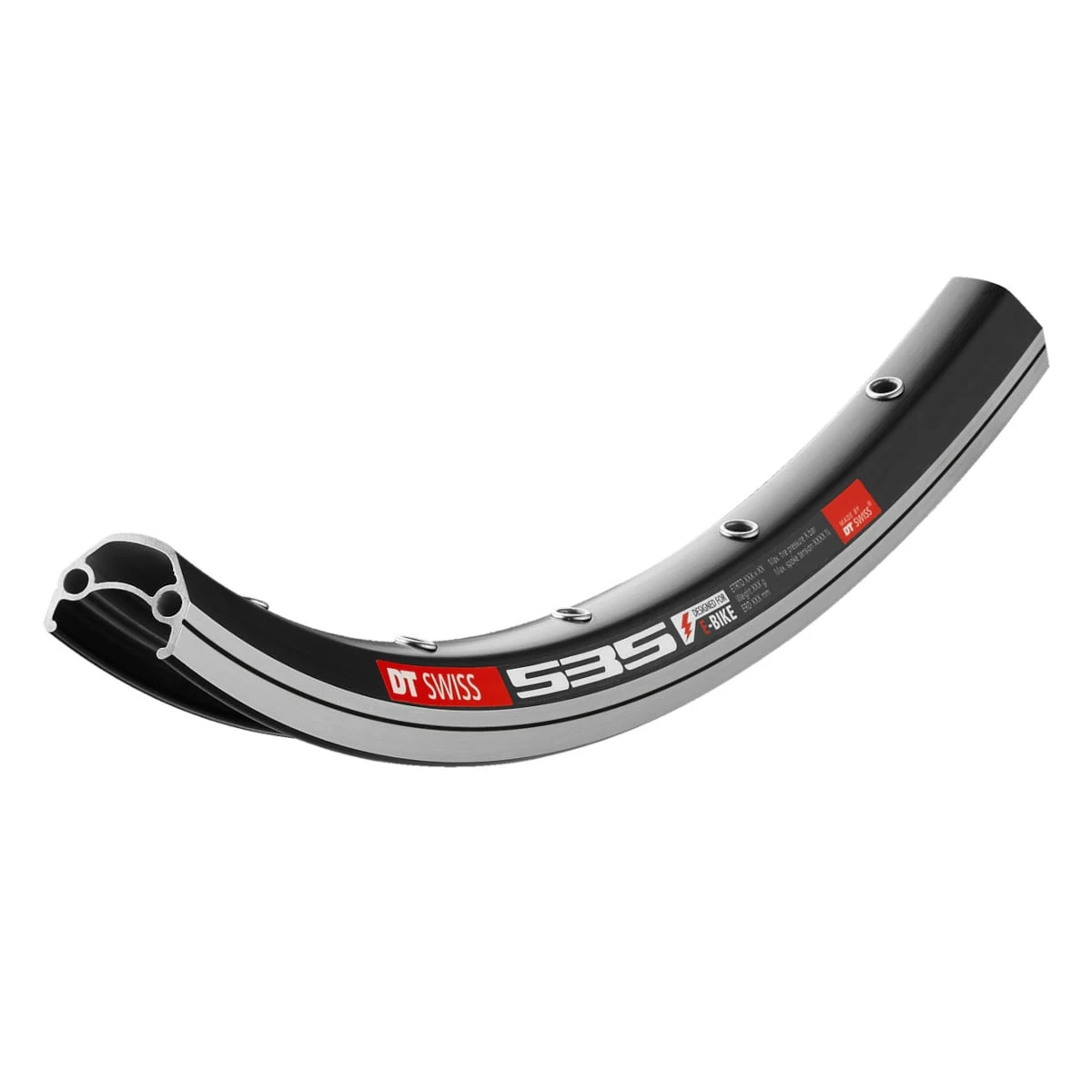

Dt-swiss 535 Trekking Rim E-bike 29″

The DT Swiss 535 trekking rim is optimised for e-bikes and should be used when extra-stable components are required. Thanks to the eyeleted spoke holes and the reinforced rim profile, the aluminium rim in proven DT Swiss quality impresses with both high durability and compatibility with large-volume tyres.

Details:
• Extra-stable aluminium rim for increased loads
• Max. system weight 140kg
• Spoke holes reinforced with steel eyelets
• For bikes with rim brakes
• Rim flank with wear indicator
• Approved for e-bikes
• Available with 32- or 36-hole (please select version)

Technical details:
• Intended use: Trekking, City, E-Bike
• Approved for e-bikes: yes
• Material: aluminium
• Brake: Rim brakes
• Wear indicator: yes
• Valve bore: Ø 8.5mm for Schrader valve (with SV-Adaper for Presta)
• Tubeless ready: ja
• Rim width: approx. 24 mm
• Rim depth: approx. 20 mm
• Wheel size: 29″ / 700C
• ETRTO: 622 – 19
• ERD: 603 mm
• Number of bolts: 32 or 36 hole
• Single eyelets
• Rim seam: pin joint connector
• ASTM classification: 2 (suitable for use on and off the road and for drops of up to 15 cm)
• Max. system weight: 140 kg
• Required rim tape width: 22 mm
• Recommended nipple length: 12 mm
• Recommended tyre width: 23 – 60 mm
• Weight: approx. 600 g

In the box:
• 1 DT Swiss 535 Trekking rim e-bike 29″
• 1 DT Swiss valve hole adapter to Ø 6.5 mm
