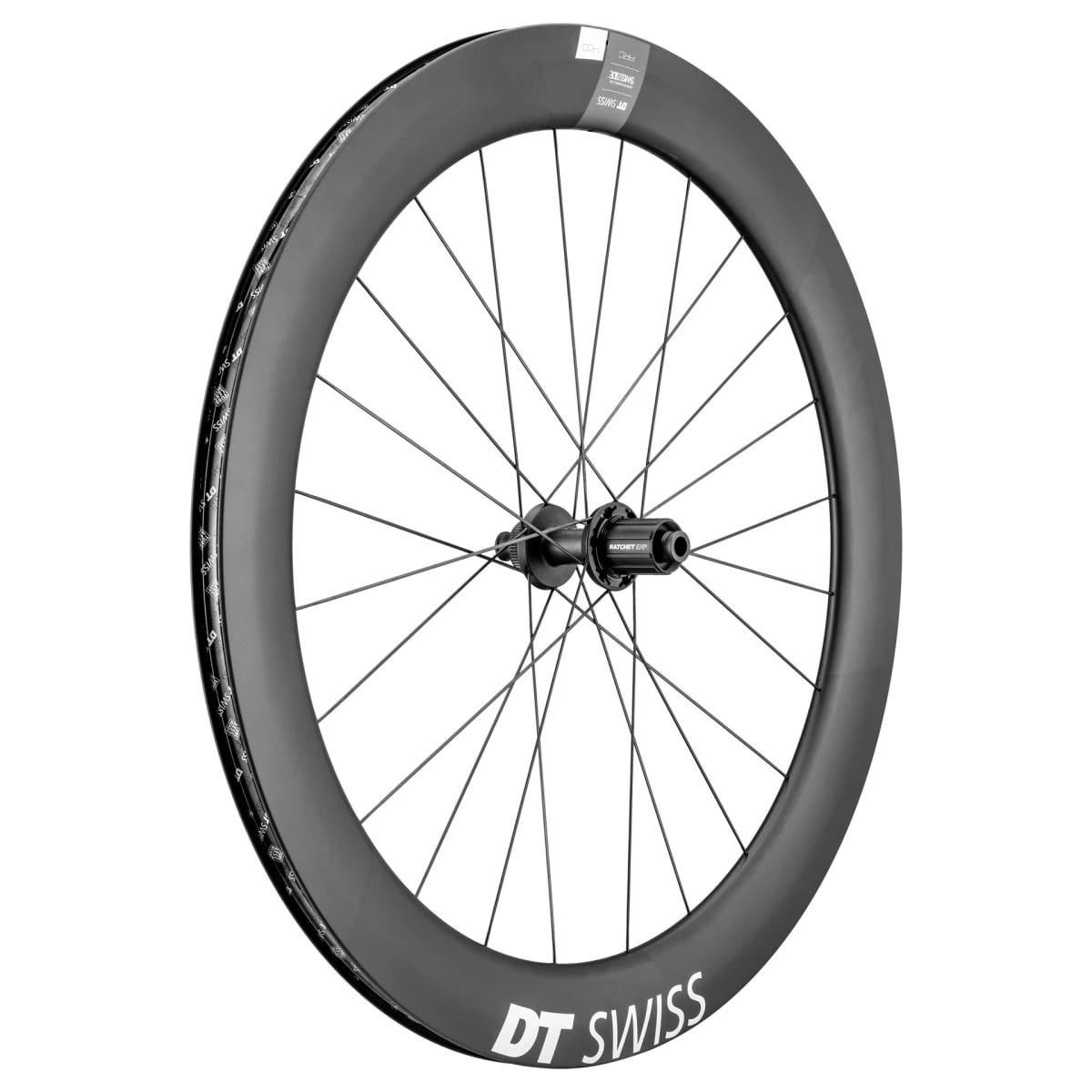

Dt-swiss ARC 1400 Dicut® DB 62 Carbon Aero Road Rear Wheel 28″/700C SHIMANO HG / SRAM XDR™

The DT Swiss ARC 1400 Dicut® DB 62 carbon rear wheel for road bikes with disc brakes impresses with good aerodynamics and all-round qualities!
The 62 mm deep aero rim combines high stiffness with a low weight and predestines the wheel for all kinds of triathlon courses as well as for fast and demanding flat stages.

The leading component technology by DT Swiss and SWISS SIDE’s know-how in aerodynamics give the aero all-round wheel unparalleled control and aero stability. In moderate crosswinds, you benefit from acceleration through the sail effect as well as a stable aerodynamic position with full control over your bike. Whether in competitions or on a relaxed training ride.

The ARC 1400 wheels not only impress with their medium-high AERO+ profile rim. High-quality DT Swiss aero spokes and the lightweight 240 Dicut® aero hub with the weight-reduced Ratchet EXP freewheel system for a direct drive round off the first-class design of this carbon wheel. Excellent tubeless compatibility provides less weight, improved puncture resistance, lower rolling resistance and more comfort when equipped with tubeless tyres.

Technologies:

• AERO+:
The symbiosis of air resistance, handling and efficiency. – The optimisation of the wheel aerodynamics by DT Swiss in cooperation with SWISS SIDE reduces rotational and air resistance for low-friction acceleration and controlled steering behaviour in crosswinds. In combination with a larger inner rim dimension for wider tyres, rolling resistance is also reduced. Traction and comfort are enhanced by the wide contact patch.

• RATCHET EXP SYSTEM:
Thanks to the integration of star ratchet and thread ring, this is currently the lightest ratchet freewheel system from DT Swiss. The start ratchets for the Ratchet EXP system have 36 or 54 teeth for a particularly small engagement angle. The system stands out for high reliability thanks to the simultaneous meshing of the teeth, which leads to significantly lower point loads. The no-tool concept allows easy maintenance and tool-free conversion to common axle and freehub body standards.

• TUBELESS:
All DT Swiss wheels are tubeless ready. The profiles of the DT Swiss rims are specially designed for tubeless use. The rim profile makes it easier to fit the right tyre and ensures a perfect fit. The tubeless system of the rim consists of DT Swiss tubeless ready tape for sealing and a DT Swiss tubeless valve in a length that complies with the rim. When using tubeless ready tyres, a compatible sealant must be used. However, it is also possible to use a conventional combination of tyre and inner tube.

• BEARINGS:
Having learned from years of experience, DT Swiss only uses durable cartridge bearings without bearing play adjustment. DT Swiss hubs are designed to have the optimum axial and radial bearing play when they are properly installed. The correct preload of the bearings to compensate for the clamping force of the wheel mounting system is the basis for a play-free hub with minimum friction.

Technical details:

Rim:
• Wheel size: 28”
• Rim material: carbon
• Rim type: clincher (symmetrical)
• Brake type: disc brake
• Rim depth: 62 mm
• Rim width: 27 mm
• Inner rim width: 20 mm
• ETRTO: 622 – 20
• For Presta valve (Ø 6.5 mm)
• Tubeless ready
• Suitable for tyre widths: 25 – 64 mm (recommended max. tyre width: 34 mm)

Spokes and nipples:
• Spoke type: DT aero comp® t-head
• Number of spokes: 24 pcs
• Spoke pattern: 2-cross
• Nipples: DT Swiss Pro Lock® hidden aluminium

• Hub body:
• 240, Dicut®, 4 sealed cartridge bearings
• For disc brakes
• Aluminium freewheel and aluminium hub body
• CenterLock brake rotor mount (IS 6-bolt with adapter, prod. code: 2283716)
• Ratchet EXP freewheel system, 36T (10° degree engagement)

Hub spacing:
• Rear axle: 12 x 142 mm (thru axle)

Cassette compatibility (with pre-mounted SHIMANO HG Spline L freehub body):
• SHIMANO 8-/9-/10-/11-speed Road/MTB cassettes and SHIMANO ROAD 12-speed cassettes
• SRAM 8-/9-/10-speed Road/MTB cassettes
• SRAM 11-speed Road cassettes
as well as other SHIMANO HG-compatible sprockets.

Cassette compatibility (with optional SRAM XDR™ freehub body):
• SRAM XDR™ 12-speed road cassettes
• SRAM XD™ 11-/12-speed MTB cassettes (requires separately available 1.85 mm spacer ring!)
as well as other SHIMANO HG-compatible cassettes.

Weight:
• Weight: approx. 936 g
• ASTM classification: 1 (for use on asphalt roads)
• Max. system weight: 110 kg (cyclist, bike, gear and luggage)

In the box:
• 1 DT Swiss ARC 1400 Dicut® DB 62 carbon aero rear wheel
• 1 DT Swiss SHIMANO HG Spline L freehub body (fitted)
• 1 DT Swiss SRAM XDR™ freehub body
• 1 DT Swiss Tubeless Ready rim tape 23 mm (fitted)
• 1 DT Swiss tubeless valve 49-65 mm
• 1 DT Swiss valve guard

Tip:
The freehub body can be exchanged without tools. A how-to video from DT Swiss on changing the freehub body can be found here:
https://www.dtswiss.com/de/support/how-to-videos
You can find the DT Swiss special grease you may need under prod. code: 226341701
