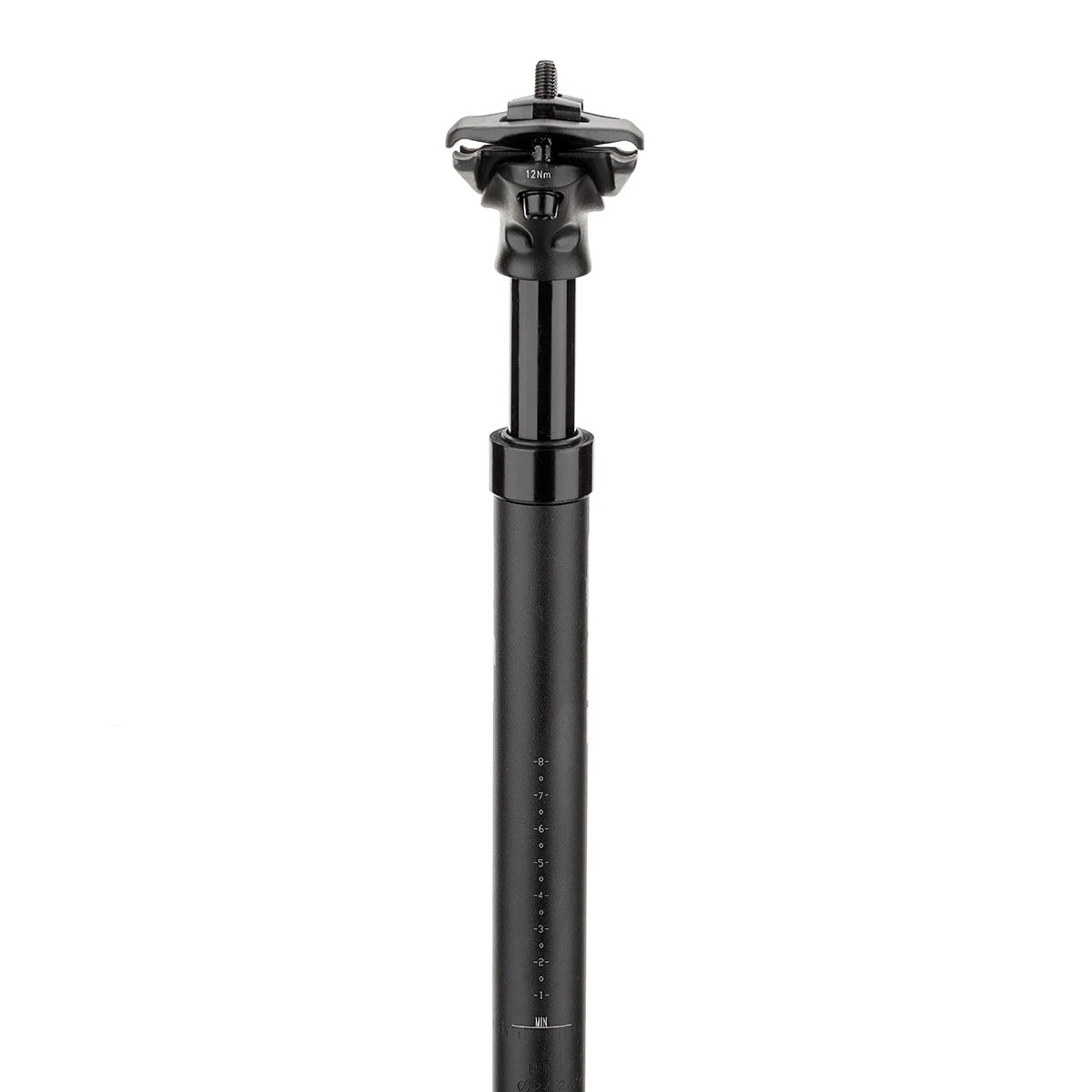

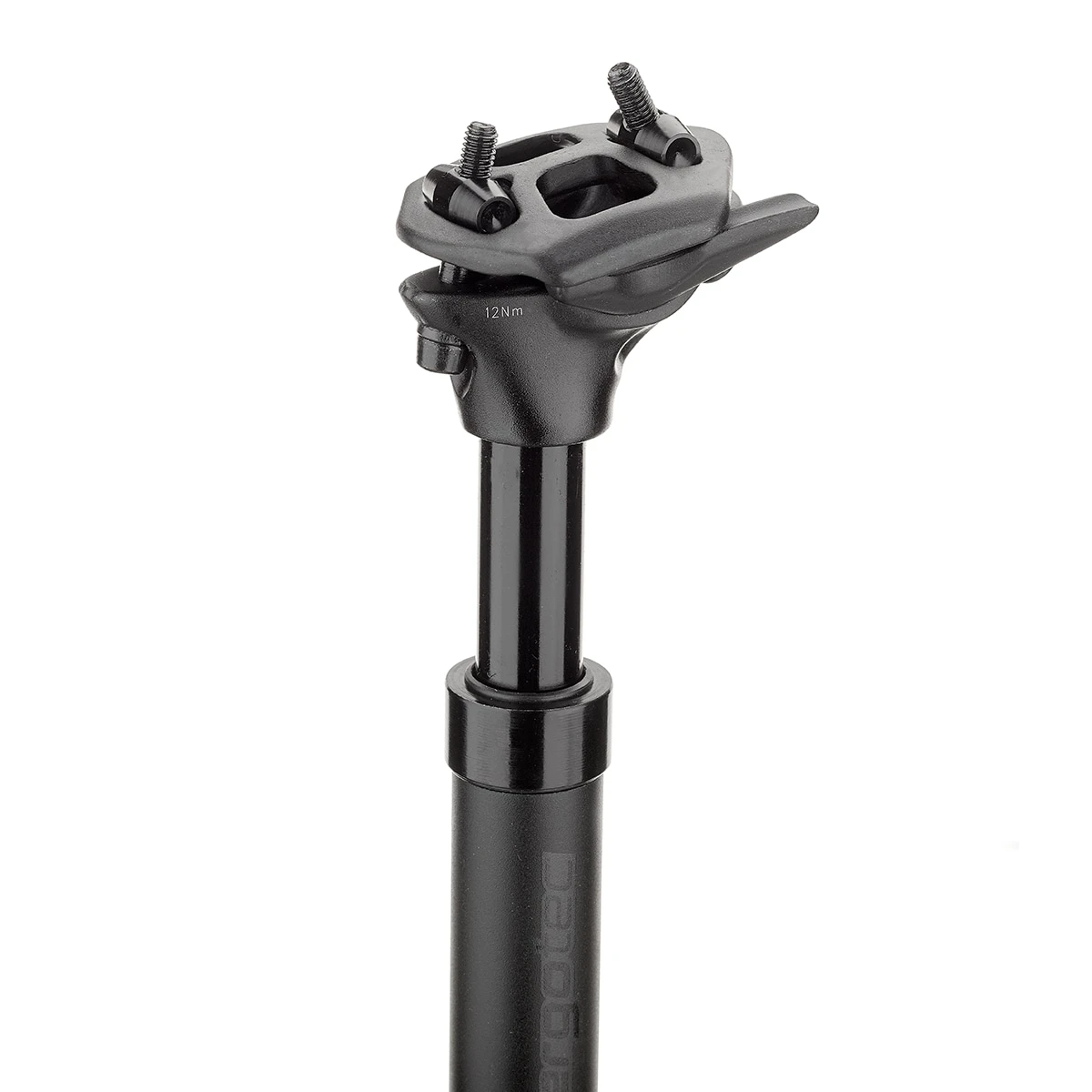

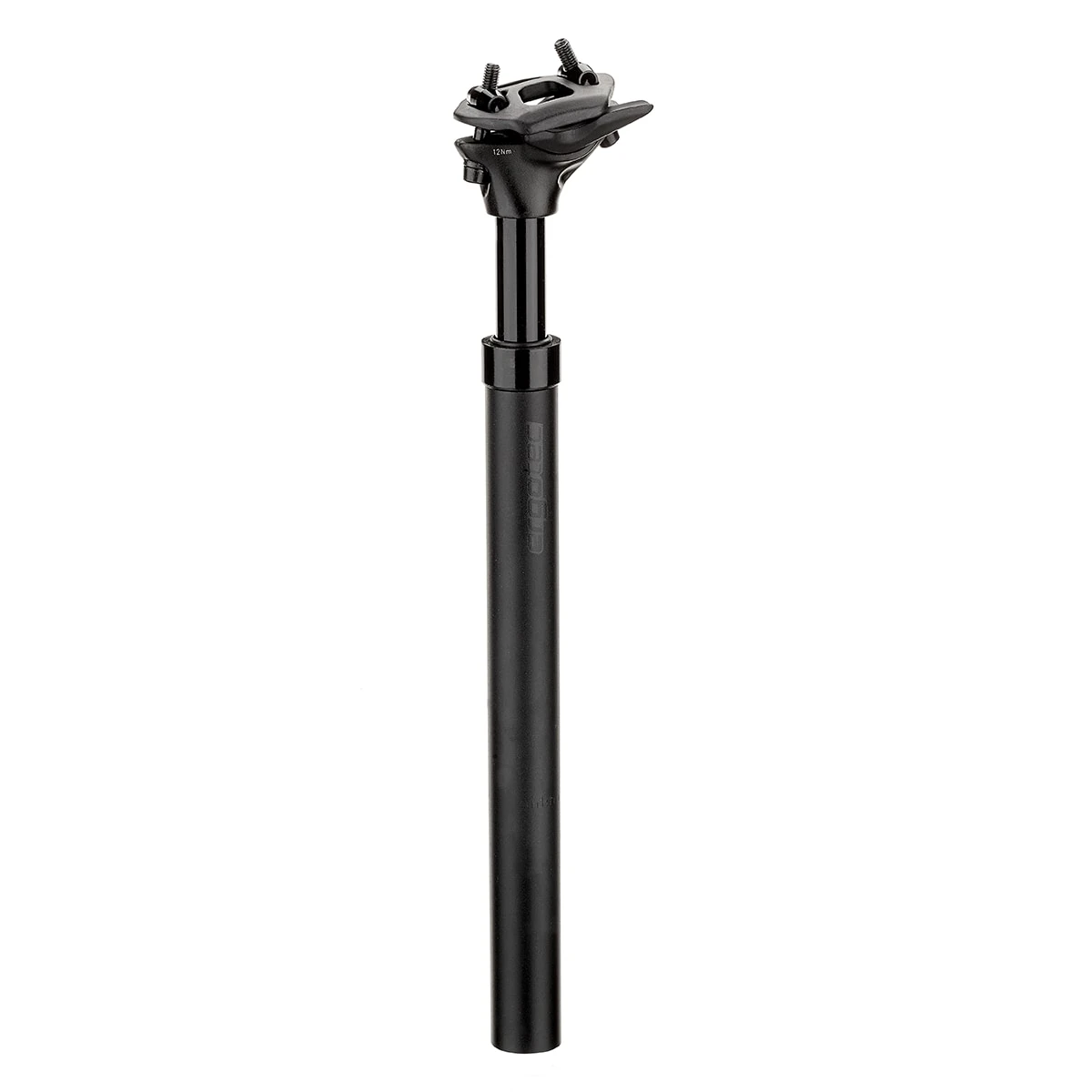

Ergotec SP-10.0 Suspension Seatpost

The ergotec SP-10.0 suspension seat post uses coil springs to offer adjustable suspension characteristics and very good sensitivity. In a discreet look, the seat post with 45 mm travel represents a flexible solution for comfortable rides. On the one hand, you can adjust the pretension via the screw-on end cap in order to regulate the progressive steel spring characteristics curve to suit your preferences. On the other hand, you can easily adjust the damping to the rider’s weight by replacing the spring (product code: 2284622). Based on the combination of perfectly adjusted spring damping and reduced piston friction thanks to low-friction bushings, the telescopic post offers high suspension comfort and a low breakaway torque. Thus, the suspension seatpost quickly responds to the adjusted pressure while reliably guiding the tube for best saddle support.

Details:
• Length: 350 mm
• Offset: 15 mm
• Stack height: 100 mm
• Forged saddle head
• Saddle clamp: for 7 mm rails
• 2-bolt clamp
• Suspension system: elastomer
• Adjustable pretension
• Travel: 45 mm axial
• Rider’s weight: 80-100 kg (Ø 27,2) 70-120 kg (Ø30.9/31.6)
• Safety level 5*
• Material: aluminium 6061 T6
• Weight: approx. 495 g

Attention:
Not suitable for mounting saddles with oval shaped saddle rails.

*The product classification of the ergotec Safety Level complies with the DIN EN ISO 4210 standard for bikes and DIN EN 15194 for e-bikes.
