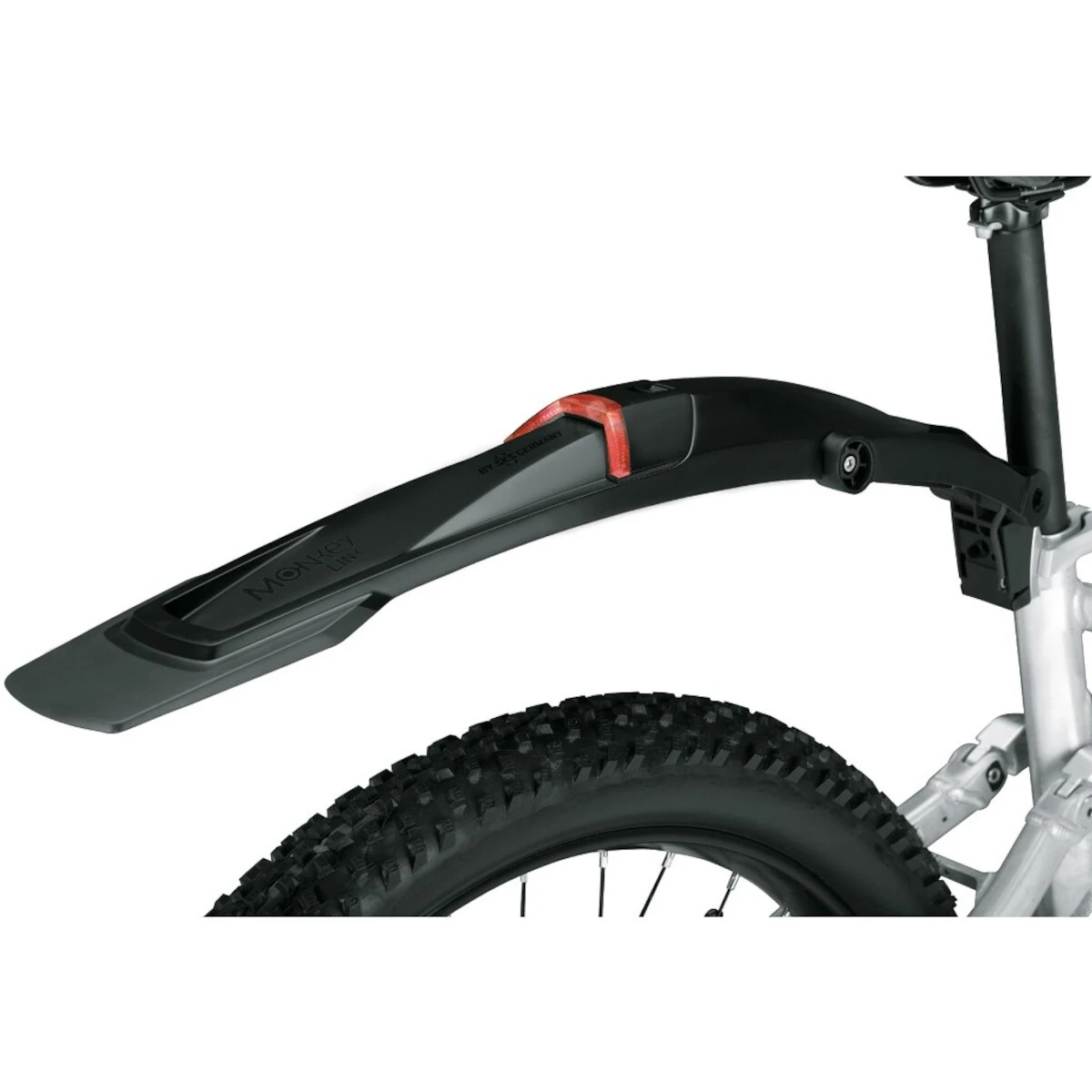

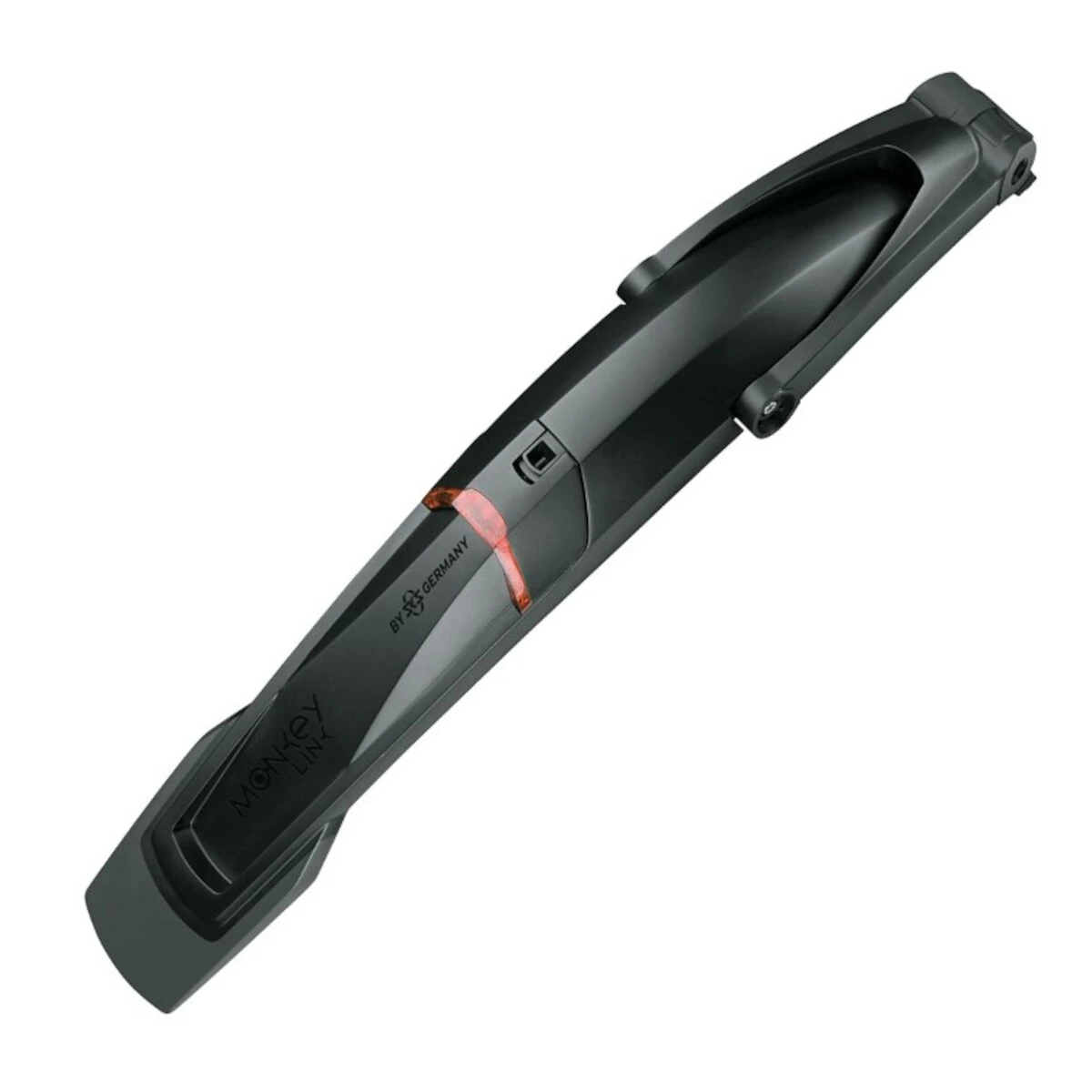

Fender Rear MTB CONNECT E-Bike Mudguard With Rear Light

As a replacement mudguard, you can complete your CONNECT mudguard set with the MonkeyLink MTB Fender or equip your e-mountain bike with a mudguard with lighting for the rear wheel in just a few steps. With the complete MonkeyLink plug-in fender for the pre-equipped ML connection, both wheel protection and rear lighting are securely fastened with just one motion, because the rear light is already integrated.

Every component can easily find its place via the magnetic connection and locks in place, all on its own. The rear light is powered through the separately available Interface Bike CONNECT (see note). This way, you can quickly connect the lighting components to the battery of your e-bike and can control them directly via the e-bike display.

The MonkeyLink fender is suitable for standard mountain bike tyres and can be used on any frame geometry, thanks to variable adjustment options. With the MonkeyLink system, you have all the options for equipping your MTB with splash protection and safety attachments. You have full flexibility to decide whether you want to ride with a fender, lighting or both.

Details:
• MTB fender with integrated rear lighting for the MonkeyLink system for e-bikes / pedelecs limited to a pedal support up to 25 km/h
• Can be easily removed or mounted thanks to the self-locking magnetic system
• Suitable for all common MTB tyre sizes
• Including integrated rear light for connection to e-bike battery (CONNECT)
• StVZO-approved for all types of bikes

The MonkeyLink system allows you to mount bike accessories, such as lights or mudguards, to your bike with a flick of the wrist, thanks to a universal mount. The system is specifically designed for bikes without a power supply (RECHARGE) or e-bikes (CONNECT). Magnetic connectors allow for easy installation. One connection – countless possibilities.

Attention:
As some bike manufacturers fit their bikes with the MonkeyLink system as a standard, the fender set is supplied without fastening material.
For the rear mudguard you need a saddle clamp bracket (prod. code 2268388 or 226838) as well as the system-specific MonkeyLink Interface Bike CONNECT one4all for Brose, SHIMANO/Suntour or Bosch (prod. code 2328415), which is screwed into the bracket.

A complete MTB CONNECT mudguard set for the front and rear wheel of your E-MTB is available with prod. code 2268358.

Technical details Mudguard:
• Material: plastic
• Compatible tyre sizes: 26“, 27.5“, 28“, 29“
• Compatible tyre width: max. 3”
• Mudguard length: approx. 684 mm
• Weight: approx. 490 g (incl. rear light)

Rear light technical details:
• Material: plastic
• Installation: MonkeyLink mount
• Power supply: from 6 to 12 volts (DC, suitable for e-bikes*)
• Lamp: LED
• Lateral beam angle: approx. 220°
• Light modes: 1 (permanent light)
• Protection rating: IPX4 (protection against spray water from all sides)
• Dimensions: approx. 80 mm x 86 mm x 26 mm
• Weight: approx. 44 g

In the box:
• 1 MonkeyLink Fender Rear MTB CONNECT mudguard with rear light

*Attention:
The rear light is compatible with a direct current power source (DC) of 6 to 12 volts.
For the exact voltage supply of your e-bike lighting system, please check beforehand with the respective manufacturer. A system-specific connection plug is required for the Bike CONNECT one4all interface.

NOT suitable for dynamo!
NOT approved for e-bikes with a speed above 25 km/h or speed pedelecs!

Tip:
If you want to ride at night without fenders, you can simply insert a MonkeyLink Sport CONNECT rear light for e-bikes into the ML saddle clamp instead (such as prod. code 2278652).
