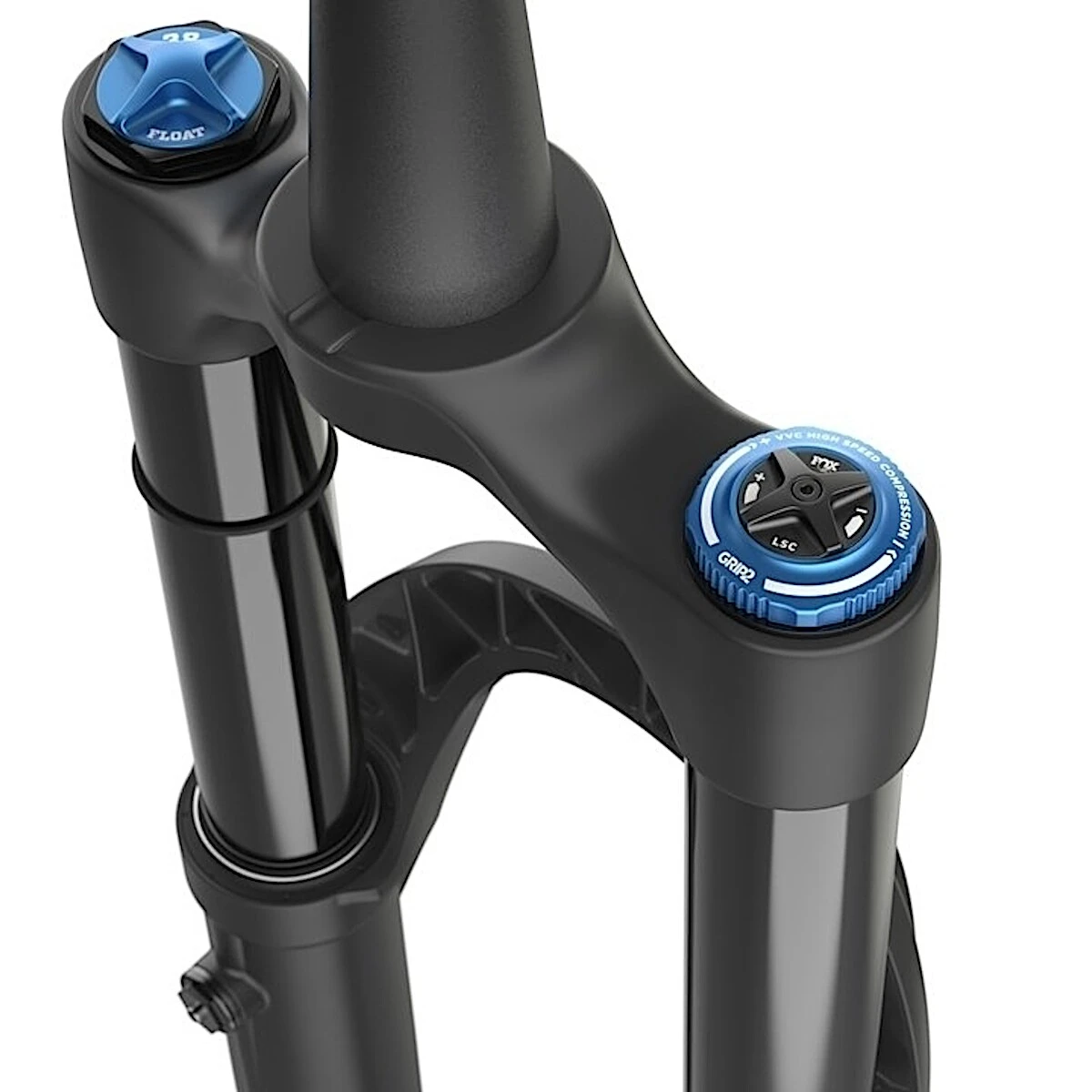

Fox 36 Performance Elite 2022 Float GRIP2 BOOST 160 Mm MTB Suspension Fork 29″

Since its launch in 2005, the 36 Factory has been the reliable workhorse of FOX for the toughest trails in the world. With the introduction of the FOX 38 in 2021, the US suspension specialists slightly revised their in-house classification and “downgraded” the 36 to an All-Mountain fork. Since the understanding of All-Mountain and Enduro is quite different in the USA than it is here, this does not mean it is less powerful – on the contrary!

With a revised design on the outside and technical advances on the inside, the 2022 FOX 36 Performance Elite impresses with the same fantastic GRIP2 damping as the Factory series forks – resulting in the same outstanding combination of uncompromising performance, perfect tunability, high stiffness and low weight. Only the Performance Elite series does not have the elegant Kashima coating and instead comes with classic black anodised upper tubes.
So you’ll have a little less bling-bling, but a bit more understatement…

Details:
• Performance Elite model
• GRIP2 damping cartridge with VVC (Variable Valve Control) and the HSC and HSR adjustment range reduced to eight clicks
• Updated fork casting for optimised stiffness with low weight
• Jutting, rounded lower leg arch to provide more space between arch and head tube
• Lower Leg Bleeders: valves for bleeding the lower tubes (pressure equalization)
• Lower Leg Channels: air or oil ducts to reduce the internal pressure and to improve
the lubrication of the upper bushings and foam rings
• Floating thru axle
• Float EVOL air spring (spring rate can be adjusted with volume spacers)
• Brake disc compatibility up to max. Ø 230 mm

Technical details:
• Intended use: Trail, All-Mountain, Enduro
• Material: aluminium (fork crown/upper tubes), magnesium (lower tubes)
• Coating (upper tubes): anodised (black)
• Wheel size: 29″
• Steerer: tapered 1 1/8″ – 1.5″ (aluminium, threadless, approx. 263 mm)
• Travel: 160 mm
• Upper tube Ø: 36 mm
• Suspension: Float EVOL
• Damping: closed GRIP2 cartridge
• Adjustments: air pressure, external high- and low-speed rebound, external high- and low-speed compression
• Remote: no
• Disc brake mount: PostMount 7″ (180 mm Direct Mount)
• Max. brake disc Ø: 230 mm
• Fork length: 571 mm
• Offset: 44 mm
• Front hub spacing: 15 x 110 mm (Boost)
• Weight: approx. 1965 g

In the box:
• 1 FOX 36 Performance Elite suspension fork incl. manual and
• 1 QR thru axle
• 1 (brake) hose guide
• 1 Ahead star nut
• 3 volume spacers

Attention:
Maximum tyre size 29“ x 2.6″ (when using tyres larger than 2.4”, you should check the tyre clearance with the fork fully compressed. There should be a distance of at least 6 mm to the fork crown.)
