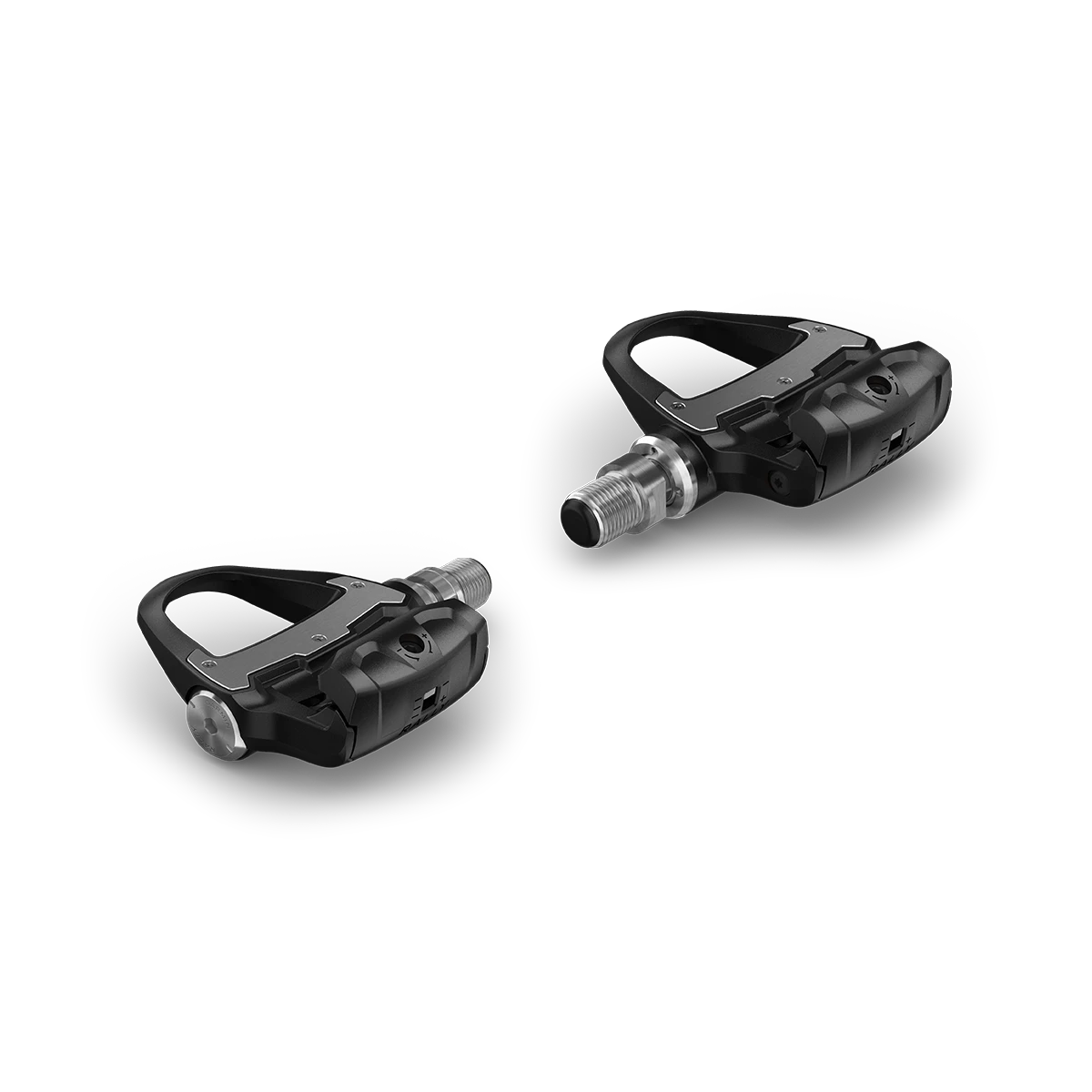

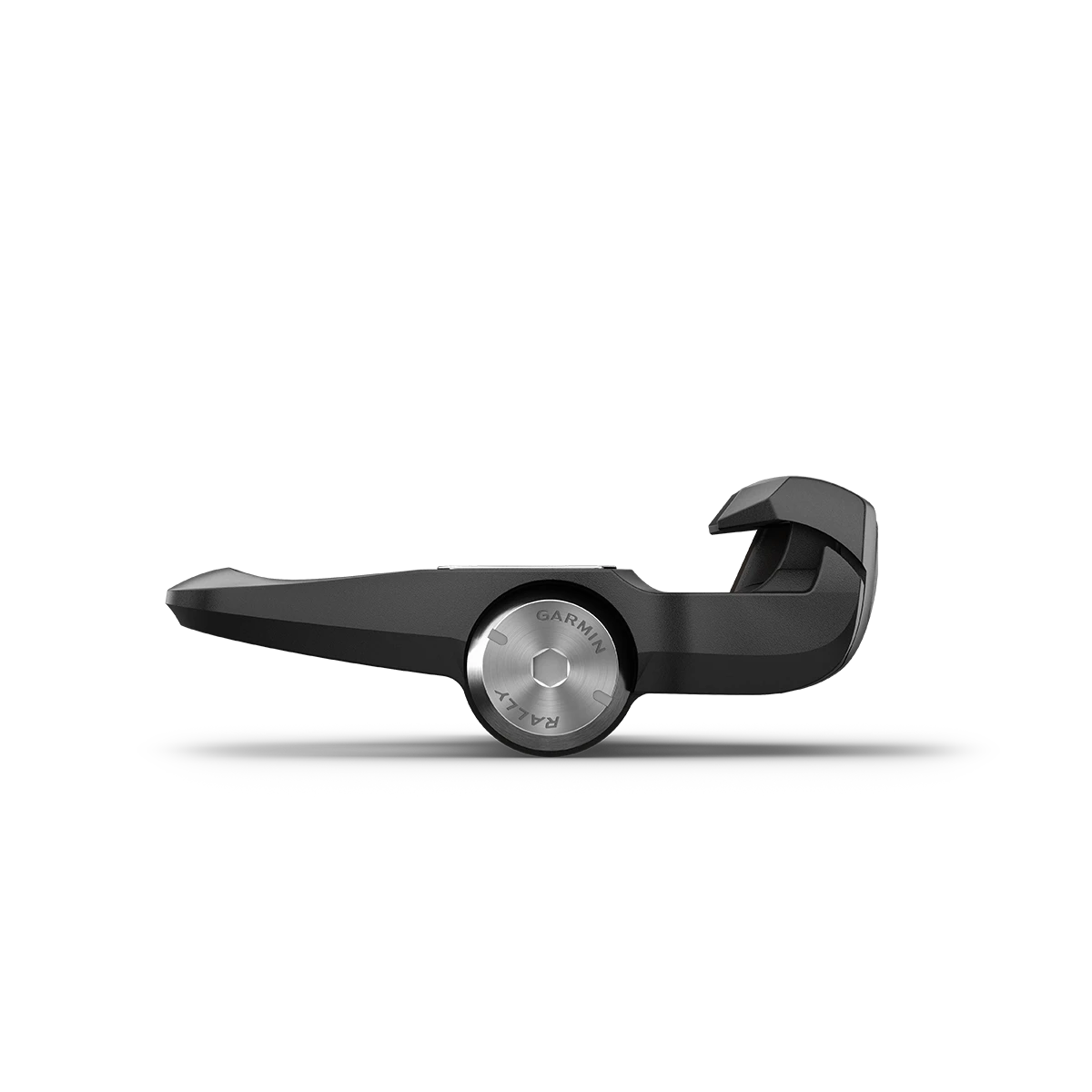

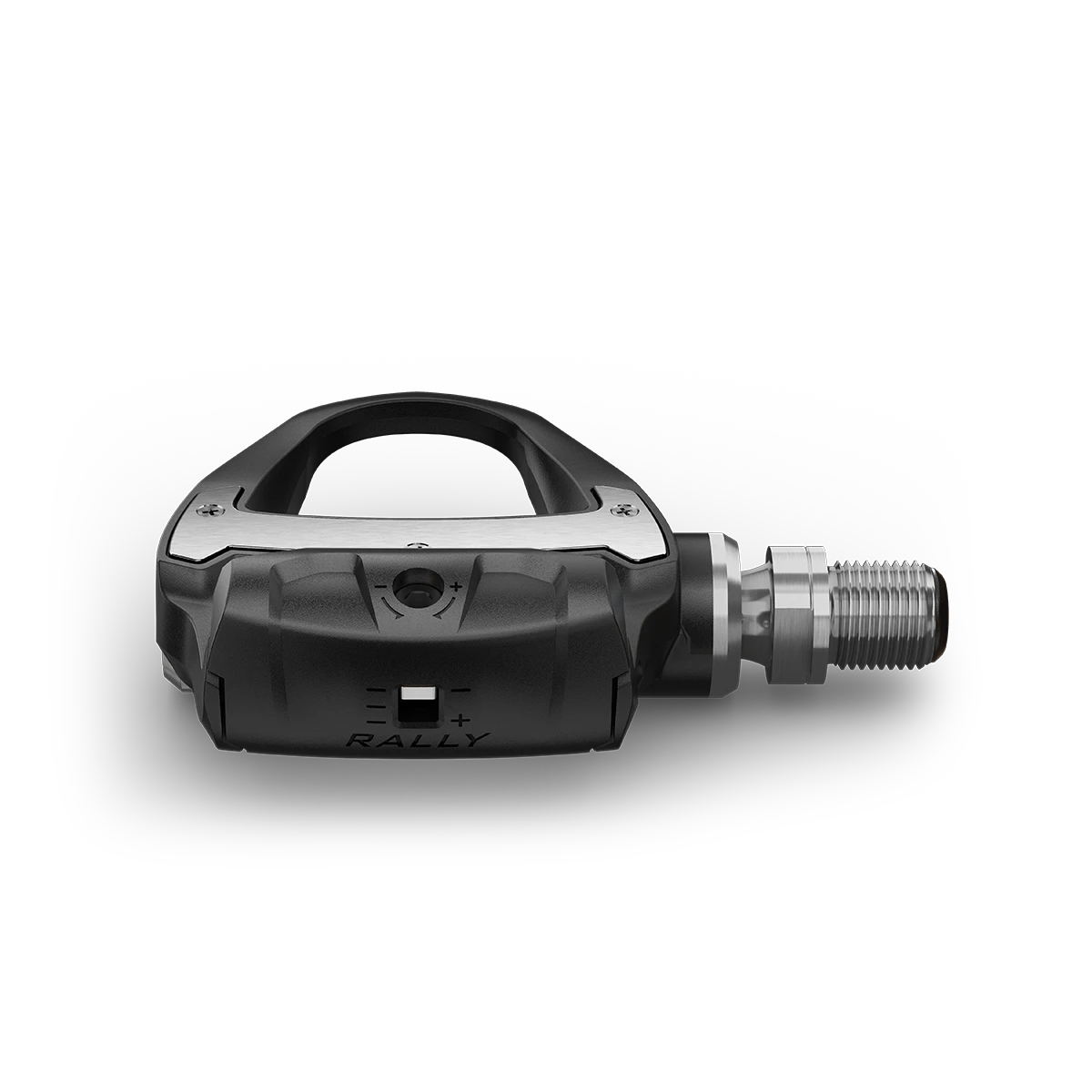

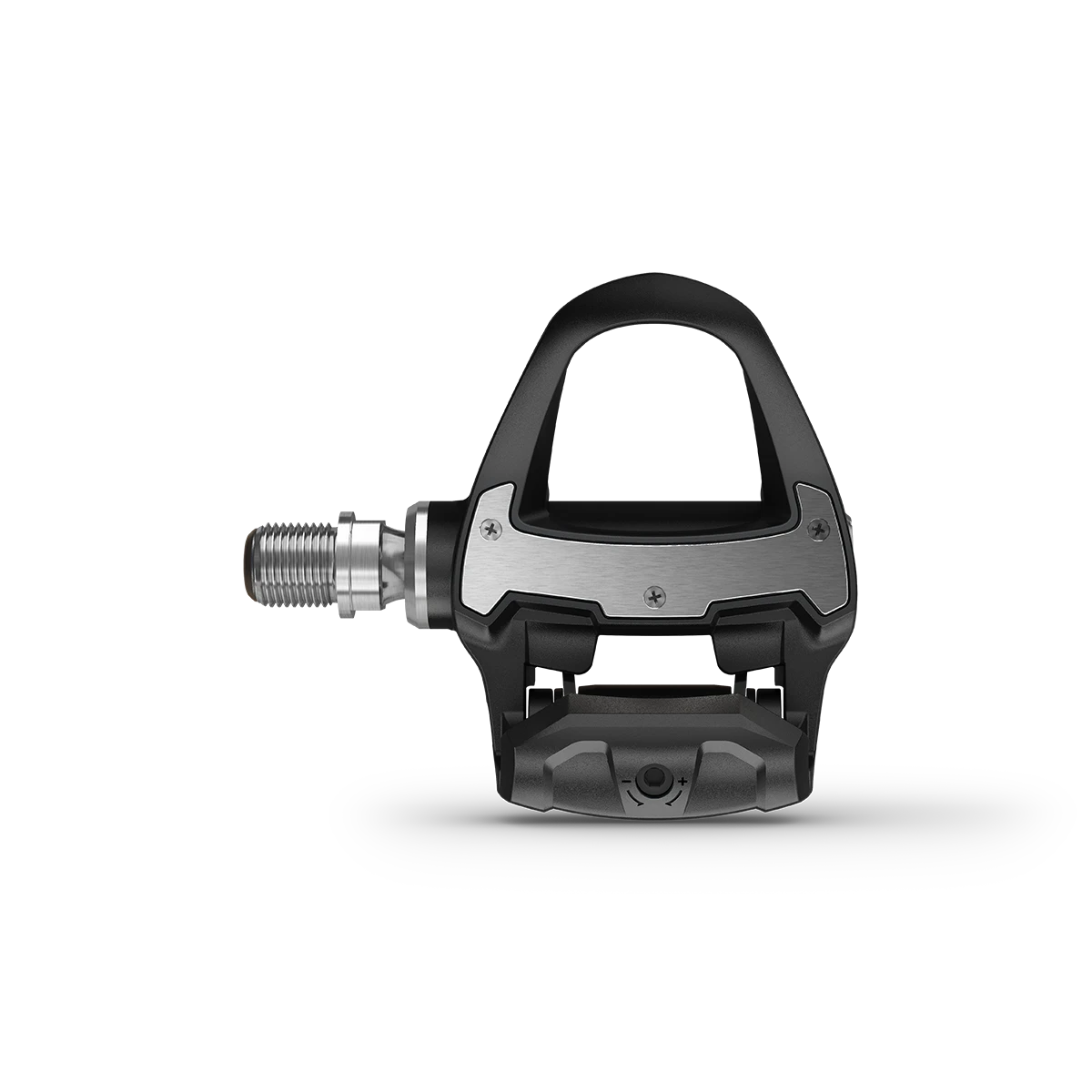

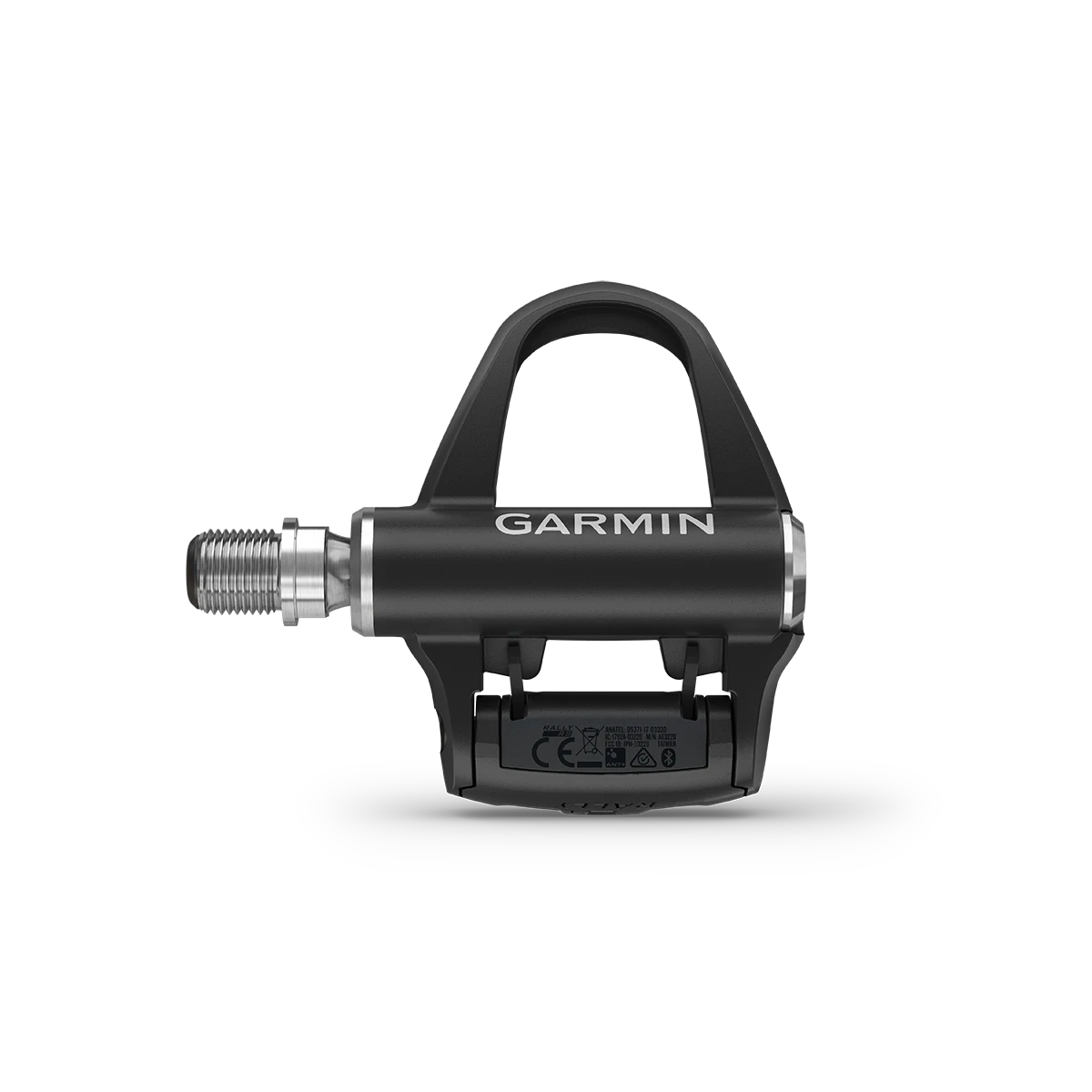

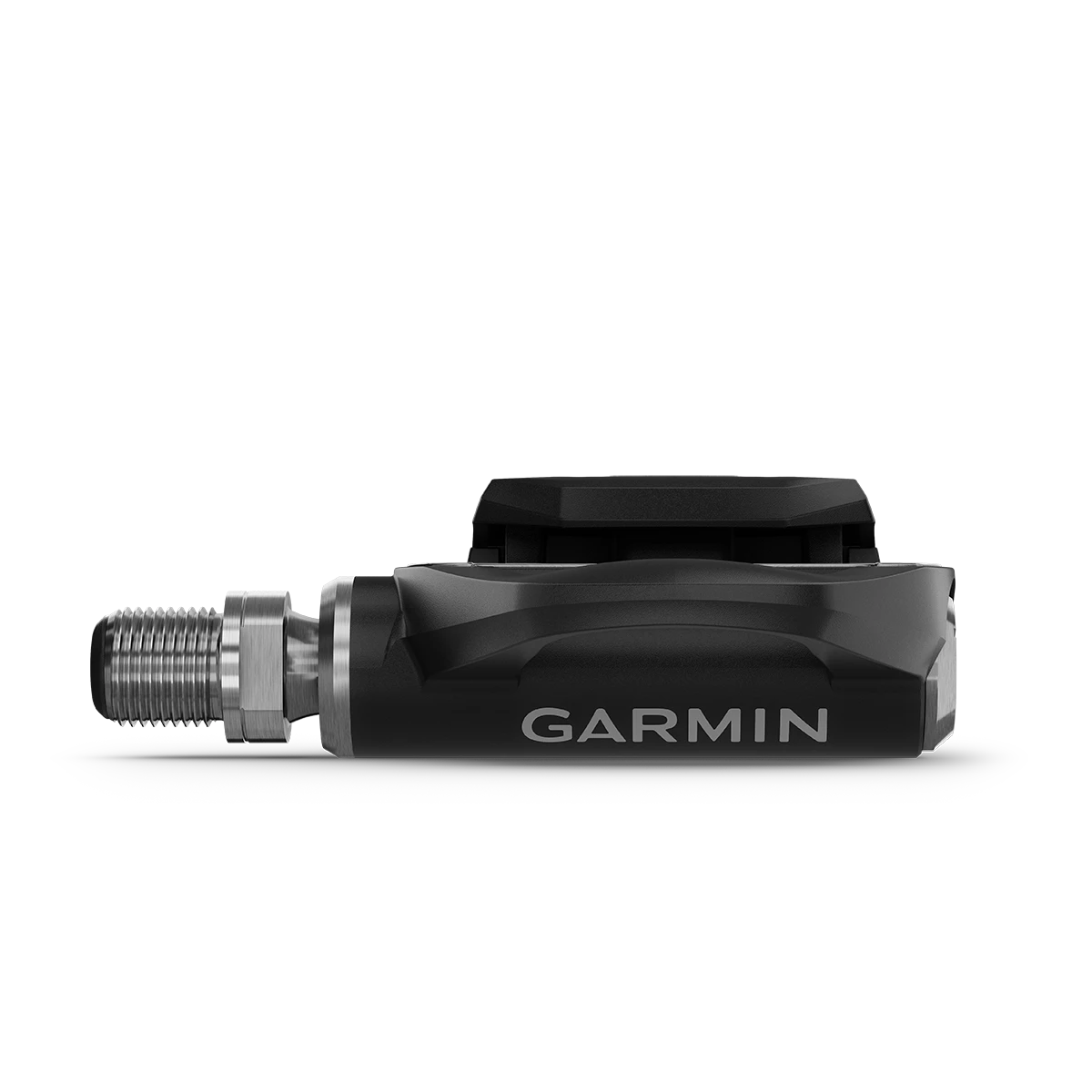

Garmin Rally™ RS200 Dual-Sensing Pedal Watt Measuring System For SHIMANO SPD-SL

One system, three platforms, countless possibilities!
The GARMIN Rally™ wattmeter pedal system makes watt-based power measurement more flexible and straightforward than ever. Whether Road, Gravel or MTB: With three available Rally™ platforms for SHIMANO SPD-SL, LOOK KéO or SHIMANO SPD, every ambitious cyclist can now find the right powermeter pedal for them. You decide with which platform and cleats you want to ride. It’s also easy to swap out thanks to separately available pedal bodies. So you can use different click systems on different bikes with only one pair of spindles and benefit from all measurement and analysis functions that the GARMIN Ecosystem has to offer, both onroad and offroad.

As with its predecessor Vector™ 3 (whose pedal axle is also adaptable to the Rally™ system), GARMIN again relies on a user-friendly “Plug & Play” concept: Simply screw the pedals onto the crank arms, pair them via ANT+ or Bluetooth with your compatible bike computer or GARMIN Connect™ on your smartphone, enter the crank length and after a short calibration you are ready to go. The measurement takes place directly at the pedal spindle – several hundred times per second.

The pedal bodies already attached to the GARMIN Rally™ RS200 are based on the SHIMANO SPD-SL platform and can be used with the matching cleats from GARMIN or SHIMANO on bike shoes with a 3-hole standard. In contrast to the RS100 (prod. code 2314167), sensors for watt measurement are installed on both pedal spindles in order to be able to evaluate the pedalling power for the left and right pedals independently of each other. This gives you access to the full range of functions of the GARMIN Cycling Dynamics – in addition to power and cadence values, this also includes detailed analyses of the left and right wattage distribution, your power zones over the course of the crank revolution, sitting and standing phases as well as where power is applied along the pedal spindle.

Whatever goals you wish to reach: The GARMIN Rally™ RS200 wattmeter pedals support you with comprehensive data for each of your activities. Track the progress of your training performance, analyse and optimise your pedal stroke, get realistic values for your virtual indoor training, and use performance indicators like your FTP value to get to most out of yourself during the race! Experience the new flexibility of watt measurement – experience GARMIN Rally™!

A system for every terrain!

• PLUG & PLAY: The Rally™ pedals are mounted like ordinary pedals and require minimal configurations. So you can start training straight away and easily switch between different bikes or take your power meter pedals with you on a biking holiday.
• SHIMANO SPD-SL PLATFORM: The GARMIN RS200 pedals are based on the SHIMANO SPD-SL standard to offer you the best possible performance on your road bikes with a click system you are already familiar with.
• INTERCHANGEABLE PEDAL BODY: With the separately available replacement pedal bodies for LOOK KéO or SHIMANO SPD, you can use these sensor-equipped pedal spindles with other click systems – from road bikes to gravel bikes or cyclocrossers to mountain bikes.
• SLIM DESIGN: Flat pedal bodies with integrated battery housing ensure not only a low weight but also a low stack height for better ergonomics – an advantage on any terrain.
• LOW ENERGY CONSUMPTION: With a battery life of up to 120 hours, you always have enough reserves, even for an entire cycling vacation. For longer adventures, you can use the compatible CR1/3N and LR44/SR44 button cells for spare batteries.

All values at a glance!

• ADVANCED PERFORMANCE ANALYSIS: The Rally™ RS200 pedals are equipped with sensors on both sides and provide you with precisely measured values for wattage and cadence, with measurement tolerances of only +/- 1 %. In addition, thanks to the GARMIN Cycling Dynamics, you benefit from advanced analysis options for pedalling consistency, power phases and more.
• MAXIMUM CONNECTIVITY: You can connect your Rally™ pedals to compatible GARMIN watches, Edge® bike computers or the Connect™ app on your smartphone via ANT+® or Bluetooth®. This way you can always keep an eye on your training data. The measured values for power and cadence can also be displayed on many third-party devices.
• GARMIN CONNECT™: Your Rally™ wattmeter pedals are fully integrated with the GARMIN ecosystem. This allows you to merge your training data and quickly update software and system settings via GARMIN Connect™. In addition, you can share your training data directly with third-party platforms such as Strava, TrainingPeaks or TrainerRoad. Analyse your performance every day after training, use free training plans, plan routes via the map display and share your activities with other users.

Performance analysis at the highest level!

• WATT AND CADENCE VALUES: The Rally™ system continuously measures your wattage and cadence and sends the data separately for each pedal to your end device, where it is clearly displayed through various values.
• PP – Power Phase: Indicates in degrees at which crank position the positive drive force begins and ends, when you apply the most force and which leg provides which wattage (as a percentage and real value).
• PCO – Platform Centre Offset: Measures the horizontal force distribution on the pedal (deviating from the pedal centre in “+” and “-“) and thus provides information about the effects of the seating position and the alignment of the cleats on riding technique and power transmission.
• Sitting/standing position: Comparison of the riding time in a sitting or standing position.
• Torque Effectiveness: Torque effectiveness is a percentage measurement that represents the ratio of positive to negative force application (e.g. by the weight of the foot in passive upward motion) individually for each pedal.
• Pedal Smoothness: A percentage value that reflects, individually for each pedal, the evenness of the step over the course of the pedal rotation. A constant wattage over 360° would result in a value of 100 %.
• FTP – Functional Threshold Power™: FTP indicates the calculated wattage at which you can ride consistently for 1 hour without a significant drop in performance (threshold power).
• NP – Normalized Power™: NP is an additional average watt value that also takes into account changes in resistance and power peaks to provide more realistic comparative values for the effort expended during a training session.
• IF – Intensity Factor™: The intensity factor indicates the intensity of a unit in relation to one’s own performance. (IF = NP/FTP)
• TSS – Training Stress Score™: TSS indicates the “objective” load of an activity, which also takes into account its duration.

Attention:
The measured values that can be displayed vary depending on the device being used. See manufacturer’s instructions! Torque Effectiveness and Pedal Smoothness are only available with ANT+ data transmission. More information at www.garmin.com.

Details:
• Road bike click pedal system for watt and cadence measurement
• Easy to install and use with “Plug & Play” concept
• Separate wattage measurement via sensors on both pedal axles (can be displayed individually and combined)
• Compatible with GARMIN RS and SHIMANO SPD-SL cleats
• Interchangeable pedal bodies (separate pedal bodies available for SHIMANO SPD and LOOK KéO)
• Can be paired via ANT+ and Bluetooth with compatible bike computers, sports watches or smartphones with GARMIN Connect™ app
• Status LED to indicate assembly and maintenance information as well as low battery level
• Automatic temperature compensation for exact wattage values in all environments
• Adjustable release tension of the shoe
• Flat design with integrated battery housing
• Durable stainless steel pedal areas for optimal power transmission

Technical details:
• Material: plastic composite material (pedal body); stainless steel (pedal spindle, platform)
• Compatible cleats: GARMIN Rally™ RS / SHIMANO SPD-SL
• Intended use: Road bike, Triathlon
• Power measurement: dual-sensing
• Cadence measurement: yes
• Cycling Dynamics: yes
• Calibration: yes
• Measuring tolerance: +/- 1 %
• Interfaces: ANT+ and Bluetooth Smart (BLE)
• Firmware updates: Yes (via GARMIN Connect™)*
• Battery life: up to 120 hours (via replaceable button cells)
• Battery type: 2 x CR1/3N or 4 x LR44/SR44
• Q factor: 53 mm (55 mm with washer)
• Stack height: 12.2 mm
• Max. rider weight: up to 105 kg
• Weight: approx. 320 g / pair

Attention:
* Smartphone compatibility of the Garmin Connect™ app (system requirements): http://www.garmin.com/en-GB/ble

In the box:
• 1 pair of GARMIN Rally™ RS 200 pedals incl. CR1/3N batteries
• 1 pair of GARMIN Rally™ RK cleats, 4.5° freedom of movement, red, incl. mounting material
• 2 washers, each 2 mm
• 2 replacement gaskets for battery compartment cover
• 1 quick start manual

Optional accessories:
• GARMIN Rally™ RS cleats, 4.5° freedom of movement (prod. code 2315532)
• GARMIN Rally™ XC pedal body replacement kit for SHIMANO SPD (prod. code 2315530)
• GARMIN Rally™ RK pedal body replacement kit for LOOK KéO (prod. code 2315527)

Further Rally™ Starter Sets:
• GARMIN Rally™ RS100 single-sensing wattmeter pedals for SHIMANO SPD-SL (prod. code 2314167)
• GARMIN Rally™ RK200 dual-sensing wattmeter pedals for LOOK KéO (prod. code 2314165)
• GARMIN Rally™ RK100 single-sensing wattmeter pedals for LOOK KéO (prod. code 2314164)
• GARMIN Rally™ XC200 dual-sensing wattmeter pedals for SHIMANO SPD (prod. code 2314171)
• GARMIN Rally™ XC100 single-sensing wattmeter pedals for SHIMANO SPD (prod. code 2314169)
