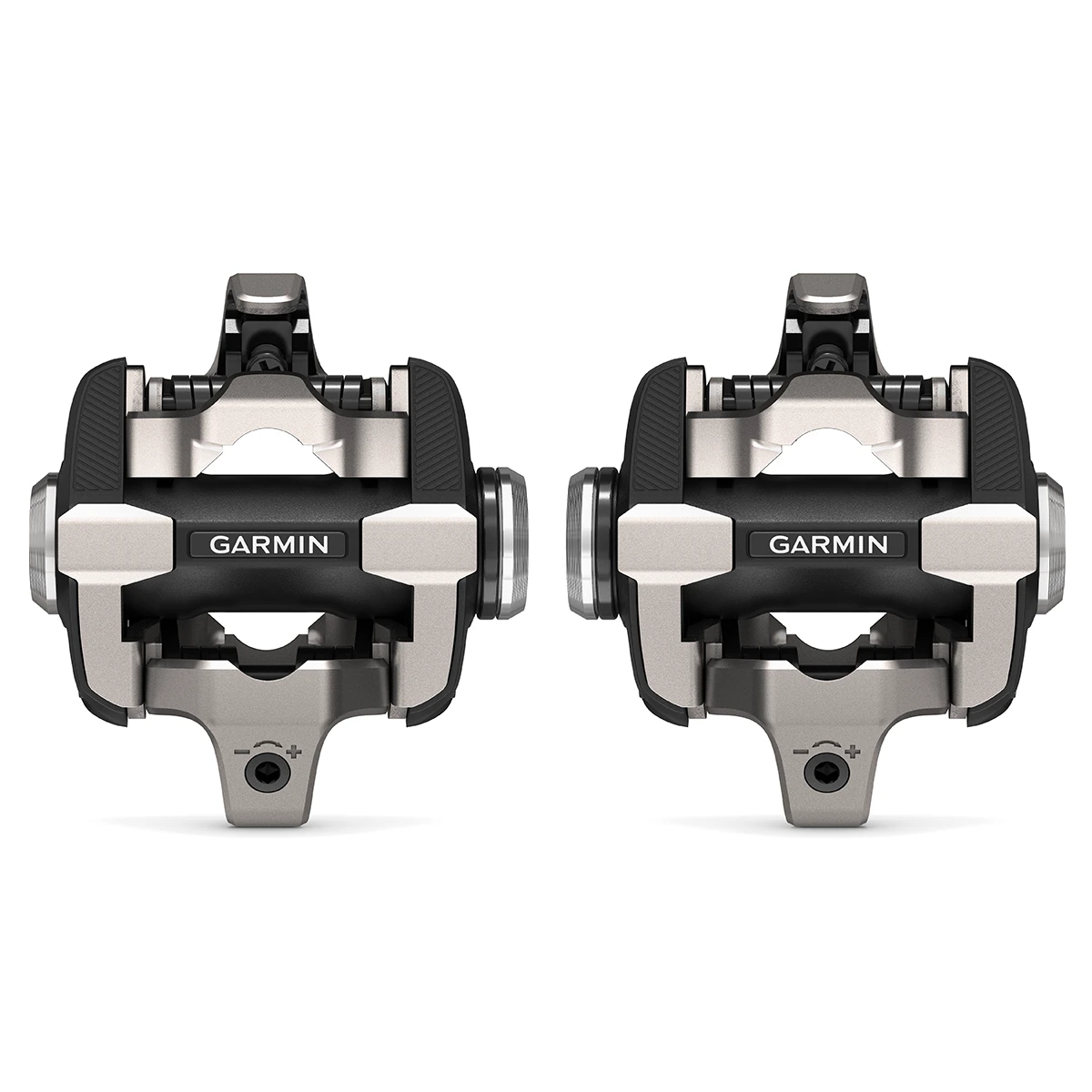

Garmin Rally™ XC Pedal Body Replacement Kit For SHIMANO SPD

Expand your possibilities – with the interchangeable pedal bodies for the GARMIN Rally™ wattmeter pedal system!

Already own a set of Rally™ pedals and want to use them with another platform? The GARMIN Rally™ XC pedal body replacement kit makes the switch to the SHIMANO SPD system possible in just a few steps. Since the modular Rally™ system measures wattage via sensors on the pedal spindle, you can use just one spindle pair and various pedal replacement kits with up to three different click systems. This way you can benefit from the advantages of power and cadence measurement on all your bikes – from road bikes to MTBs – and save money compared to multiple pedal sets.

Experience the new flexibility of watt measurement – experience GARMIN Rally™!

Details:
• Interchangeable pedal body for the modular GARMIN Rally™ wattmeter pedal system
• Compatible with GARMIN XC and SHIMANO SPD cleats (2-hole standard cycling shoes required)
• Mounted on existing Rally™ pedal spindles (available as part of starter sets, see below)
• Suitable for Rally™ 100/200 series (single-sensing/dual-sensing power measurement)
• Adjustable release tension of the shoe
• Durable stainless steel pedal areas for optimal power transmission

Technical details:
• Material: plastic composite material (pedal body); stainless steel (pedal platform)
• Compatible cleats: GARMIN Rally™ XC / SHIMANO SPD
• Compatible pedal spindles: GARMIN Rally™ 100/200 Series, GARMIN Vector™ 3
• Intended use: MTB, ATB, Gravel, Cyclocross
• Q factor: 53 mm (55 mm with washer)
• Stack height: 13.5 mm)
• Max. rider weight: up to 105 kg
• Weight incl. pedal spindle (dual-sensing watt measurement): approx. 444 g / pair
• Weight incl. pedal spindle (single-sensing watt measurement): approx. 451 g / pair

In the box:
• 1 pair of GARMIN Rally™ XC pedal bodies for SHIMANO SPD
• 2 washers, each 2 mm (for 55 mm Q-factor)
• 2 battery covers
• Replacement gaskets
Attention:
Pedal spindles are NOT included in the scope of delivery!

Tip:
The pedal axle of the GARMIN Vector™ 3 pedals is compatible with the GARMIN Rally™ system!
This way, an existing Vector™ 3 can also be updated with the various GARMIN Rally™ pedal body exchange kits and/or converted to another click system (e.g. SHIMANO SPD SL / SPD).

Optional accessories:
• GARMIN Rally™ XC cleats (prod. code 2315545)

Other Rally™ pedal bodies:
• GARMIN Rally™ RS pedal body replacement kit for SHIMANO SPD-SL (prod. code 2315528)
• GARMIN Rally™ RK pedal body replacement kit for LOOK KéO (prod. code 2315527)

Compatible Rally™ Starter Sets:
• GARMIN Rally™ RS200 dual-sensing wattmeter pedals for SHIMANO SPD-SL (prod. code 2314168)
• GARMIN Rally™ RS100 single-sensing wattmeter pedals for SHIMANO SPD-SL (prod. code 2314167)
• GARMIN Rally™ RK200 dual-sensing wattmeter pedals for LOOK KéO (prod. code 2314165)
• GARMIN Rally™ RK100 single-sensing wattmeter pedals for LOOK KéO (prod. code 2314164)
