IBEX 28 Cargo Bike Trailer With BOB BAG

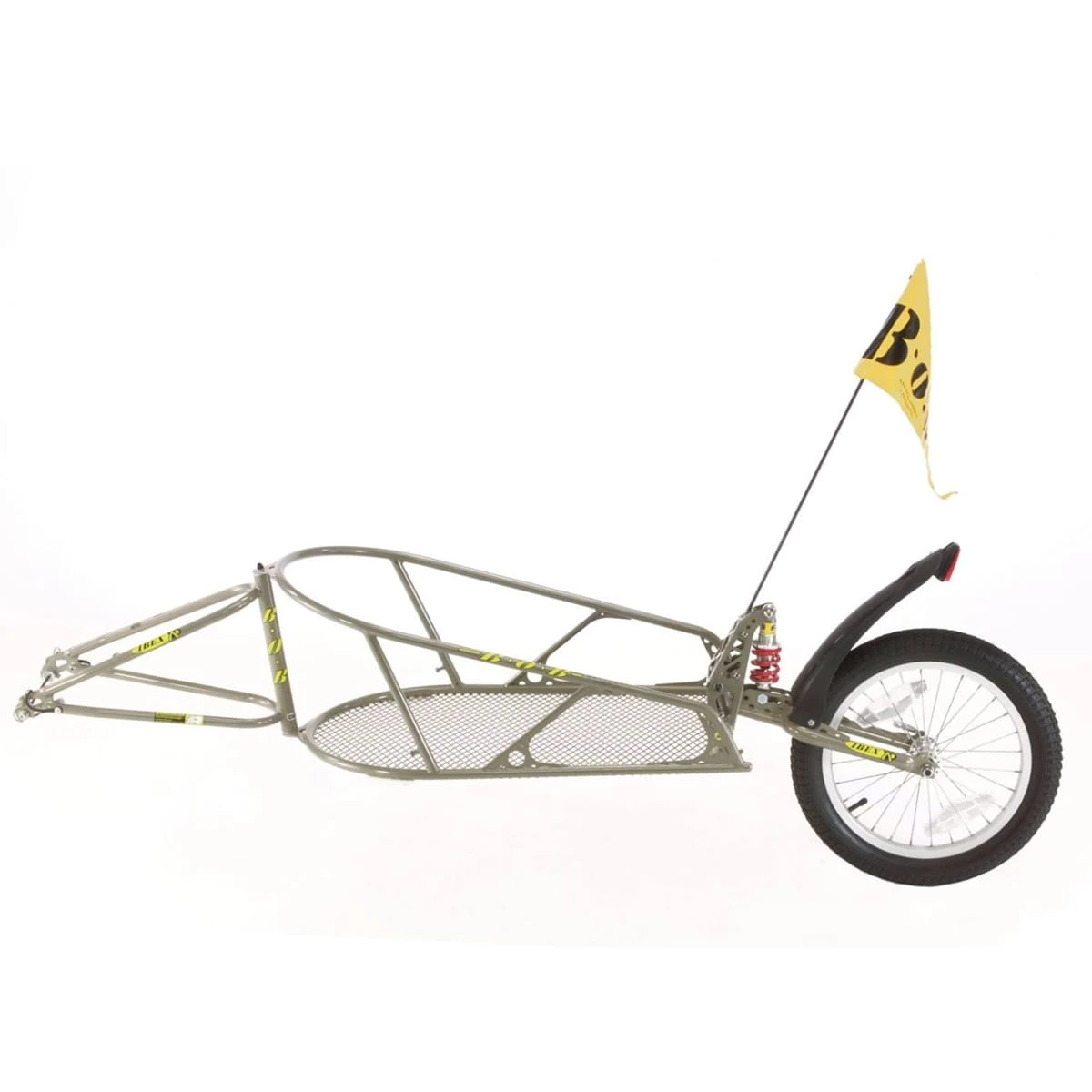

The BOB IBEX is a bicycle trailer for big adventures and errands.

The single-track cargo bike trailer is extremely stable and smooth-running, as well as particularly suitable for off-road use thanks to the integrated suspension element. The suspension can be easily adjusted to your load and offers a spring travel of approx. 7.6 cm. This means that you can also use the bicycle trailer while off the beaten track. The BOB can carry up to 32 kg of luggage for you over hill and dale. With its 62 × 40 cm load area, it offers enough space for travel luggage, the week’s shopping and even crates of drinks.

Attaching the cargo trailer to your bike is quick and easy. Simply replace your original quick release with the included BOB quick release and attach the BOB IBEX to its special mountings – then you’re ready to go. For bicycles with thru axles or solid axles, corresponding adapter solutions are available separately.

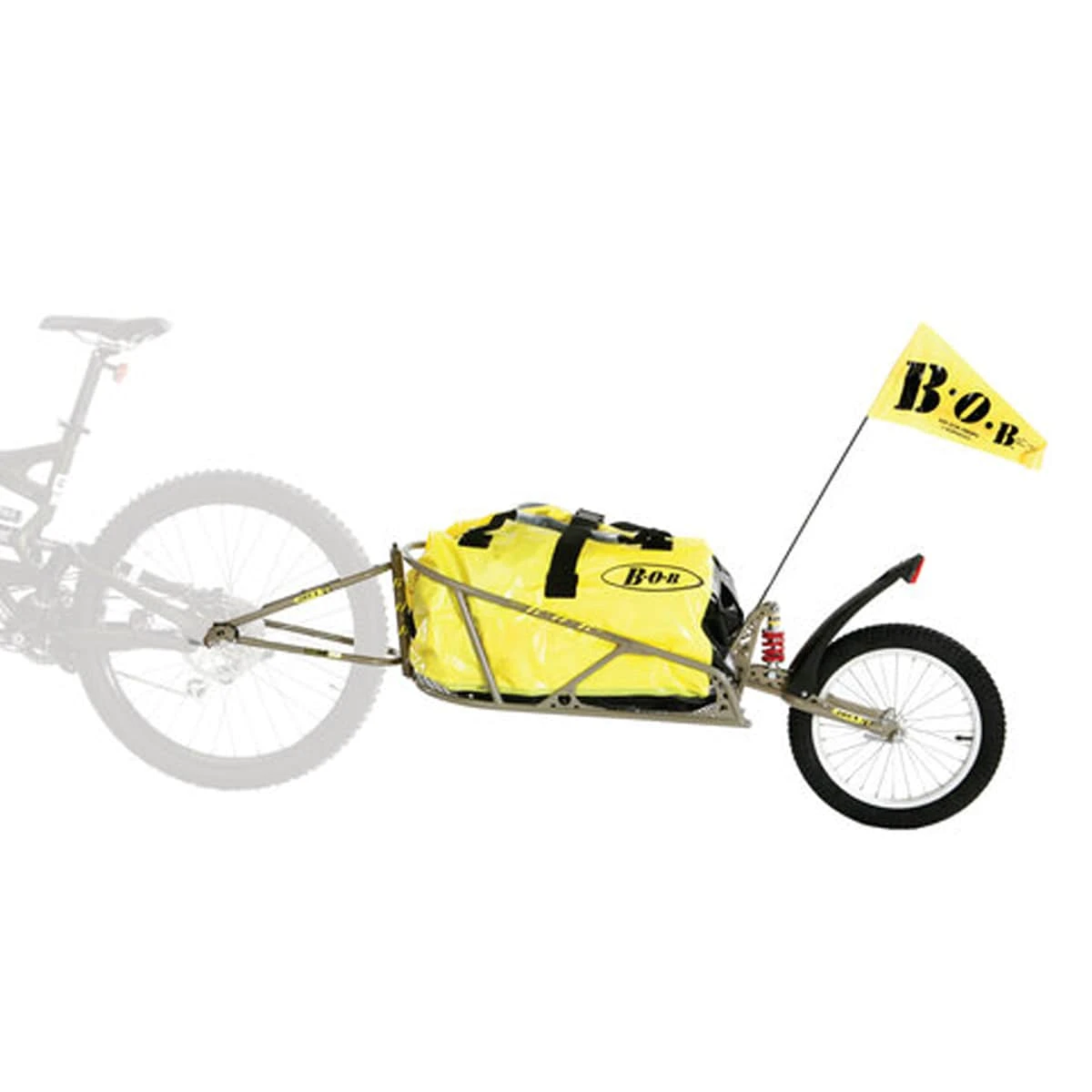

The included BOB BAG offers you 94 litres of capacity. The waterproof dry bag protects your stuff from rain, dust and sunlight and fits perfectly in your IBEX.
The BOB IBEX fits all compatible bikes with 28 or 29 inch wheels.

Details:
• Robust single-wheel bicycle trailer for loads and luggage

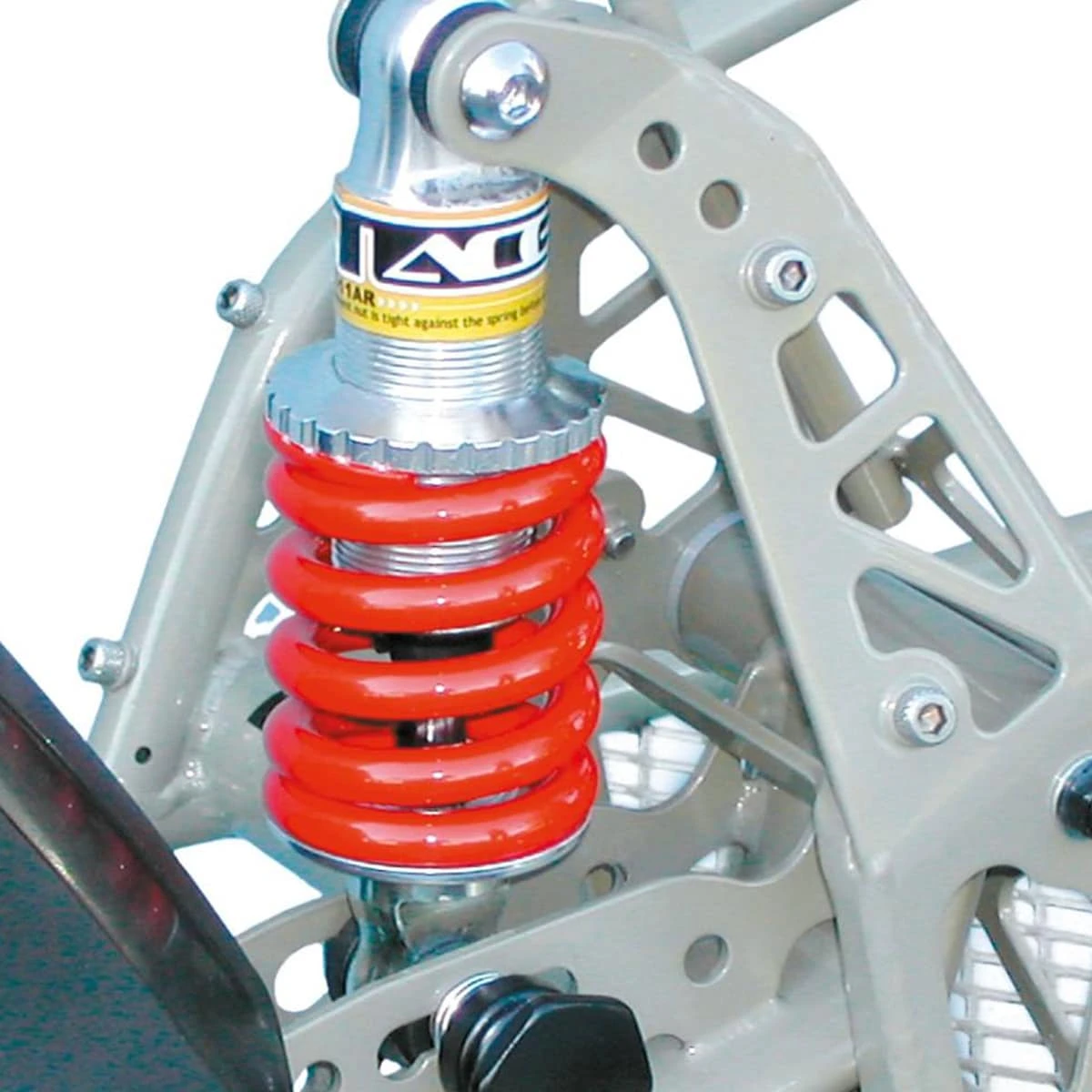

• Adjustable shock absorber for comfortable riding with suspension
• Ideally suited for bicycle travel and everyday life
• Suitable for bicycles with 28” or 29” wheels, with quick-release hubs and solid axles (adapters for thru axles and solid axles optionally available as accessories)
• Very stable steel frame construction
• Low centre of gravity for low riding impact
• Four receptacles for bottle cages
• Easy to connect or disconnect
• 94 l large, waterproof BOB BAG pannier bag included in delivery
• Including splash guard, pennant and reflectors
• Comes with all-terrain 16 inch pneumatic tyre for comfort and smooth running

Technical details:
• Intended use: City, Trekking, Road, Gravel, MTB
• Frame material: chrome-molybdenum steel
• Maximum load: 32 kg
• Interior dimensions: approx. 62 × 40 cm
• Wheel: 16 inch spoke wheel
• Weight: approx. 7.7 kg

Compatibility BOB 140 mm special quick release:
• Bicycle inner dropout dimensions: 126.5 to 140 mm
• Bicycle outer dropout dimensions: 140 to 156 mm

Attention:
If the frame installation dimensions are less than 135 mm, the supplied quick release may have to be shortened by a few millimetres, which requires appropriate tools and expertise.

Compatibility BOB 28 drawbar:
• Wheel sizes: 28″, 29″

Attention:
The length of the drawbar is 420 mm, so that 28″ wheels can usually also be equipped with full mudguards and reflectors.

In the box:
• 1 BOB IBEX 28 bicycle cargo trailer
• 1 BOB BAG transport bag
• 1 BOB QR special quick release up to 140 mm
• 1 removable splash guard
• 1 detachable pennant
• 1 tension strap
• 2 spoke reflectors
• 1 rear reflector

Optional accessories:
• BOB NUTZ special mount for solid axles with 3/8″ x 26 TPI thread (prod. code: 2317652)
• BOB thru axle coupling 12×142 mm (prod. code: 2317651)

ATTENTION:
The BOB IBEX cargo trailer should NOT be used to transport children or animals.
Before using the cargo trailer, it is essential to check whether the towing bicycle is suitable for trailer operation, the bicycle frame geometry allows safe attachment of the BOB QR skewer, and that the QR skewer is long enough.
