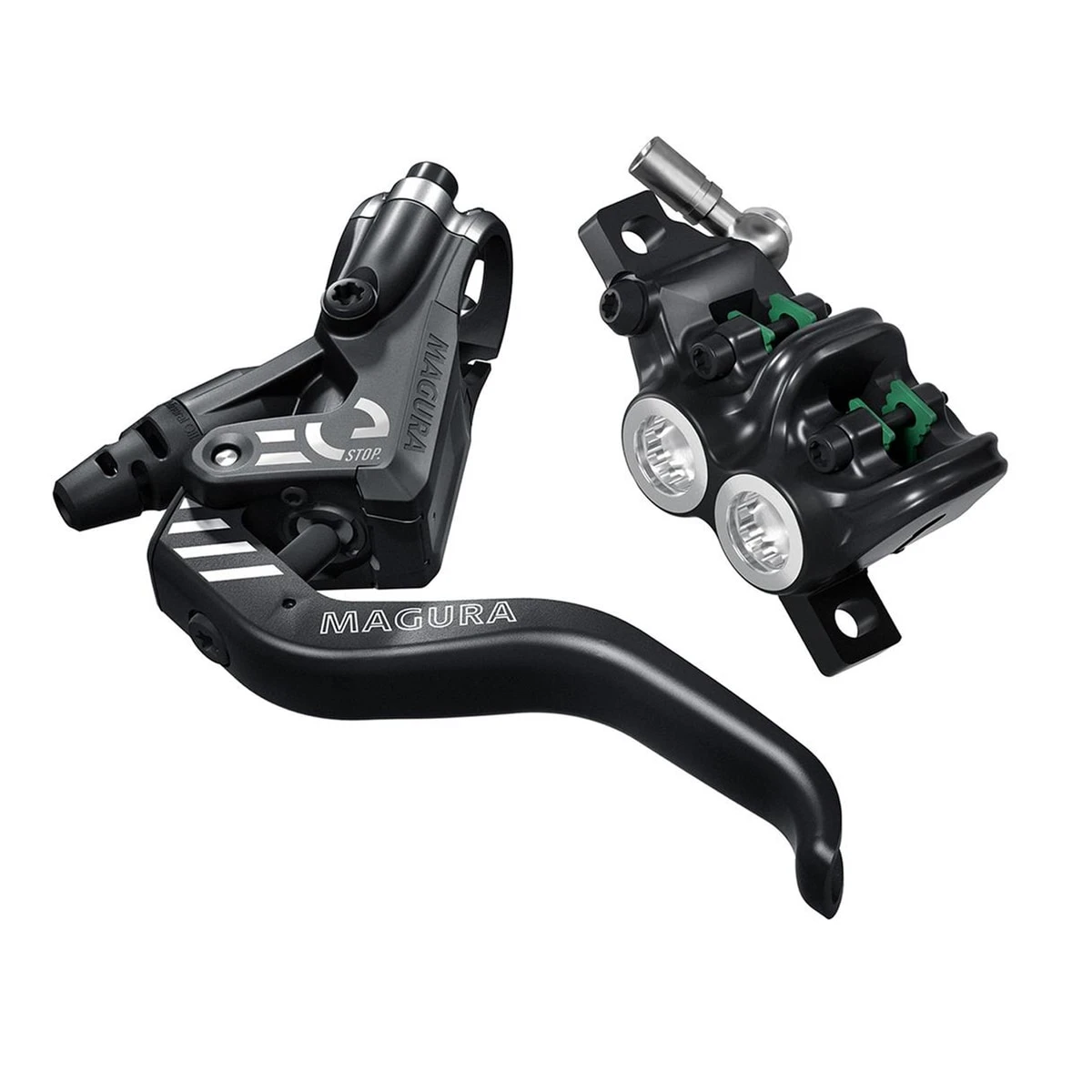

MAGURA MT5 ESTOP Front Or Rear Disc Brake

E-bike optimised!
The hydraulic MT5 eSTOP disc brake is MAGURA’s range-topping model for demanding e-bike use. Featuring powerful 4-piston brake callipers, it offers reliable performance at high speeds even on heavy cargo e-bikes and e-MTBS.
The eSTOP system is based on the features of the proven MT series and, in combination with MAGURA’s sports brake pads optimised for e-bikes and the optional MDR-C or MDR-P rotors, offers even higher braking power and stability.

Details:
• E-bike optimised
• Ergonomic 2-finger aluminium brake lever
• One-piece 4-piston brake calliper made of forged aluminium for exceptional stiffness
• EBT (Easy Bleed Technology)
• MagnetiXchange brake pistons for easy pad changes
• Mounting bolts with T25 star drive

Specs:
• Material: Carbotecture® (housing), aluminium (brake lever and calliper)
• Brake lever: for right and left side mounting (for handlebar Ø 22.2 mm)
• Lever reach adjustment: Yes (via T25 wrench)
• Brake calliper: Post Mount (bolt spacing: 74 mm)
• Hose length: 2,200 mm (can be shortened)
• Brake hose: MAGURA disc-tube 2.2
• Brake fluid: MAGURA Royal Blood
• Brake pads: MAGURA 8.S Sport
• Weight: approx. 255 g

In the box:
• 1 x MAGURA MT5 eSTOP disc brake
Filled and bled ready for installation, incl. mounting kit.
Attention:
Delivered WITHOUT disc rotor and WITHOUT adapter!

Recommended disc rotor:
• MAGURA MDR-P 6-bolt (prod. code: 2319771)
• MAGURA MDR-C CL 6-bolt (prod. code: 2319924)
• MAGURA MDR-C CL Center Lock (prod. code: 2310319)
• MAGURA Storm HC (prod. code: 2173638)
