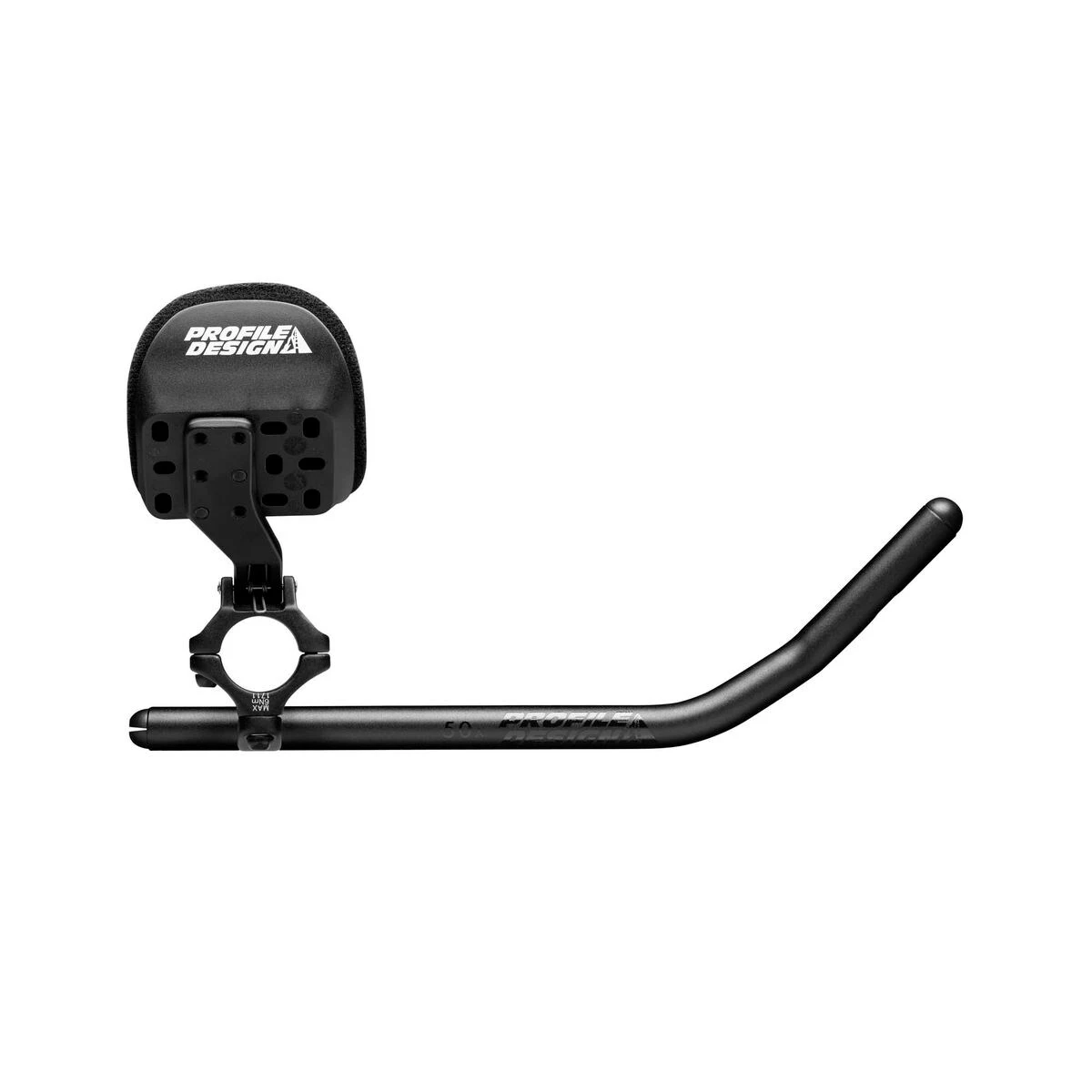

Profile Flip Ergo 50a Aerobar Extension

The Profile Flip Ergo 50a Aerobar unites the advantages of arm rests that fold up with the almost unlimited combinations and configurations of the Profile Design adjustment system. The spring loaded Flip brackets can be flipped up when not in use, giving you a reach extension on top of the base bar. This lets you better vary your hand position on the bar top during long ascents.

In contrast, the aero position the Flip Ergo 50a offers countless opportunities for finding your optimal hand position. Alone the ergo arm rests provide 80 different position through combinations of armrest width and offset. The lightly curved shape offers a balanced ratio of control and freedom of movement, making it well suited to most types of riders. The 50a extensions can also be adjusted in terms of width, length and tilt and offer a 50° bend shape in combination with a 7.5 mm lateral shift. This allows for a straight as well as raised hand position, in addition to other varieties.

Overall, the Profile Flip Ergo 50a offers an impressive range of configurations and hand positions that stands out among clip-on systems. For fans of flip brackets, this combination is the ideal basis for further configurations.

Details:
• Versatile aerobar extension with flip up arm rests
• Adjusts optimally to the preferred body position
• Spring loaded flip brackets for more hand positions on the base bar
• Low stack with the undermount design (extensions under the base bar)
• Adjustable ergo arm rests with a light, balanced curve
• Adjustable 50a aluminium extensions with 50° bend and lateral shift for flexible hand positions
• Designed for internal gear cable routing
• Compatible with many aerobar components from Profile Design

Specs:
• Material: Aluminium 6061 T6 (brackets, extensions); glass fibre compound, EVA, Lycra® (arm rest)
• Angle aero bar: 50° rise, per 7.5 side sweep
• Length: approx. 340 mm
• 100mm of length adjustment
• Stack: 40 mm
• Reach/Offset: – 85 mm to – 17.5 mm (in 7.5 mm steps)
• Arm rest width: 112 mm – 280 mm (in 18.5 mm steps, with extensions at 100mm)
• For handlebar Ø 31.8 mm
• Weight: approx. 587 g

In the box:
• 1 Profile Flip Ergo 50a Aerobar 340 mm

Note:
The aero bar is designed for internal cable routing and compatible with Shimano Di2 bar end shifters (product code 1873883) or brake/shift lever combinations for the bar end.

ATTENTION:
Through the positioning of the extensions under the base bar, the flip brackets require extensions that rise up like the installed 50a to ensure a comfortable grip. A combination with flatter extensions like the Profile 35a is therefore NOT advised.
