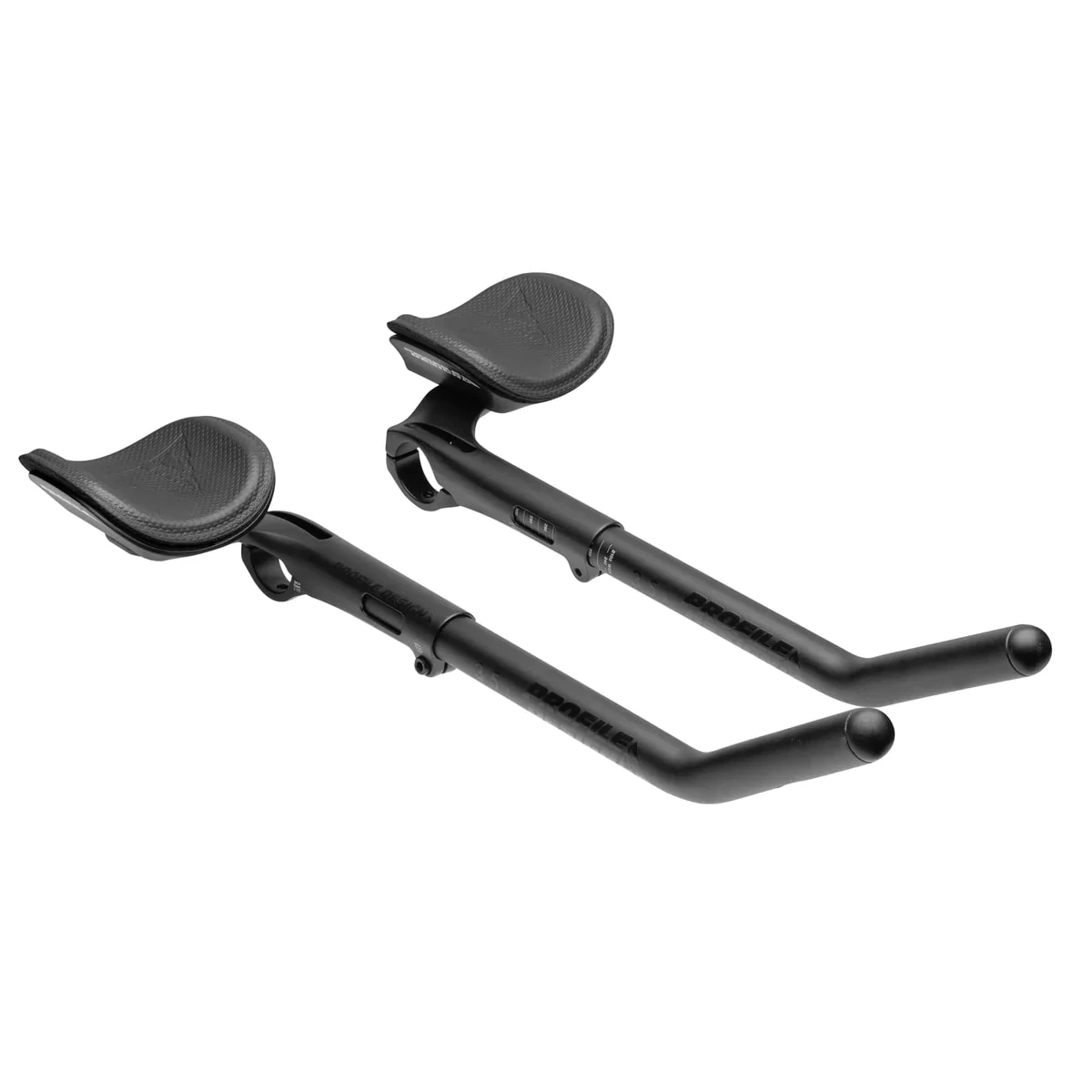

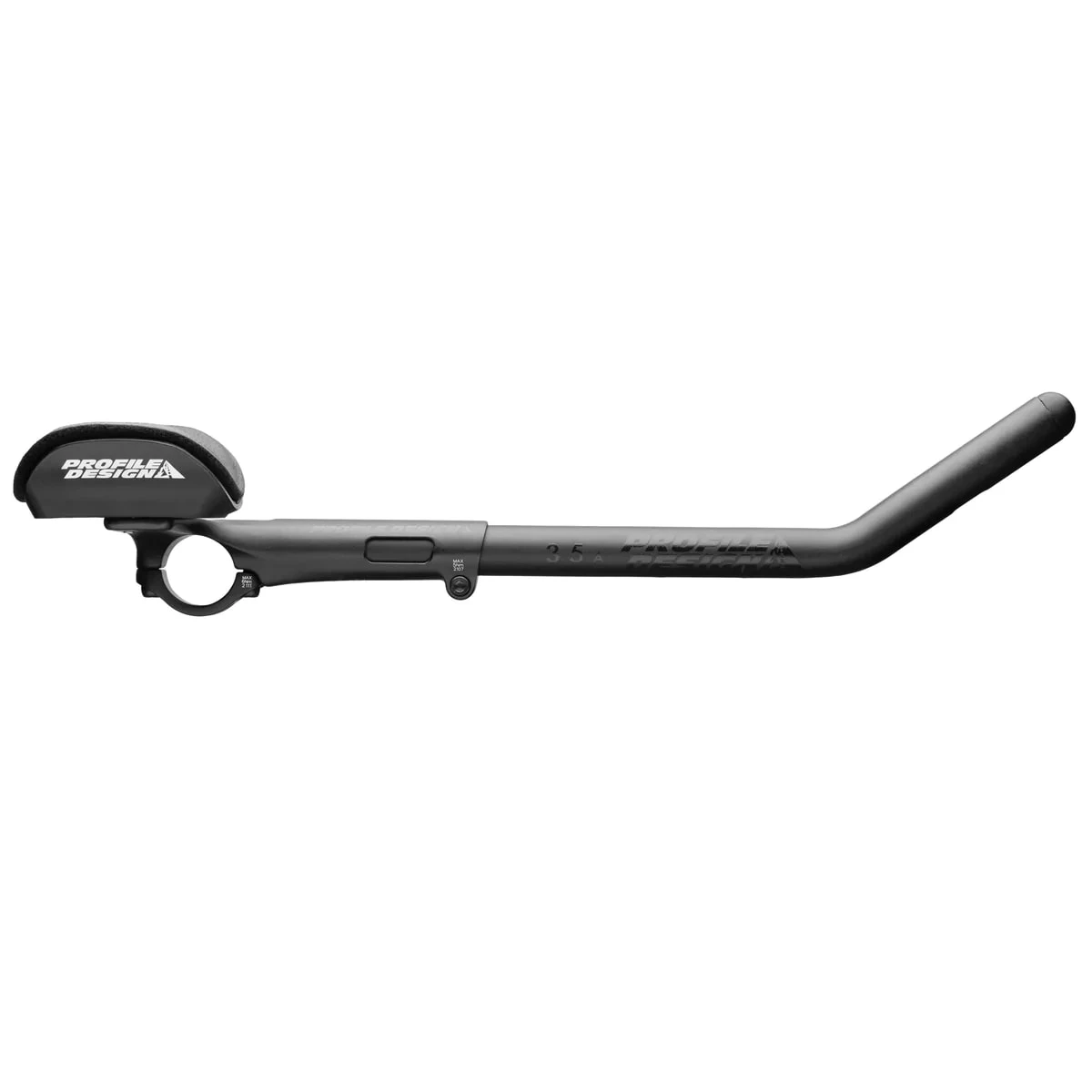

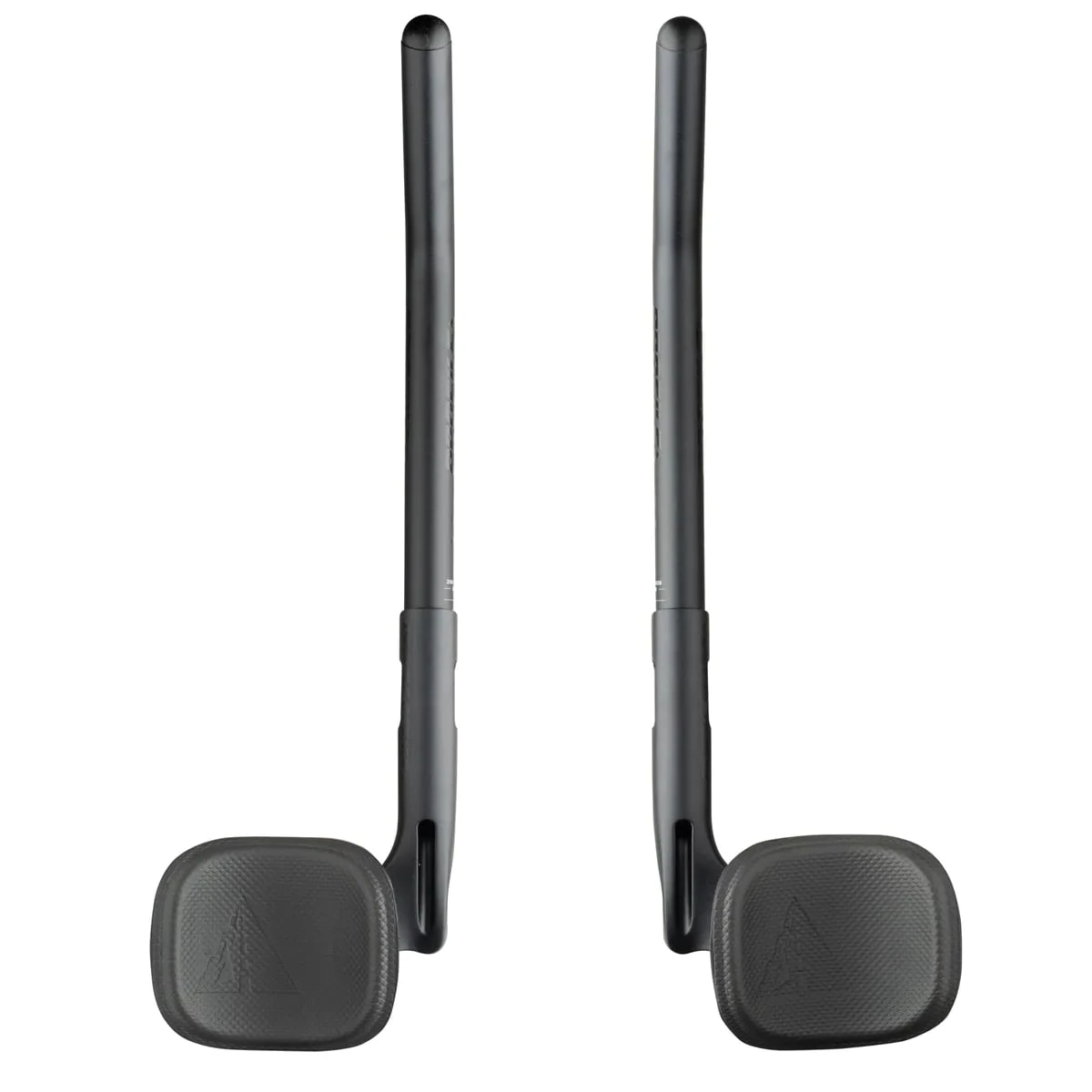

Profile Subsonic/Ergo/35a Aerobar

With the Subsonic/Ergo/35a aerobar, Profile Design proves that aerodynamics and comfort are not a contradiction. These ergo arm rests feature countless adjustment options, room to move and the consistent low-stack design of the race-oriented Subsonic brackets. Combined with the proven 35a extensions with their moderate bend, the Profile Subsonic/Ergo/35a thus presents itself as an adaptable all-rounder for almost all areas of use – from long training sessions to triathlons or individual time trials.

What stands out above all is the clip-in system of the Subsonic brackets, which enables the extremely low stack height of only 40 mm and thus offers a substantially lower position. Additional advantage of this system: The 35a extensions are located directly in front of the handlebar and thus further reduce the area exposed to the wind. The extensions come with a 35 degree bend. Shortening them allows for individual length adjustment. Once they have been cut, there is a 40 mm range of adjustment. The tilt can also be adjusted easily, thanks to the simple clip-on system.

Even more fine-tuning options are offered by the ergo armrests, which can be mounted in up to 80 different positions thanks to a sophisticated hole matrix. This allows you to adjust the position of your elbows in length and width to your needs with millimetre precision. What’s more, the light curve of the extensions offers just the right balance between control and freedom of movement. You are thus optimally equipped from training to competition with the Profile Subsonic/Ergo/35a. Thanks to the modular FLYT system with interchangeable brackets, extensions and arm rests, you also have many adjustment options.

Tip:
If the stack seems too low, you can still adjust it individually with the separately available Bracket Riser Kit (prod. code: 1904721) without changing the distance between armrests and extensions.

Details:
• Versatile aluminium aerobar extension
• Adjusts optimally to the preferred body position
• Subsonic brackets with clip-on system for low stack height and optimum aerodynamics
• Adjustable ergo arm rests with a light, balanced curve
• 35a extension with moderate 35° bend and 80 mm rise
• Extension can be shortened for individual length adjustment (subsequent shifting by 40 mm possible)
• Designed for internal gear cable routing
• Compatible with brackets, extensions, and arm rests from the FLYT systems

Technical details:
• Material: Aluminium 6061 T6 (brackets, extensions); glass fibre compound, EVA, Lycra® (arm rest)
• Extension length: approx. 350 mm
• Approx. 40 mm of length adjustment
• Extension height: approx. 80 mm
• Stack: approx. 40 mm, adjustable by up to 70 mm (up to 110 mm) in 5 mm steps with optional risers (product code: 1904721)
• Reach/Offset: -85 mm to -17.5 mm (in 7.5 mm steps)
• Arm rest width: 142 mm – 272 mm (in 18.5 mm steps, with extensions at 100 mm)
• For handlebar Ø 31.8 mm
• Weight: approx. 590 g

In the box:
• 1 Profile Subsonic Ergo 35a aero bar

Profile Design FLYT System
With the FLYT system, Profile Design simplifies the process of fitting an aero bar to a rider to better suit their needs. Based on the 3 brackets Sonic, Supersonic and Subsonic, the 3 armrests Ergo, Boom (F40) and Race and the 3 extensions 35, 50, and 45/25, the system offers 27 possible combinations to cover over 1000 different fit options. This gives you an uncomplicated foundation for individually adjusting your riding position. For hobby cyclists and professional bike fitters alike.
