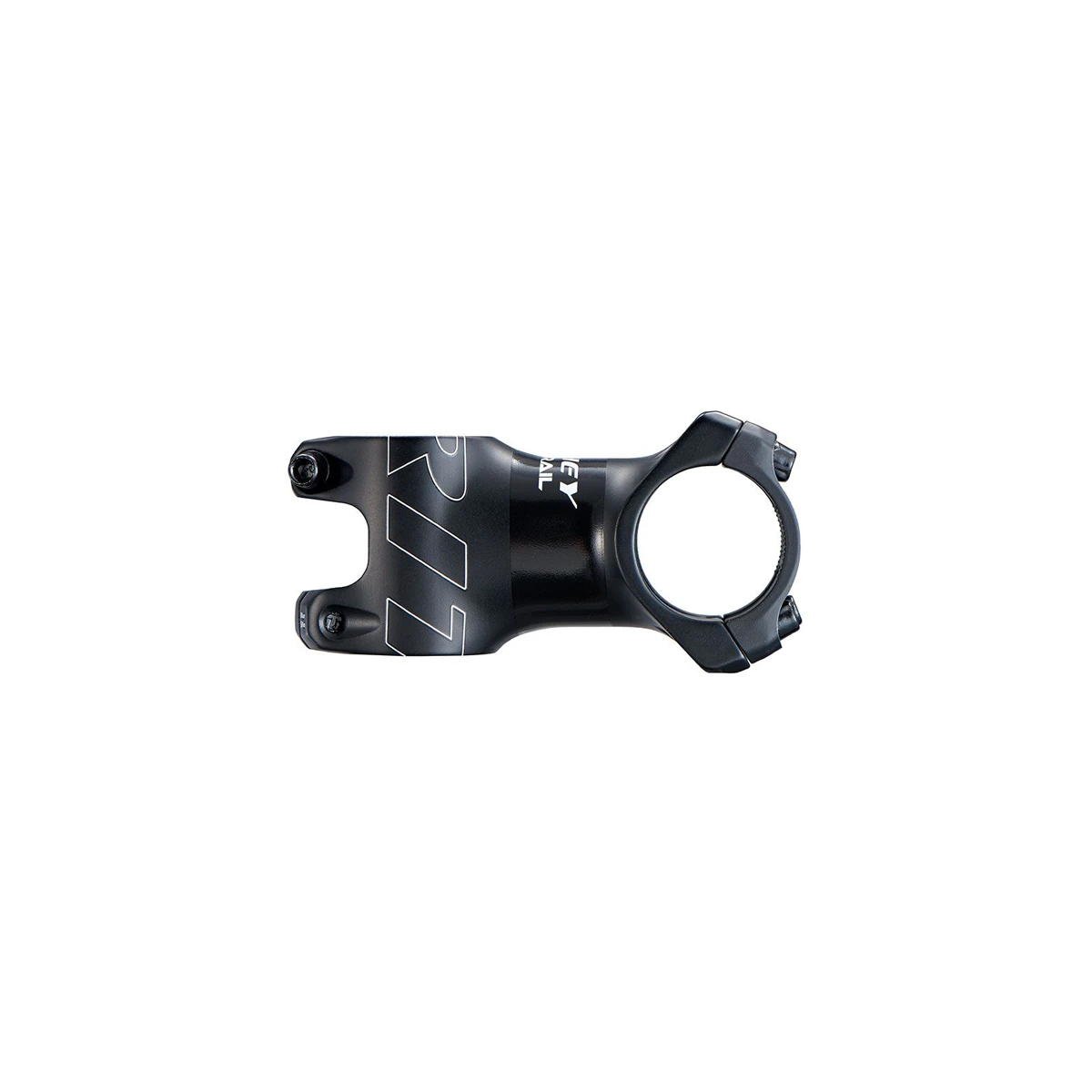

RITCHEY WCS Trail Stem

With the WCS Trail stem, Ritchey has developed the first Ahead stem specially-designed for modern mountain bikes with wide handlebars.
The in-house C260 clamp has been reworked into a 220-degree version and combined with an extra-wide handlebar clamp to better distribute the clamping forces. Using a 3D forged 2014 alloy, the WCS Trail stem offers remarkable strength while being very lightweight.

Details:
• High-quality aluminium stem for modern mountain bikes
• Made from a 3D forged 2014 alloy

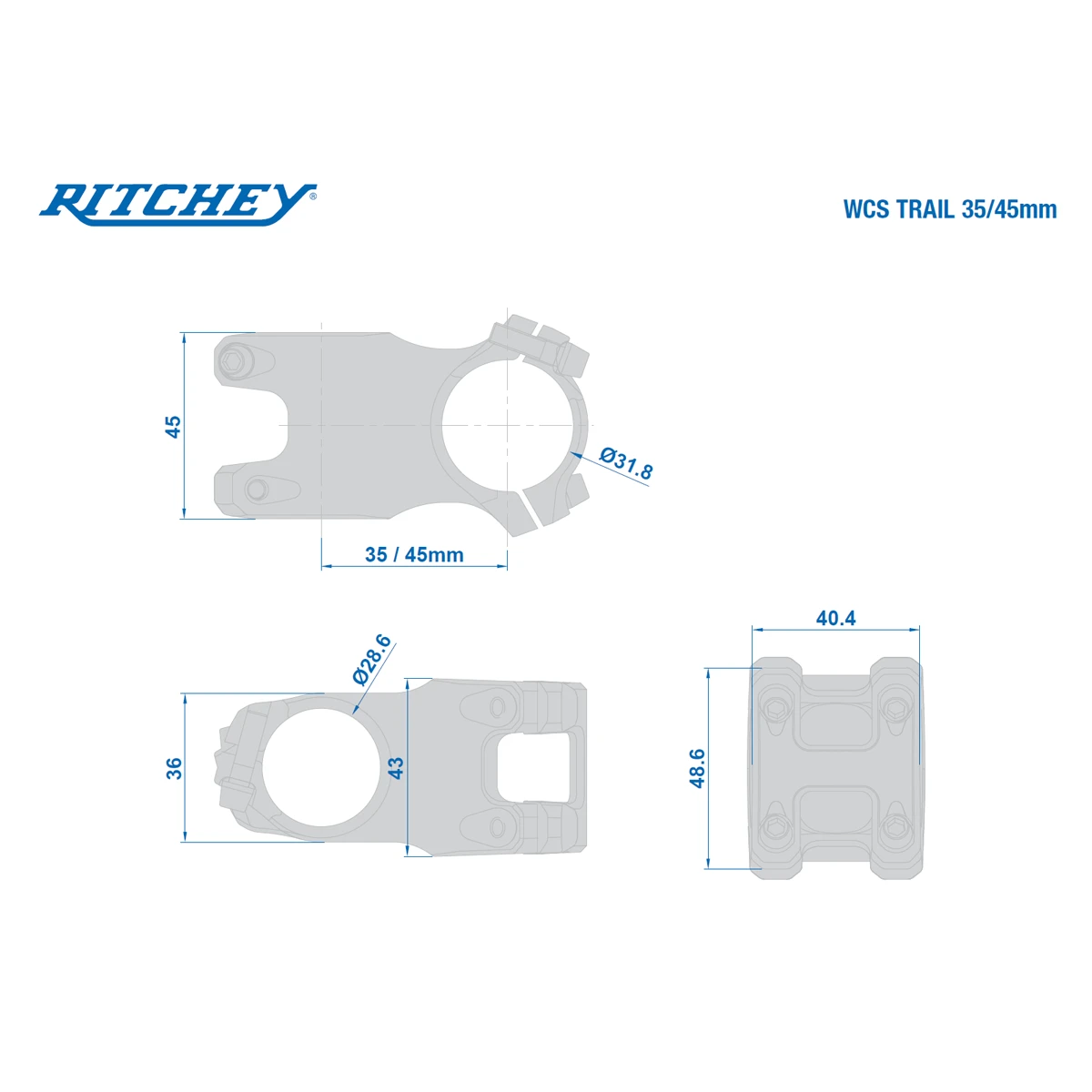

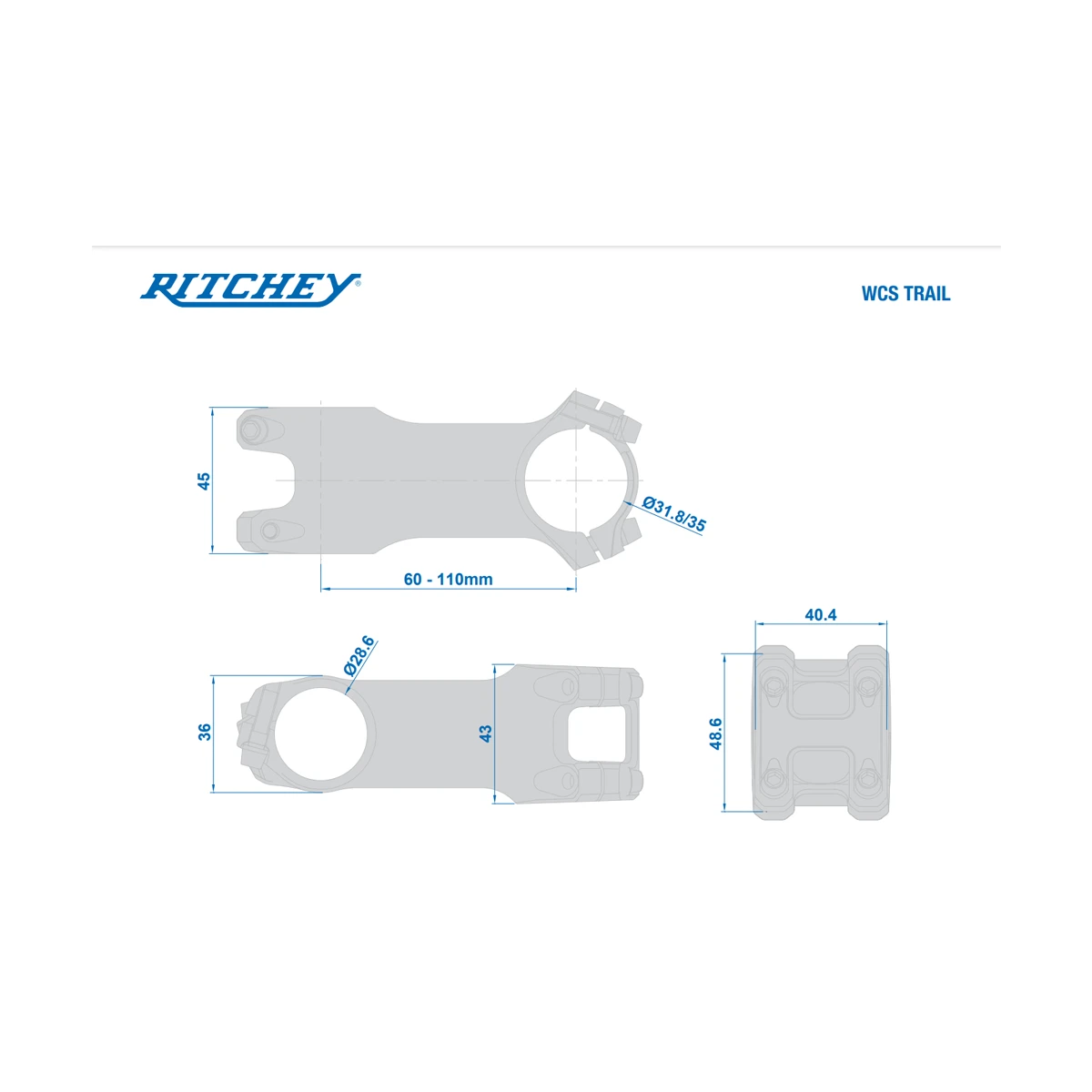

Technical details:
• Intended use: MTB (Allmountain, Trail, Enduro, Freeride, Downhill), Gravel, Bikepacking
• Material: 2014 aluminium
• Fork Steerer Ø: for threadless forks with steerer outer diameter of 28.6 mm (1 1/8”)
• Handlebar clamp: Ø 31.8 mm
• Clamping height on steerer tube: approx. 43 mm
• Angle (rise): 0°
• Weight: approx. 129 g (70 mm)

Available with a length of:
• 35 mm
• 45 mm
• 60 mm
• 70 mm
• 80 mm
• 90 mm
• 100 mm
• 110 mm
Please indicate your choice.

In the box:
• 1 x Ritchey WCS Trail stem Ø 31.8 mm
