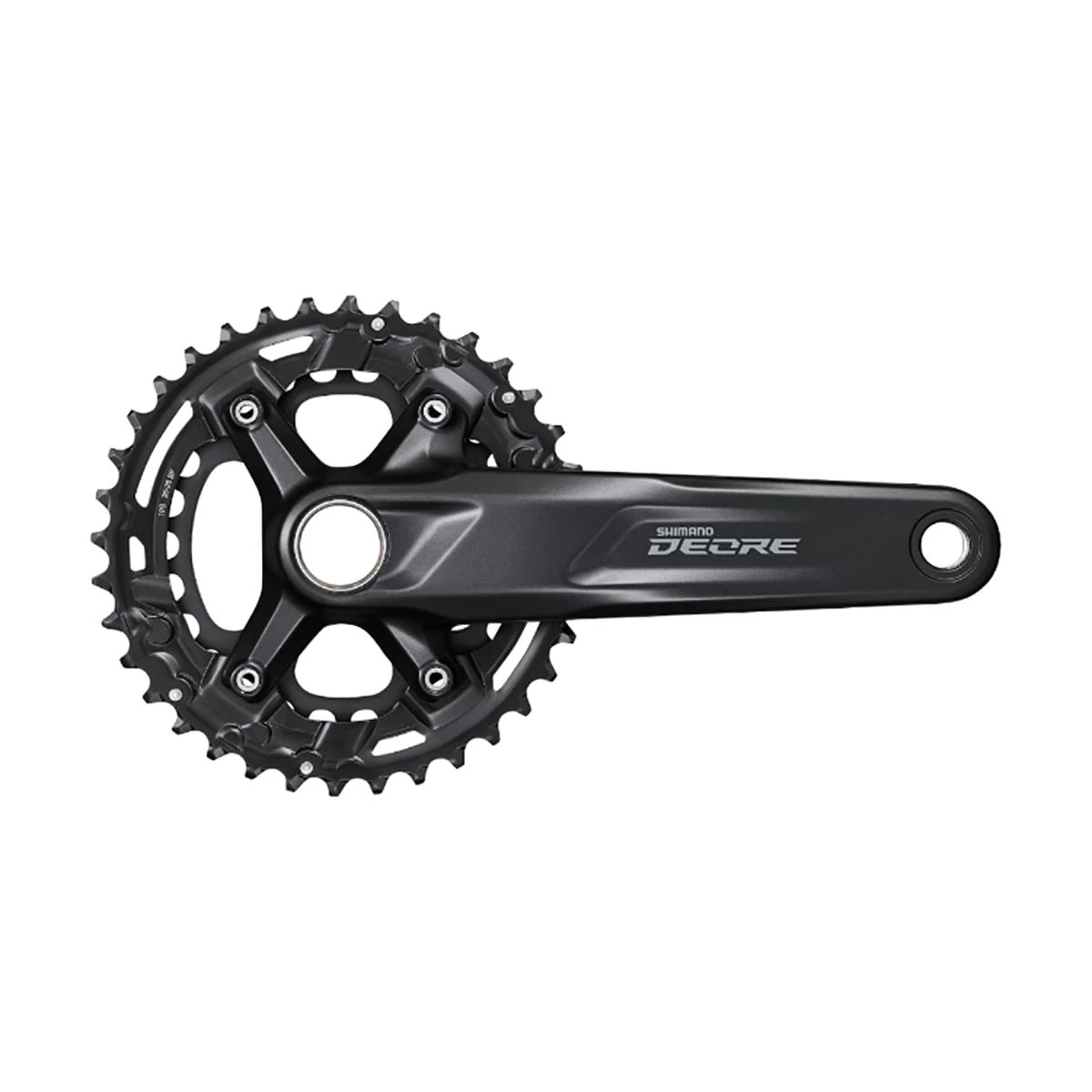

Shimano DEORE FC-M4100-B2 BOOST Hollowtech II MTB Crankset 2 X 10-speed

The SHIMANO DEORE FC-M4100-B2 MTB-crankset ensures precise and reliable shifting for 2 x 10-speed drivetrains. These two-piece cranks offer a gear ratio of 26-36 teeth and a 51.8 mm chainline, which is compatible with a frame that has 148 mm locknut dimensions (BOOST).

Details:
• 2 x 10-speed crankset with integrated axle (Hollowtech II)
• Two-piece crankset increases the stiffness of the chainset with low weight and ensures efficient pedal force transference
• Extra large transference area

Specs:
• Intended use: MTB
• Series: DEORE
• Model: FC-M4100-B2
• Type: Hollowtech II
• Gear steps front: double
• Gear steps rear: 10-speed
• Gear ratio: 26-36 teeth
• Bolt circle: 96/64 mm (4-hole, asymmetric)
• Chainline: 51.8 mm (for 148 mm locknut dimensions, BOOST)
• Q factor: 178.5 mm
• Compatible chains: SHIMANO 10-speed HG-X

Available with crank arm length:
• 170 mm
• 175 mm
Please indicate your choice.

In the box:
• 1 SHIMANO DEORE FC-M4100-B2 BOOST Crank 2 x 10-speed
Note: WITHOUT bottom bracket!

Optional bearing cups:
• BSA: SM-BB52 (product code: 2058694)
• PressFit: BB-MT500 (product code: 2234036)
