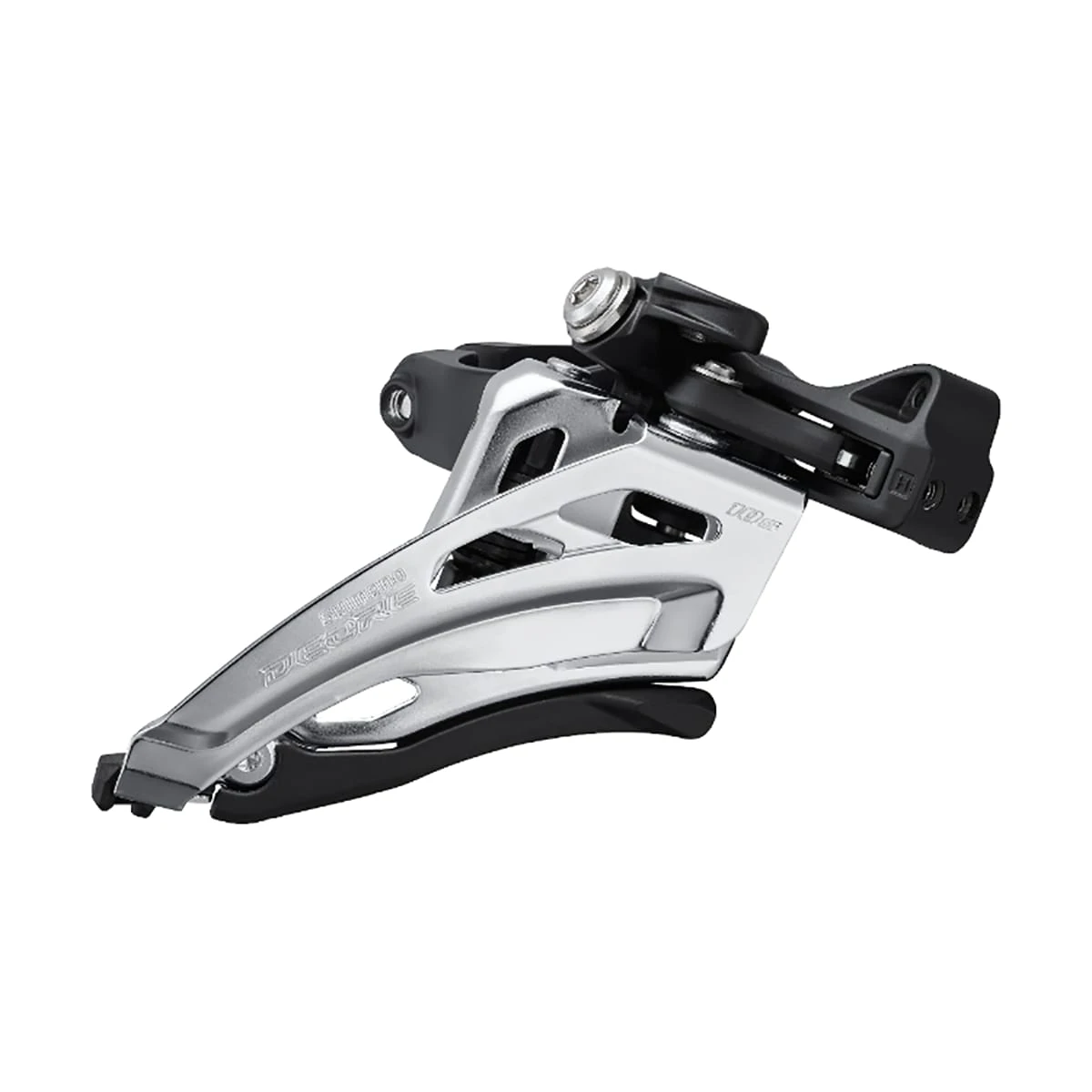

Shimano DEORE FD-M4100-M Front Derailleur 2 X 10-speed – Clamp Attachment

The SHIMANO FD-M4100-E 2 x 10-speed front derailleur with clamp attachment has the established SIDE SWING technology from SHIMANO for better cable routing, ease of motion, and problem-free control. The reworked design also offers more room for large wheels and short chainstays.

Details:
• SIDE SWING design for better tyre clearance and efficient cable routing for smooth shifting
• For high performance and quiet shifting with double crankset
• For double gear range with 26-36 teeth in front
• Reworked cage design reduces chain abrasion with fully suspension bikes

Specs:
• Intended use: MTB
• Series: DEORE
• Model: FD-M4100-M
• Material: aluminium, steel, carbon fibre reinforced plastic
• Type: M-Type (Mid-Clamp attachment Ø 34.9 mm (with adapter 31.8/28.6 mm))
• Drive: Front Pull
• Gear steps front: double
• Gear steps rear: 10-speed
• Large chainring: max. 36 teeth
• Total capacity: 10 teeth
• Chainline: 48.8 mm (standard) / 51.8 mm chainline (BOOST)
• Chain stay angle: 64-69°
• Compatible chains: SHIMANO 10-speed HG-X

In the box:
• 1 SHIMANO DEORE FD-M4100-M Front Derailleur for fast assembly (mid-clamp)

ATTENTION:
The front mech requires a frame that allows front pull.
