Shimano Ultegra WH-R8170-C36-TL Disc Centerlock Road Wheels 28″/700C

The Ultegra WH-R8170-C36-TL Disc road wheels by SHIMANO offer an optimal balance of aerodynamics, stiffness, reliability and weight.

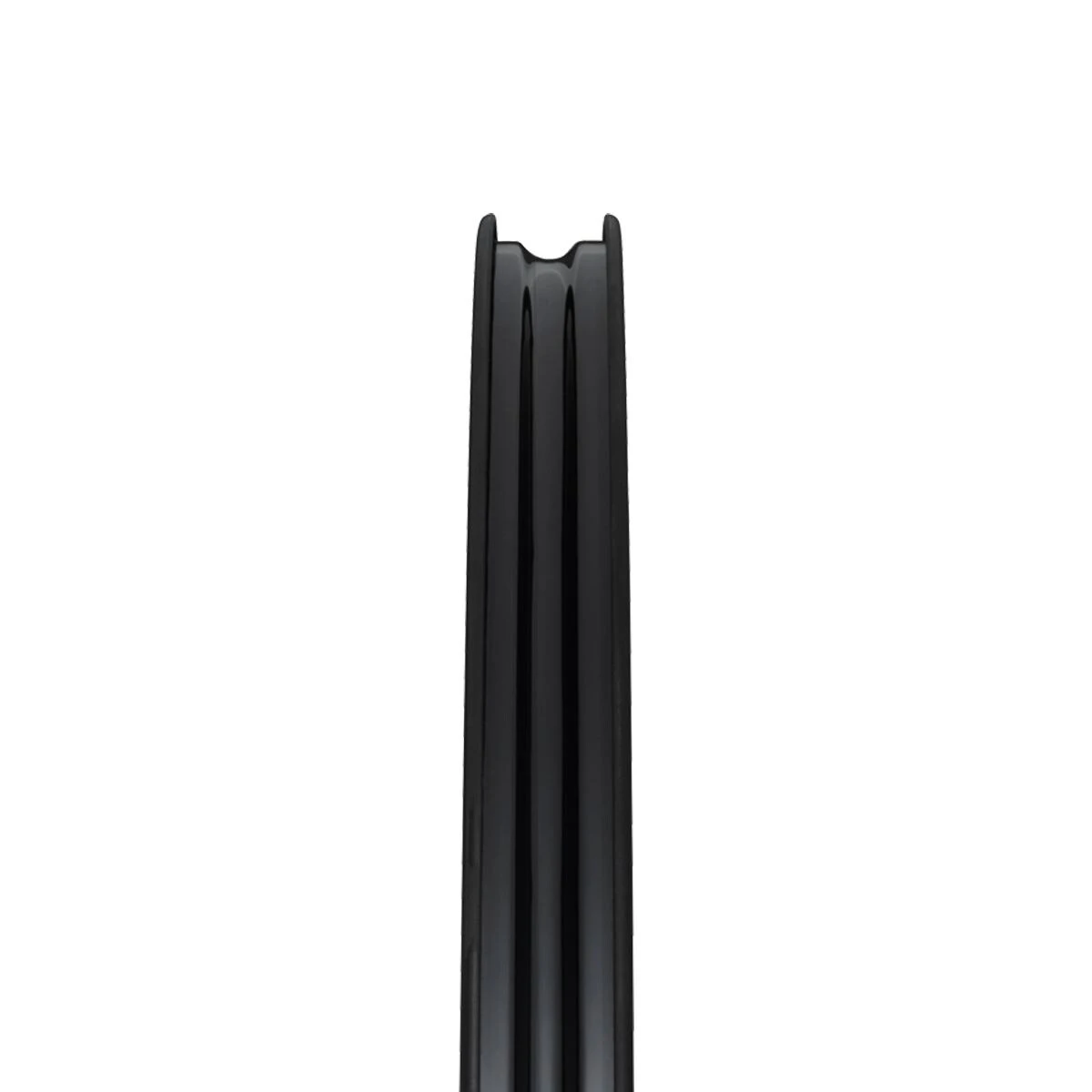

The 36mm high carbon rims perfectly combine low weight and aerodynamics, making the Ultegra WH-R8170-C36 wheelset suitable for a wide range of riding styles. Aerodynamic bladed spokes and extremely efficient hubs promise plenty of propulsion in any situation. Being tubeless-ready and having an inner rim width of 21 mm, the WH-R8170-C36-TL Disc wheelset by SHIMANO can handle the trend towards wider road bike tyres, while also providing low rolling resistance, increased comfort, and improved grip when riding tubeless. Double-butted spokes with a 1.6 mm thin centre section make for high lateral stiffness and vertical compliance.

Therefore, SHIMANO’s WH-R8170-C36-TL Disc road wheels are the perfect choice, if you want to compete for the win, set a new best time on your favourite route or just like to ride fast.

Details:

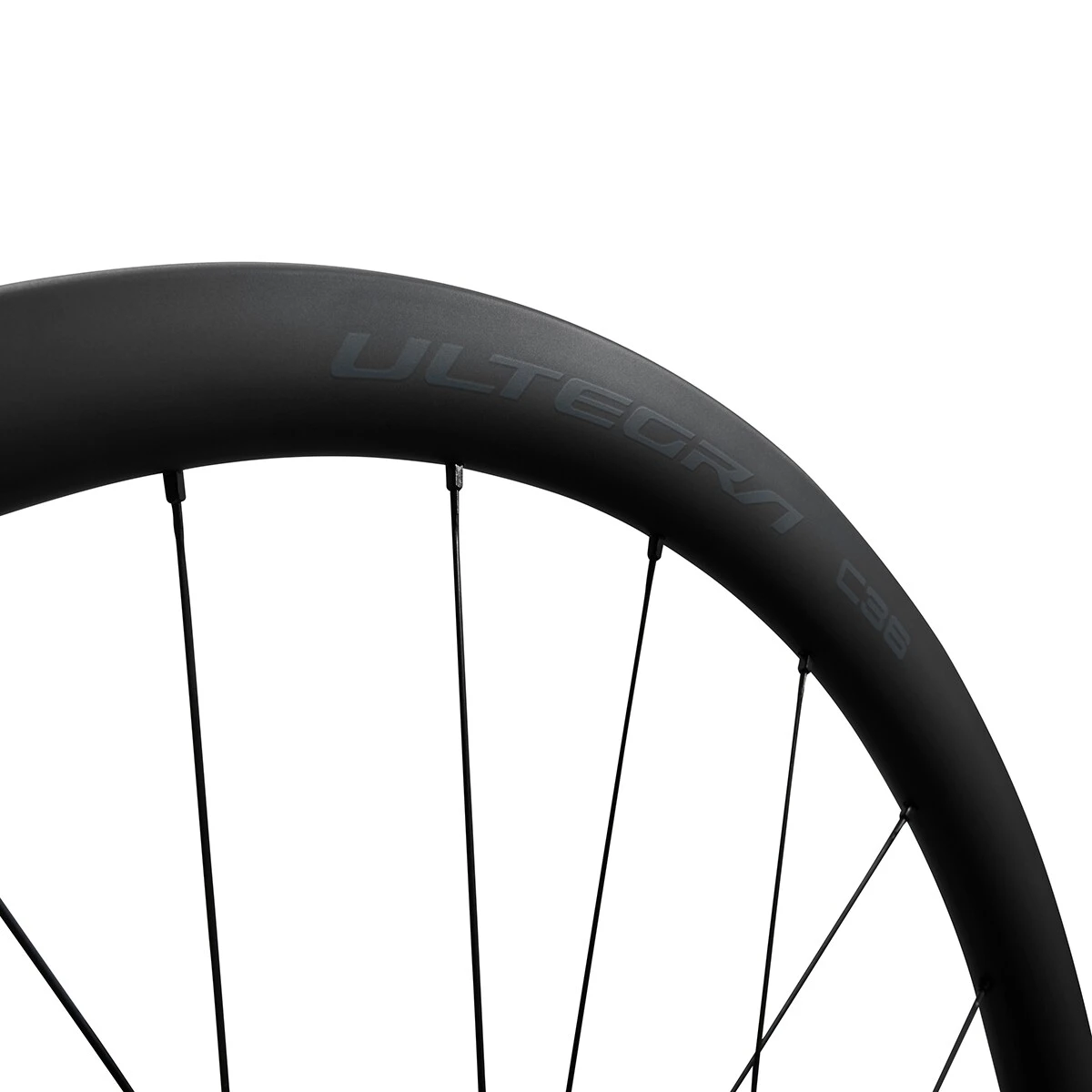

• Aerodynamic and lightweight all-round wheels with 36mm carbon rims
• Set including front and rear wheel, for disc brakes
• Tubeless ready

Technical details:
• Intended use: Road bike
• Series: Ultegra
• Model: WH-R8170-C36-TL
• Rim material: carbon

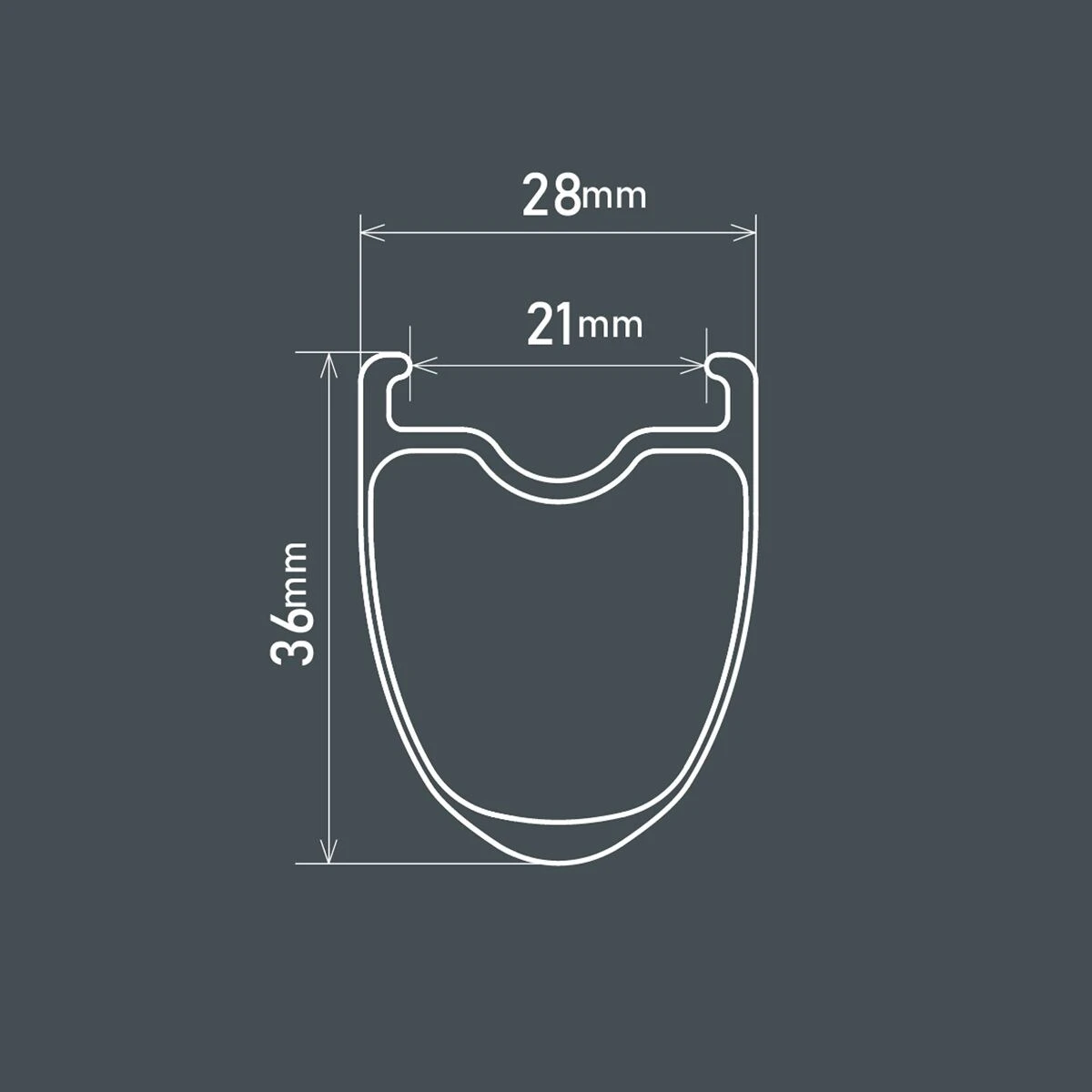

• Rim width/depth: 28 mm / 36 mm
• Inner rim width: 21 mm
• ETRTO: 21-622
• Recommended tyre width: 25 mm – 32 mm
• Spoke type: butted straight pull aero spokes (2.0 – 1.6 – 2.0)
• Number of spokes: 24 pcs
• Spoke pattern: 2-cross
• Nipples: aluminium

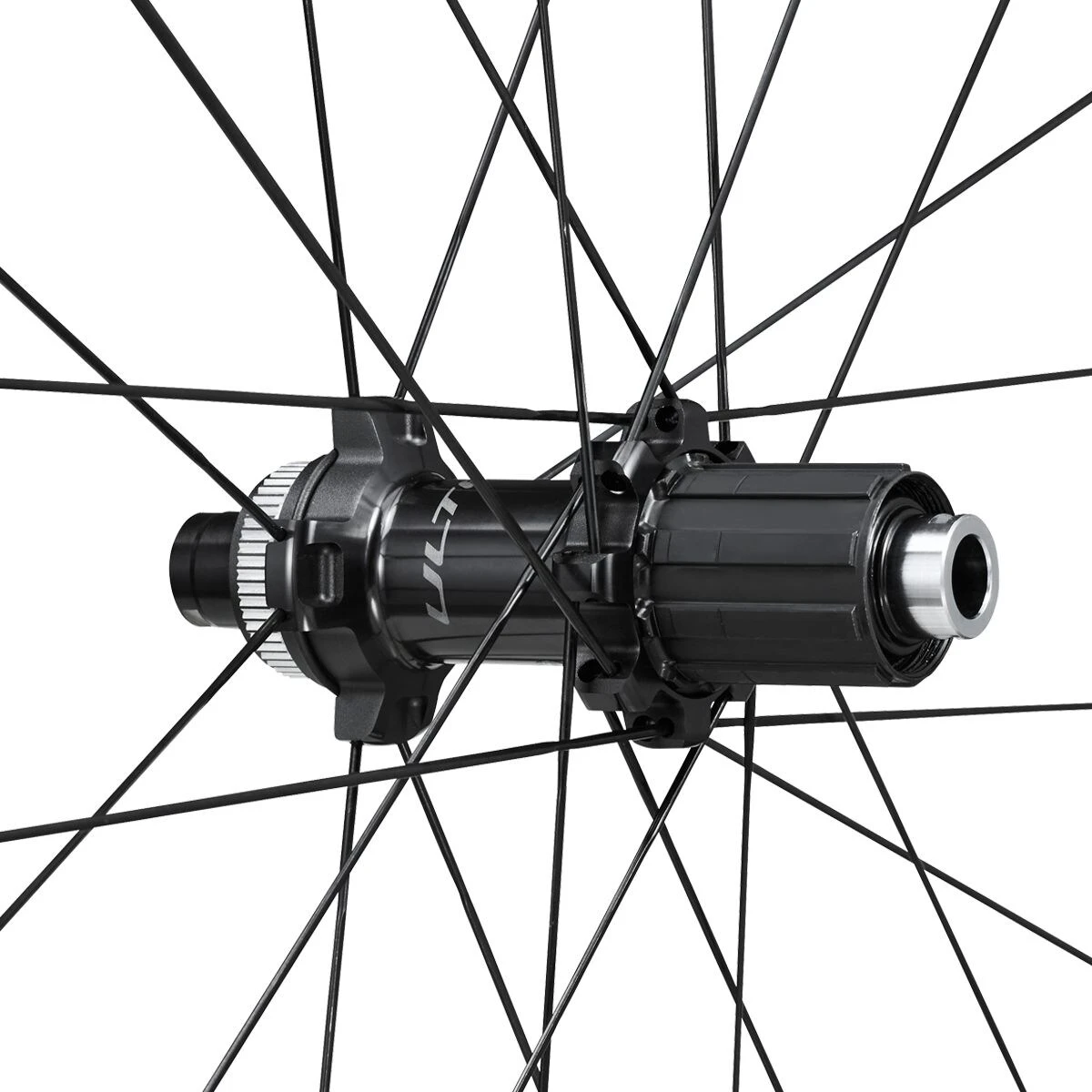

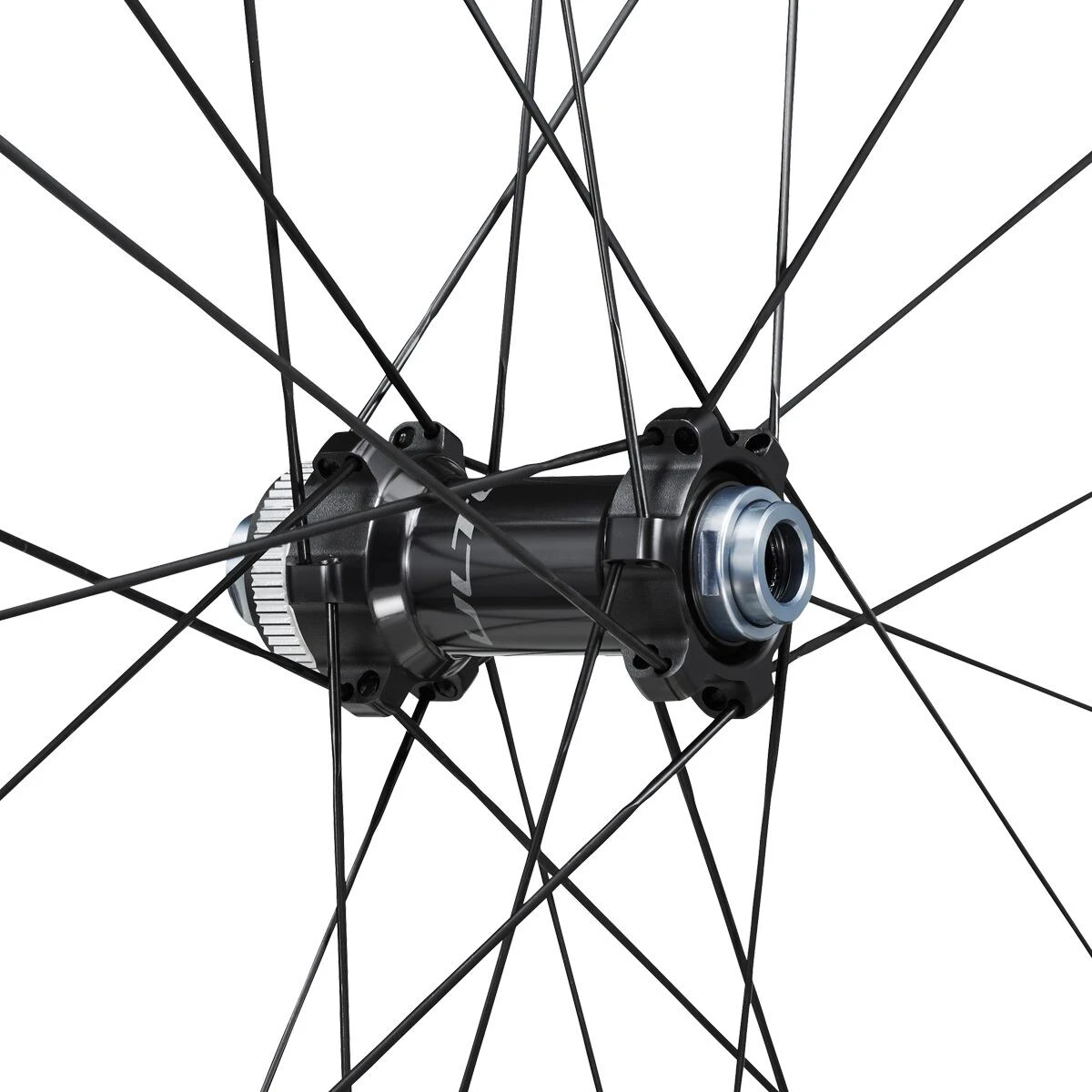

• Hub body: aluminium (anodised)
• Axle: aluminium (anodised)
• Freehub body: SHIMANO HG Spline L (steel)
• Compatible with these cassettes: 8-/9-/10-speed SHIMANO /SRAM, 11-speed SHIMANO/SRAM Road, 11-speed SHIMANO MTB, 12-speed SHIMANO Road
• Brake disc mount: Center Lock
• Front axle: 12 x 100 mm (thru axle)
• Rear axle: 12 x 142 mm (thru axle)
• Weight: approx. 1488 g (front wheel approx. 657 g, rear wheel approx. 831 g)

In the box:
• 1 SHIMANO Ultegra WH-R8170-C36-TL-F road front wheel
• 1 SHIMANO Ultegra WH-R8170-C36-TL-R road rear wheel
