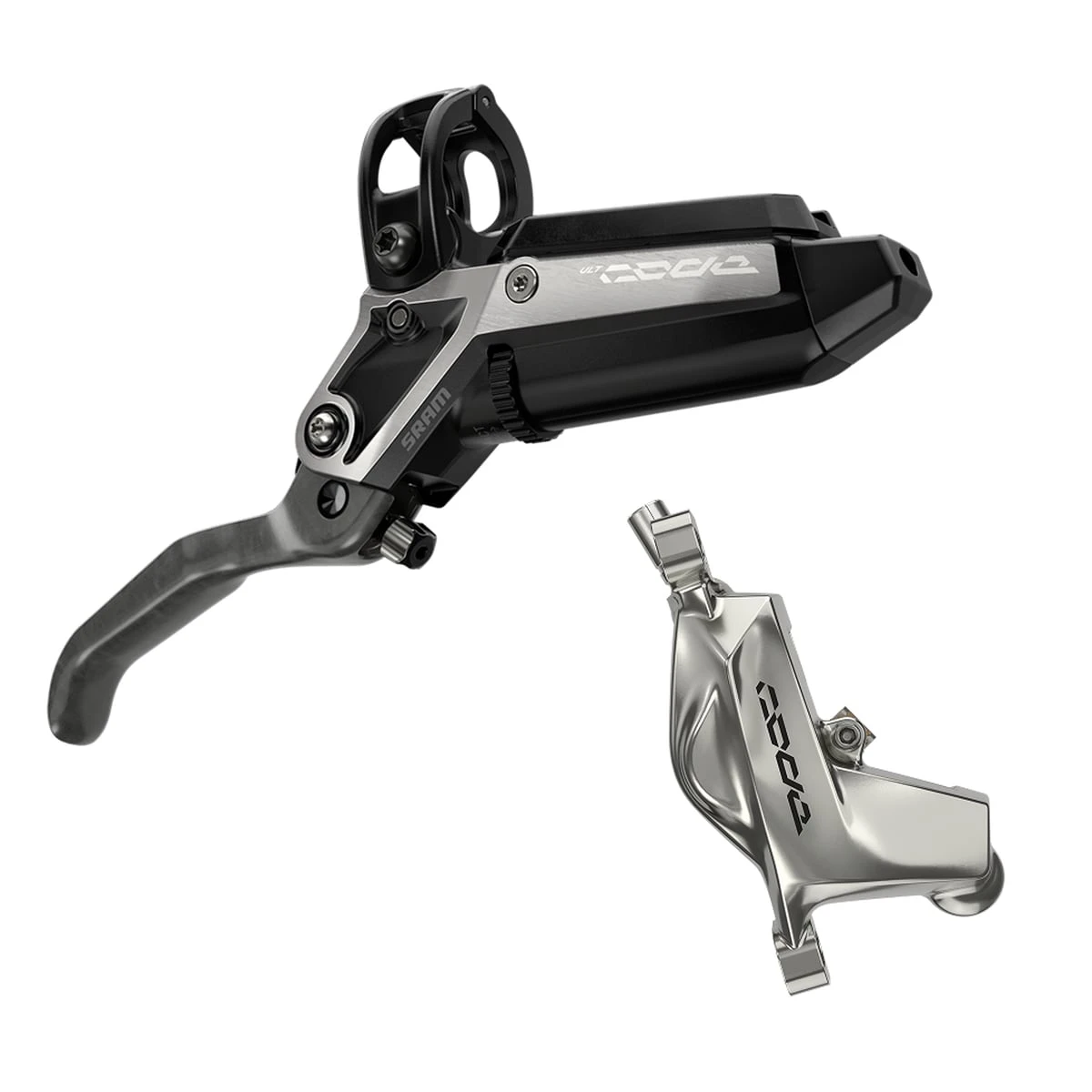

SRAM Code Ultimate Stealth 4-Piston Disc Brake

For the first time ever, the almost legendary SRAM Code wears the Ultimate crown. The most powerful MTB disc brake of the Americans now features a new design to improve the look of your cockpit: Stealth!

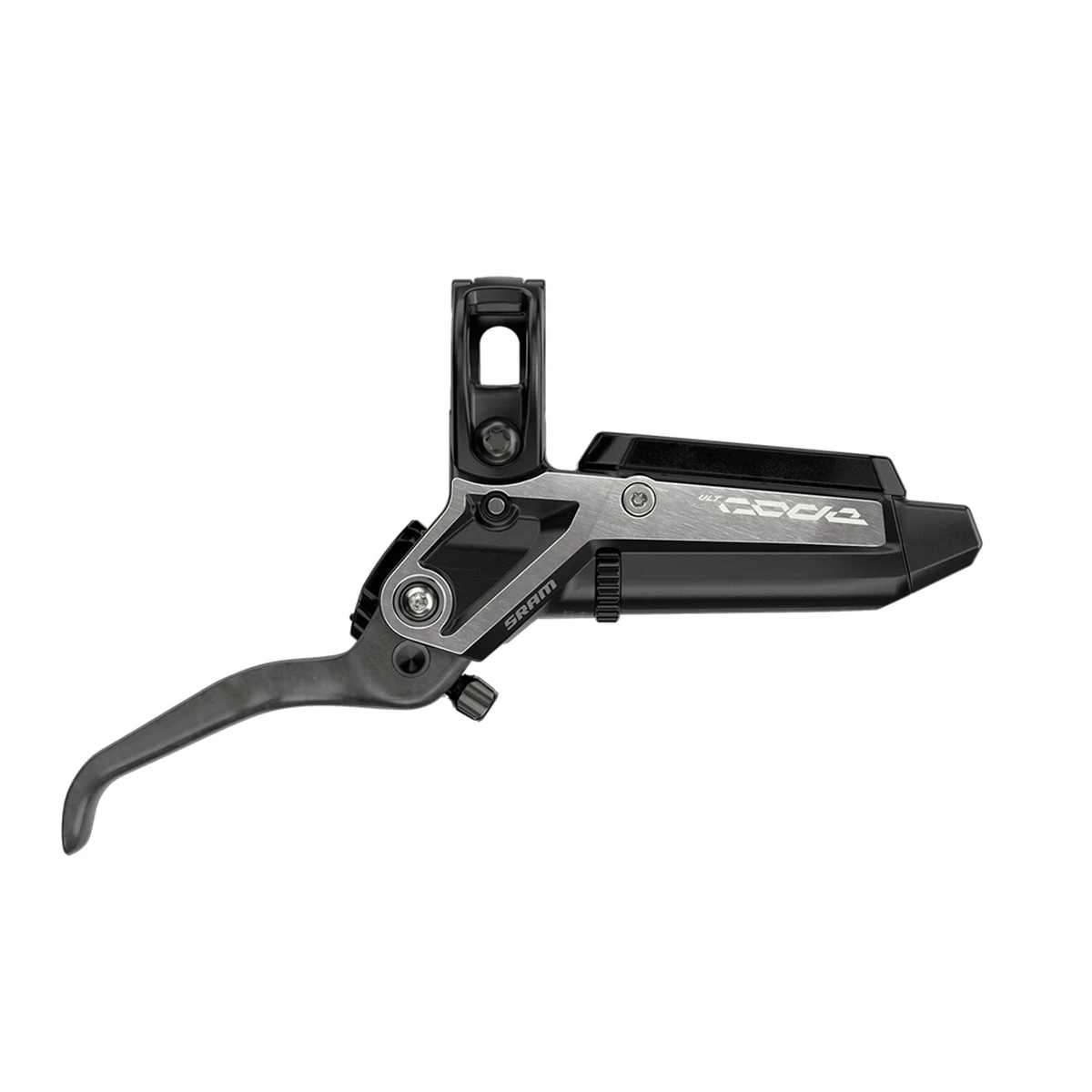

The new lever design brings the brake hose closer to the handlebar for a sleeker, more modern look. The proven internals remain the same, with SwingLink™ technology providing the tried and tested SRAM modulation and distinctive riding feel.
For perfect ease of customisation, the Code Ultimate Stealth features tool-free lever reach and contact point adjustment. To top it all off, a noble carbon lever is combined with outstanding Lever Pivot Bearing technology.
SRAM’s best mountain bike brake just got better!

Details:
• Stealth design to match SRAM AXS™ components
• Metallic brake pads for more power and greater durability
• SRAM’s most powerful brake with SwingLink™ and lever pivot bearing for a fatigue-free ride

Technologies:
• SwingLink™: less lever travel (free stroke) and a special cam shape for improved balance between power and precision and smooth braking
• Bleeding Edge™: Ensures easier and more even bleeding of the brakes.
• Contact Point Adjustment: Adjust the position of the bite point for an individual brake lever fit
• PiggyBack™ Reservoir: For a simple and failsafe way to manage brake fluid. In addition, the reservoirs allow for mounting the levers on both sides (Flip Flop design).
• Lever Pivot Bearings: Sealed pivot bearings ensure a clean and precise lever movement.

Technical details:
• Material: carbon (brake lever); forged aluminium, anodised (housing, brake calliper); phenolic plastic (piston), titanium (mounting bolts)
• Number of pistons: 4

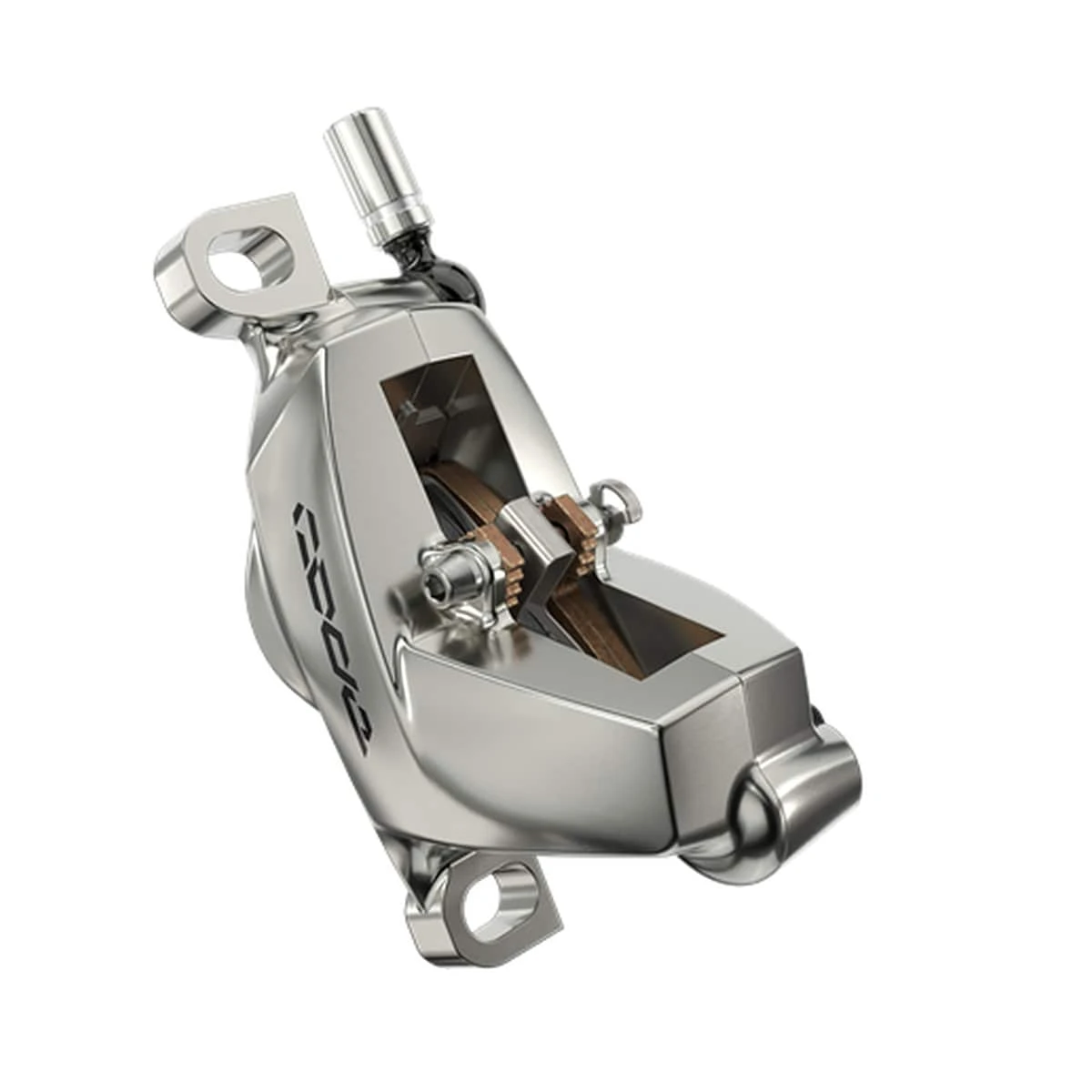

• Brake calliper: post mount
• For handlebar Ø: 22.2 mm
• Brake pads: sintered on steel backing plate
• Brake fluid: DOT 5.1
• Lever reach adjustment: yes (without tools)
• Contact point adjustment: yes (without tools)
• Compatible with MatchMaker X™

Available in:
• Front wheel (hose length approx. 950 mm)
• Rear wheel (hose length approx. 2000 mm)
Please indicate your choice!

Recommended disc rotors (optional):
• SRAM HS2 Rounded 6-bolt disc brake rotor (prod. code: 2329508)
• SRAM HS2 Rounded Centerlock (prod. code: 2329516)

In the box:
• 1 SRAM Code Ultimate Stealth disc brake
• 1 MatchMaker X™ Clamp
• Mounting kit (olive, insert pin, material for shortening and connecting the brake hoses, titanium mounting bolts)
(filled and bled ready for installation)
