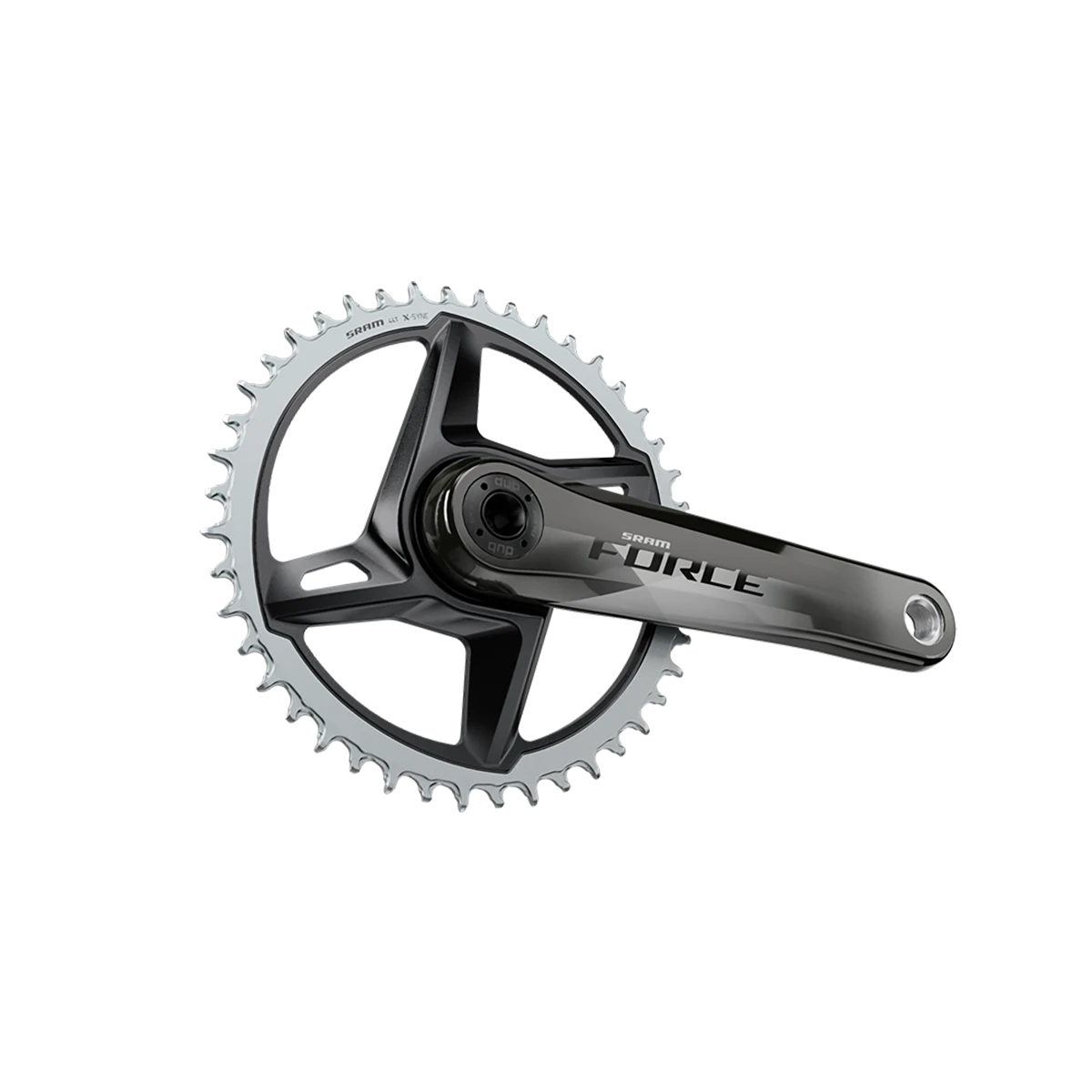

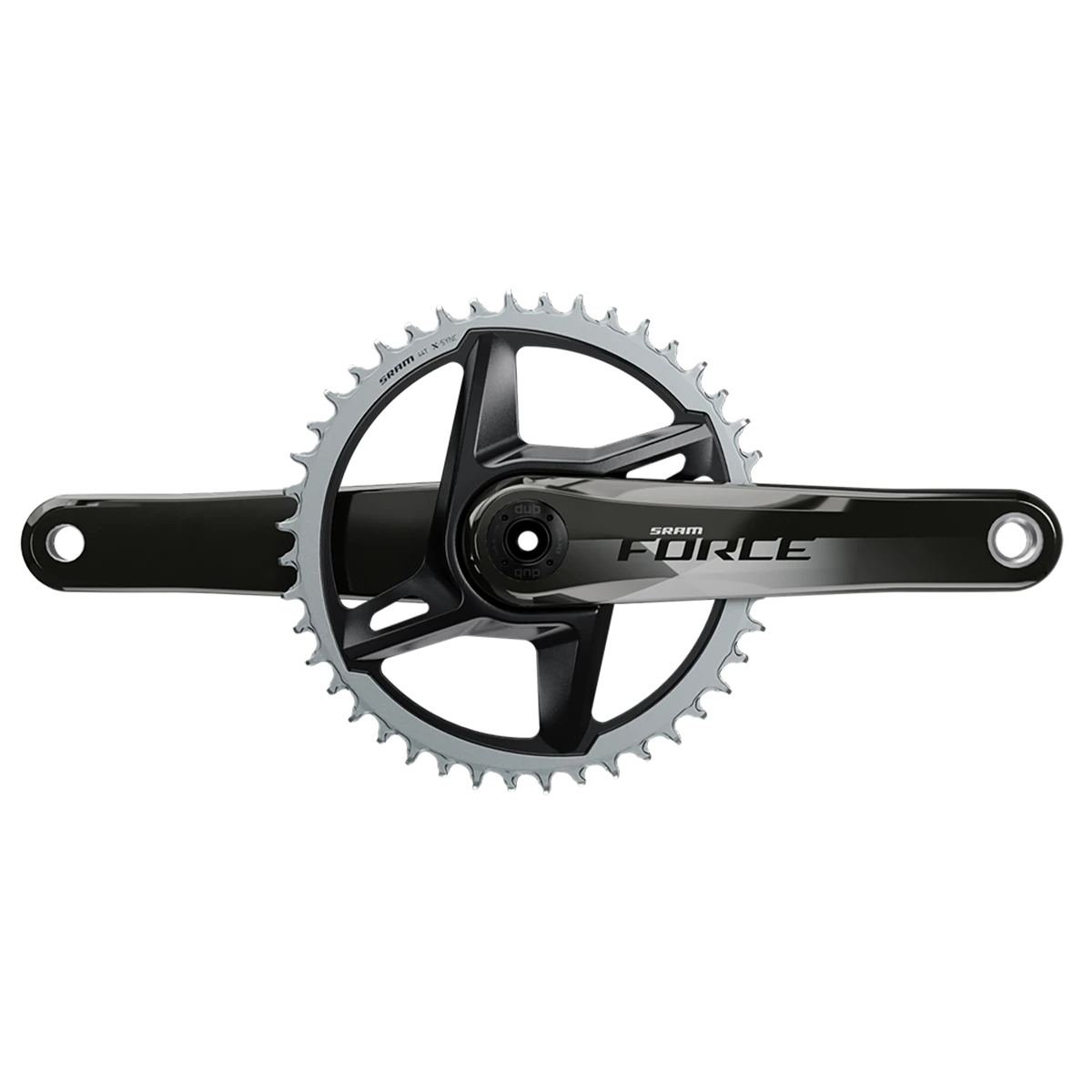

SRAM Force 1 Crankset 1×12-speed

Modern gravel bikes are virtually predestined for singlespeed drivetrains. And the Force 1 12-speed crankset by SRAM is just the right tool for you.
As an important component of SRAM’s X-Range technology, it helps shift the gear range from the front to the rear. The result is a lightweight, robust and intuitive drivetrain that, together with an SRAM XPLR 10-44t cassette, offers the ideal gear range for rides on varied terrain. Or you can combine it with a 12-speed road cassette for road races and rides on flat terrain. Because on flat terrain, wider gear ratios are not necessary and mostly just add unnecessary weight.

Specifically developed for electronic shifting, SRAM’s Force 1 crankset impresses not only with elegant carbon crank arms, but also with the possibility to upgrade it with a powerful power meter whenever you want. With the updated version of the Force 1, SRAM has departed from the previously used spider and now also relies on direct-mount chainrings. Because higher stiffness, easier chainring changes and even more weight savings is something we all like, right?

Details:
• Part of X-Range technology
• Proven X-SYNC Narrow-Wide tooth profile for maximum chain control
• DUB technology: 28.99 mm axle Ø for improved protection against dirt and full compatibility with all common BB standards
• Allows for subsequent upgrade with power meter

Technical details:
• Intended use: Gravel / Cross / Road
• Material: carbon (crank arms), aluminium (chainring)
• Chainring: 46 teeth
• Compatible chains: SRAM Road 12-speed chains (Flattop)
• Bolt circle Ø: – (Direct Mount)
• Chainline: 45 mm
• Weight: approx. 603 g (172.5 mm)

Crank arm length:
• 170 mm
• 172.5 mm
• 175 mm
Please indicate your choice.

In the box:
• SRAM Force 1 DUB crankset 1×12 incl. chainring (WITHOUT bottom bracket)

Compatible bottom brackets:
• SRAM DUB bottom bracket cups with BSA thread (prod. code: 2273154)
• SRAM DUB bottom bracket cups PressFit 30 / BB30 (prod. code: 2273156)
• SRAM DUB bottom bracket cups Pressfit BB86.5 Road (prod. code: 2285969)
• SRAM DUB bottom bracket cups Pressfit BB386 Road (prod. code: 2285971)

Tip:
The SRAM RED AXS Power Meter Spider for retrofitting to a power meter can be found under prod. code: 2285253 (additional chainring required for Spider mounting).
