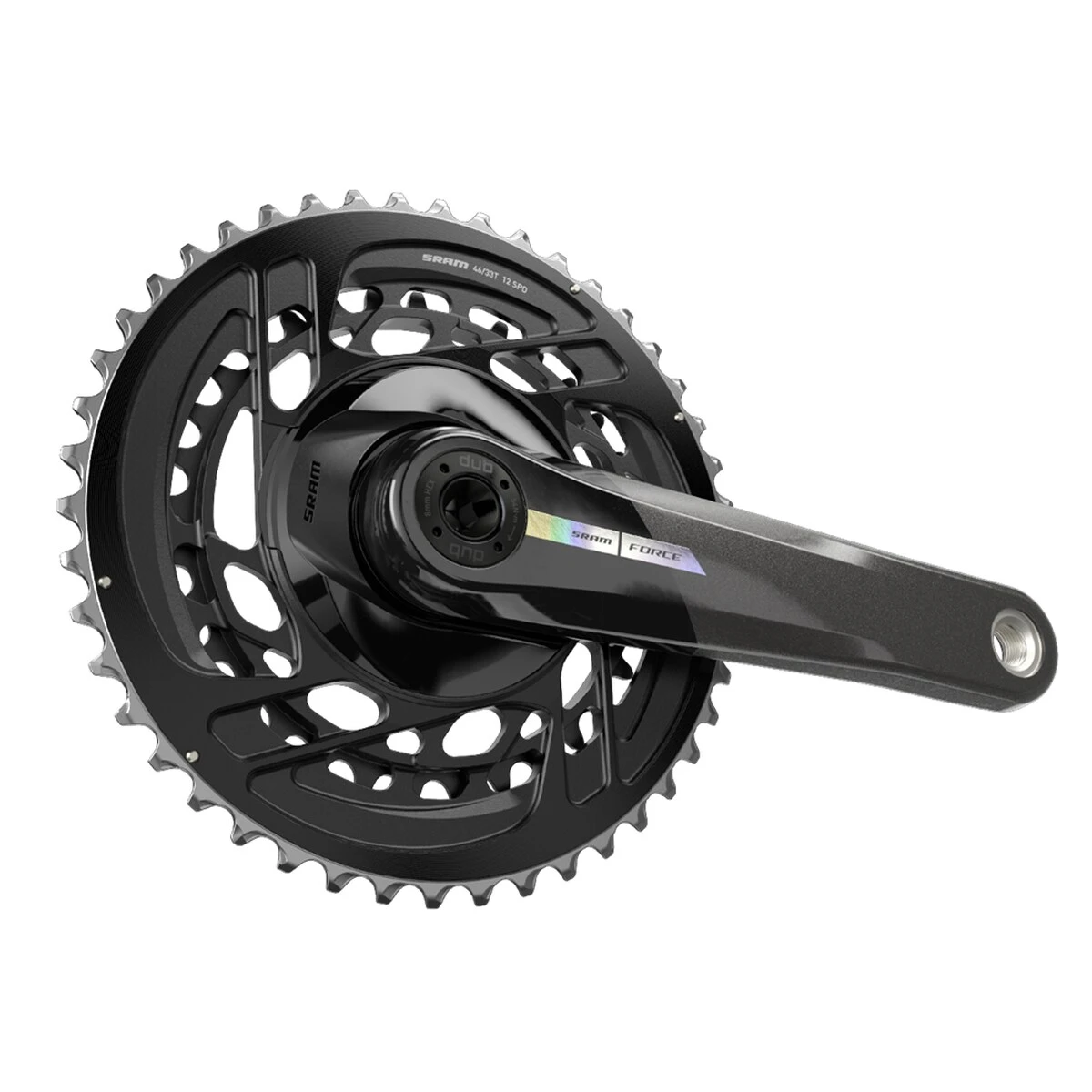

SRAM Force® Crankset 2×12-Speed

Today, modern road cyclists want a wider range of effective gears as well as optimised and smaller gear steps to make sure they have the right gear for any situation. This is exactly what the Force® AXS™ groupset is made for.

Yet, this rider-oriented design wouldn’t be possible at all without the Force® 12-speed crankset, which in its current version benefits from numerous technologies of the RED® crankset. For example, it also features the one-piece Direct Mount chainring design to save weight and to increase stiffness and durability.
As an important component of SRAM’s X-Range™ technology, it helps shift the gear range from the front to the rear. Thus, all Force® double cranksets feature smaller chainrings and a constant chainring spacing of 13 teeth, which results in smoother and faster shifting and always provides the perfect gear ratio in combination with the 12-speed cassette at the rear.
Specifically developed for electronic shifting, SRAM’s Force® crankset impresses not only with elegant carbon crank arms, a futuristic design and a perfect gear ratio, but also with the possibility to upgrade it with a powerful power meter whenever you want.

Details:
• Part of the X-Range™ technology
• Improved shifting performance for fast and precise gear shifts
• Special one-piece DirectMount chainring design for a lighter, stiffer and more durable crankset
• DUB™ technology: 28.99 mm axle Ø for improved protection against dirt and full compatibility with all common BB standards
• Allows for subsequent upgrade with power meter

Technical details:
• Intended use: Road
• Material: carbon (crank arms), aluminium (chainring)
• Crank arm length: 172.5 mm
• Compatible with SRAM Road 12-speed chains
• Bolt circle Ø: – (Direct Mount)
• Chainline: 45 mm

Gear ratio:
• 33 – 46 teeth
• 35 – 48 teeth
• 37 – 50 teeth
Please indicate your choice.

In the box:
• SRAM Force® crankset 2 x 12-speed incl. Direct Mount double chainring (WITHOUT bottom bracket)

Compatible bottom brackets:
• SRAM DUB™ bottom bracket cups with BSA thread (product code: 2273154)
• SRAM DUB™ bottom bracket cups PressFit 30 / BB30 (product code: 2273156)
• SRAM DUB™ bottom bracket cups Pressfit BB86.5 Road (product code: 2285969)
• SRAM DUB™ bottom bracket cups Pressfit BB386 Road (product code: 2285971)
