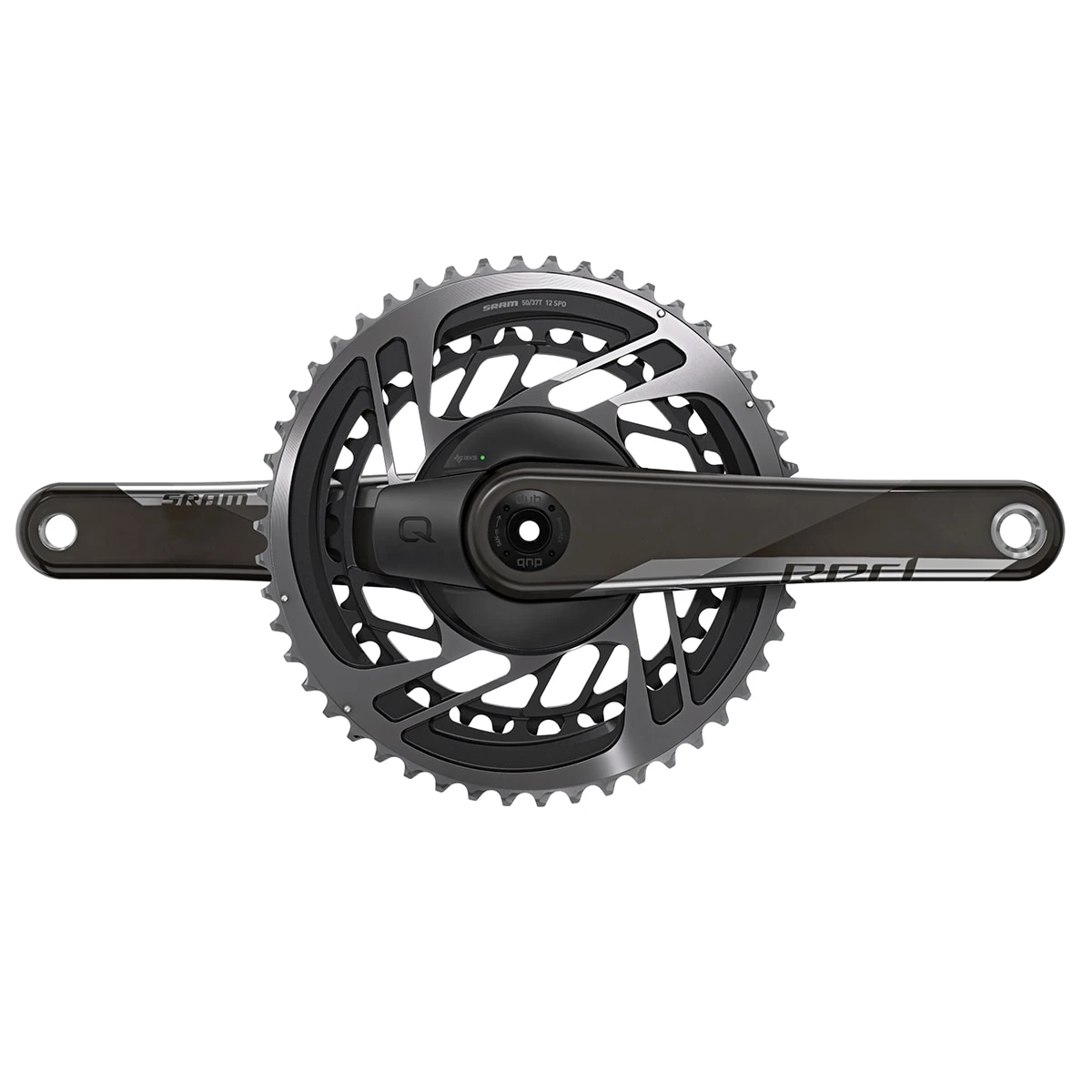

SRAM RED® AXS™ Power Meter Crankset 2×12

The SRAM RED® AXS™ power meter not only breaks with “long-serving” traditions, but it also brings a new level of performance. Based on the RED® 12-speed crankset with its elegant Exogram™ carbon crank arms, the powerful measurement system completely integrates the DZero™ power measurement technique into the one-piece DirectMount chainring design with X-Range™ technology. With this technology, SRAM has managed to shift the gear range of the drivetrain from the front to the rear. Thus, all RED® double cranks, including all power meters, feature smaller chainrings and a constant chainring spacing of 13 teeth, which results in smoother and faster shifting and always provides the perfect gear ratio in combination with the 12-speed cassette at the rear.

The power output in watts is calculated by multiplying torque (pedal force) by cadence. High-quality sensors determine performance data with +/- 1,5% accuracy. Moreover, they offer independent right and left leg measurement thanks to the Power Balance™ technology. What’s more, the DZero™ power measurement technology even takes into account climatic parameters like temperature. This eliminates fluctuations of the measured values caused by high or low temperatures.
The SRAM RED® AXS™ power meter transfers all data collected wirelessly, using ANT+ or Bluetooth 4.0 (BLE). Thus, it is compatible with most smartphones and almost all common bike computers that designed to display performance data.
Adjustments, calibration and integration into an existing AXS™ Road group are done via the SRAM AXS™ app. This electronic integration platform allows you to check the status of the battery, fine tune the components, adjust the controllers, receive maintenance reminders and update the firmware.

Details:
• X-Range™ technology for wider gear range and improved shifting performance
• Exogram™ technology: hollow carbon arms for high stiffness and low weight
• Improved shifting performance for fast and precise gear shifts

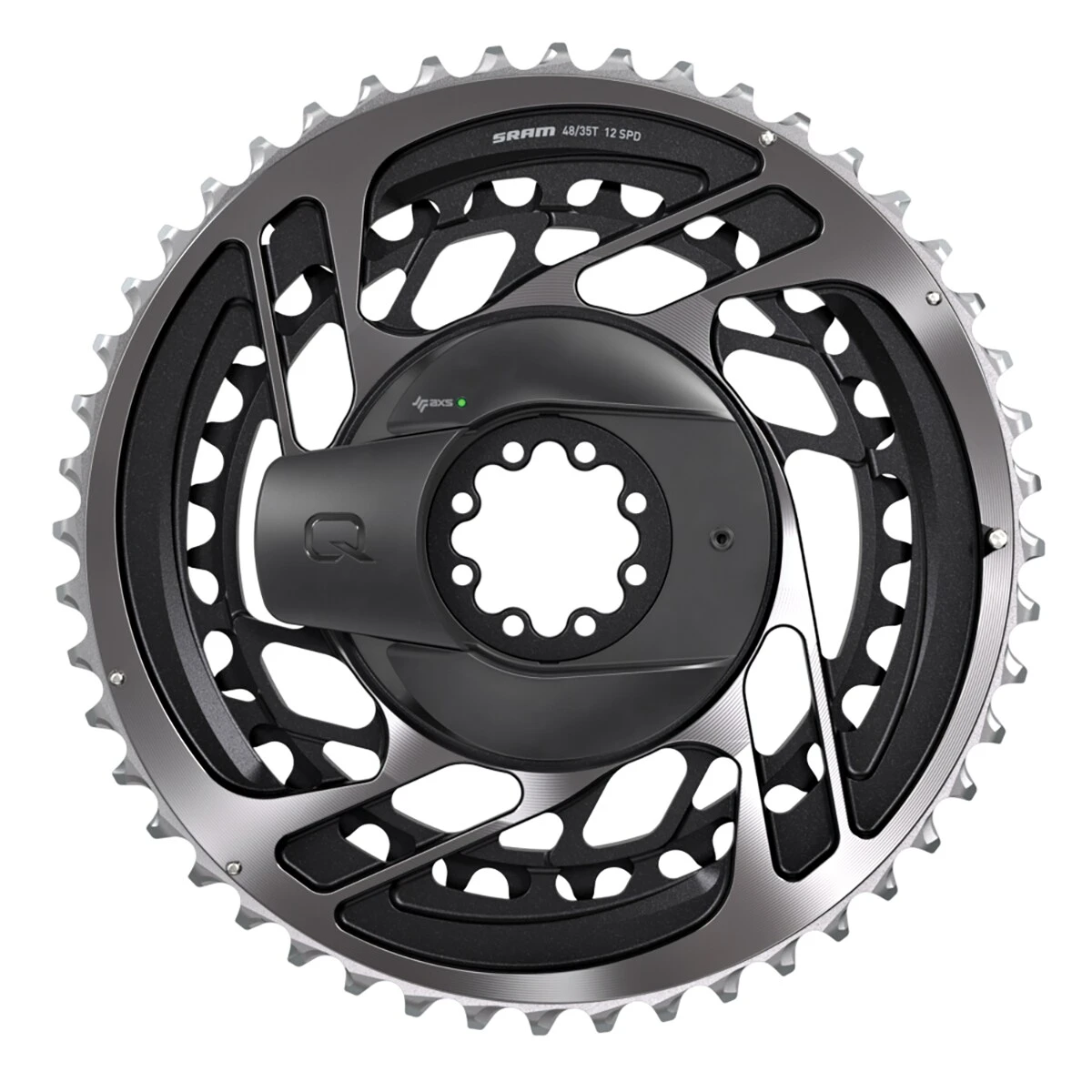

• Special DirectMount chainring design with built-in Quarq DZero™ measurement technology for a lighter, stiffer and more durable crankset
• Power measurement accuracy of +/- 1.5%
• Power Balance™: Independent left and right leg measurements
• DUB™ technology: 28.99 mm axle Ø for improved protection against dirt and full compatibility with all common BB standards

Specs:
• Use: Road
• Compatible with SRAM AXS™ for easy customisation
• Replaceable CR2032 battery for approx. 200 hours of riding
• Wireless communication with ANT+ or Bluetooth LE
• IPX7 waterproof rating
• LED display for easy setup and error diagnosis
• Compatible with SRAM Road 12-speed chains
• Carbon crank arms
• DirectMount chainrings
• Material chainring: 7075 T6 aluminium
• Chain line: 45 mm
• Weight: approx. 595 g (175 mm / 33-46 teeth)

Crankarm length:
• 170 mm
• 172.5 mm
• 175 mm
Please make your choice.

Gear ratio:
• 33 – 46 teeth
• 35 – 48 teeth
• 37 – 50 teeth
Please make your choice.

In the box:
• RED AXS Power Meter 2×12 incl. Direct Mount chainrings (WITHOUT bottom bracket)

Compatible bottom brackets:
• SRAM DUB™ bottom bracket cups with BSA thread (product code: 2273154)
• SRAM DUB™ bottom bracket cups PressFit 30 / BB30 (product code: 2273156)
• SRAM DUB™ bottom bracket cups Pressfit BB86.5 Road (product code: 2285969)
• SRAM DUB™ bottom bracket cups Pressfit BB386 Road (product code: 2285971)
