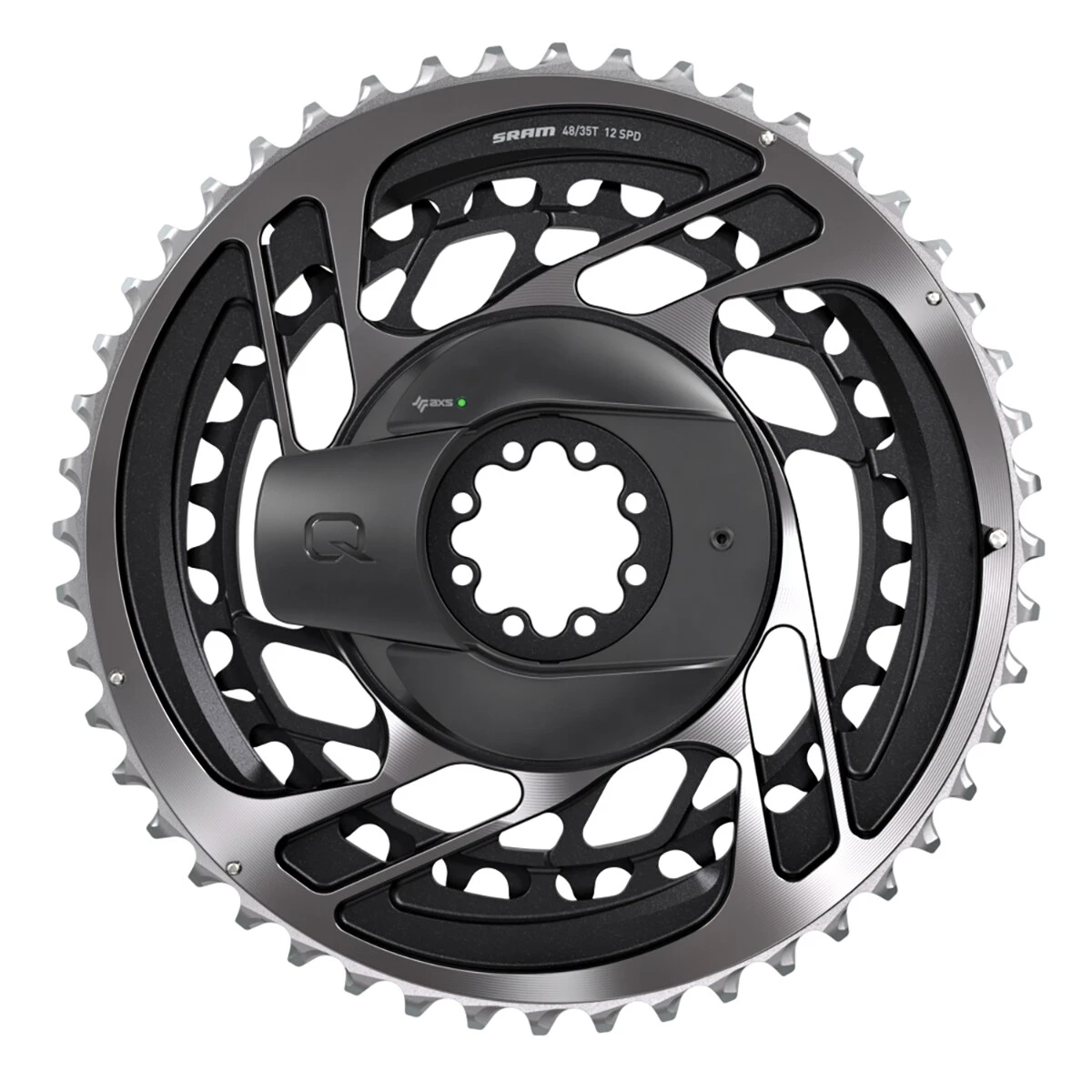

SRAM RED® AXS™ Power Meter Kit 2×12

SRAM’s RED® AXS™ Power Meter Kit allows you to upgrade your compatible SRAM Road 12-speed crankset to a complete power meter with a flick of the wrist. The power measurement system by Quarq with DZero™ measurement technology is completely integrated into the one-piece DirectMount chainring design with X-Range™ technology. Therefore, the installation of the system is just as easy as the installation of standard chainrings. All you have to do is fit it to your bike and get going!

With the X-Range™ technology, SRAM has managed to shift the gear range of the drivetrain from the front to the rear. Thus, all RED® double cranks, including all power meters, feature smaller chainrings and a constant chainring spacing of 13 teeth, which results in smoother and faster shifting and always provides the perfect gear ratio in combination with the 12-speed cassette at the rear.

The power output in watts is calculated by multiplying torque (pedal force) by cadence. High-quality sensors determine performance data with +/- 1,5% accuracy. Moreover, they offer independent right and left leg measurement thanks to the Power Balance™ technology. What’s more, the DZero™ power measurement technology even takes into account climatic parameters like temperature. This eliminates fluctuations of the measured values caused by high or low temperatures.
The SRAM RED® AXS™ power meter transfers all data collected wirelessly, using ANT+ or Bluetooth 4.0 (BLE). Thus, it is compatible with most smartphones and almost all common bike computers that designed to display performance data.
Adjustments, calibration and integration into an existing AXS™ Road group are done via the SRAM AXS™ app. This electronic integration platform allows you to check the status of the battery, fine tune the components, adjust the controllers, receive maintenance reminders and update the firmware.

Details:
• X-Range™ technology for wider gear range and improved shifting performance
• Improved shifting performance for fast and precise gear shifts
• Special DirectMount chainring design with built-in Quarq DZero™ measurement technology for a lighter, stiffer and more durable crankset
• Power measurement accuracy of +/- 1.5%
• Power Balance™: Independent left and right leg measurements

Specs:
• Use: Road
• For 2×12 speed configuration
• Compatible with SRAM AXS™ for easy customisation
• Replaceable CR2032 battery for approx. 200 hours of riding
• Wireless communication with ANT+ or Bluetooth LE
• IPX7 waterproof rating
• LED display for easy setup and error diagnosis
• Compatible with SRAM Road 12-speed chains
• DirectMount design with integrated chainrings
• Material chainring: 7075 T6 aluminium
• Chain line: 45 mm
• Weight: approx. 595 g (completely upgraded RED® crank 175 mm / 33 – 46 teeth)

Gear ratio:
• 33 – 46 teeth
• 35 – 48 teeth
• 37 – 50 teeth
Please make your choice.

In the box:
• RED® AXS™ Power Meter Kit 2×12
