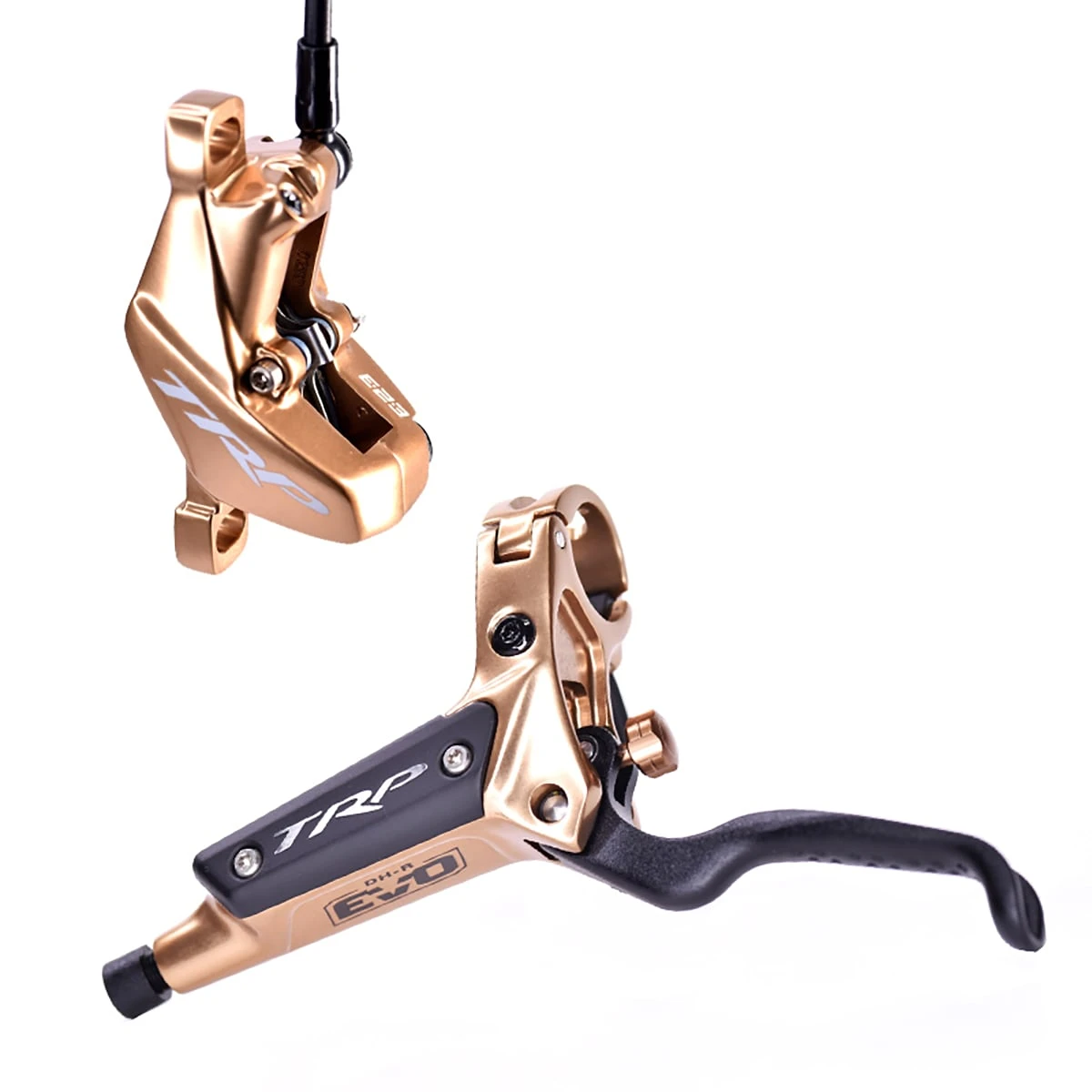

The TRP DH-R EVO disc brake brings maximum stopping power, outstanding modulation and optimised heat management to modern downhill bikes, powerful enduro bikes and, last but not least, heavy high-performance E-MTBs!
The popular predecessor brake TRP G-Spec DH-R has been thoroughly revised for the DH-R EVO. An improved brake calliper, a more ergonomic brake lever, a stronger brake hose, new pad compounds and, last but not least, a revised hydraulic lever ratio raise the performance standard of the TRP DH-R EVO disc brake to a higher level.
The real highlight, however, is that the system is designed for disc rotors with a thickness of 2.3 mm. These particularly “thick” rotors ensure enormous temperature stability and thus consistently high braking power even under extreme conditions.
Details:
• Forged, CNC-machined and polished brake lever and calliper with gold finish

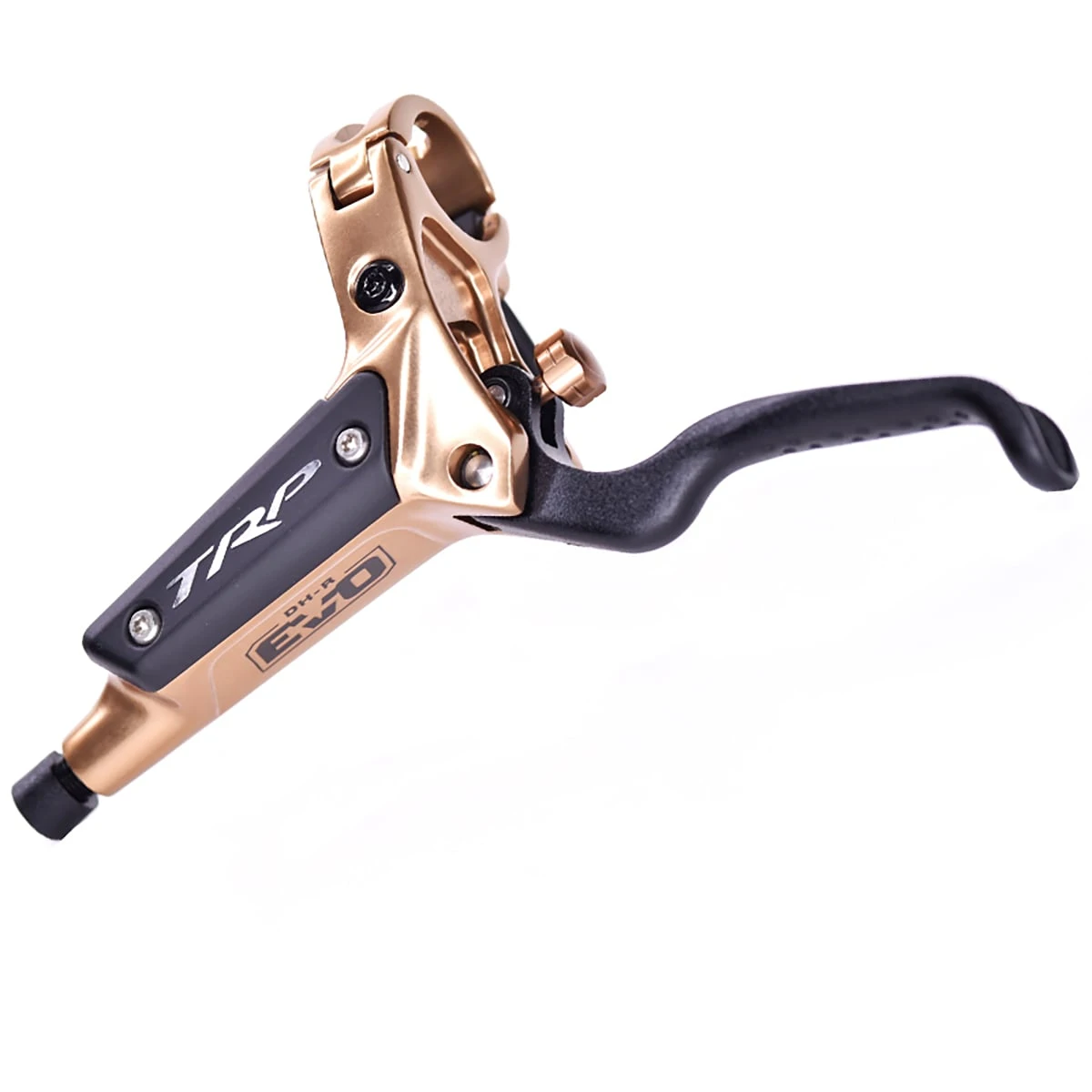

• Ergonomic lever shape and nubby texture for better grip
• Adjustable lever reach and hinged clamp
• 9 mm internal brake lever piston, 5 mm thick hydraulic hoses and hybrid piston
• High-performance, heat-resistant mineral oil with low viscosity for even better response
• Specially developed for 2.3 mm thick brake rotors*
• Compatible with I-Spec II
Technical details:
• Material: forged aluminium (polished), plastic
• Number of pistons: 4
• Brake calliper: post mount
• For handlebar Ø: 22.2 mm
• Brake pads: Resin (organic)
• Brake fluid: TRP mineral oil
• Lever reach adjustment: yes (without tools)
• Contact point adjustment: no
• Shift lever integration: yes (SHIMANO I-Spec II standard)
• Recommended disc rotor: R1 6-bolt (2.3 mm, prod. code: 2329255); R1C Centerlock (2.3mm, prod. code: 2329268)
• Weight: approx. 310 g (incl. 760 mm hose, WITHOUT rotors & adapters)
Available versions:
• Left lever (1900 mm hose length)
• Right lever (1900 mm hose length)
Please indicate your choice.
In the box:
• 1 TRP DH-R EVO disc brake (filled and bled, ready for installation)
incl. 1 pair of TRP brake pads (organic) as well as olive and insert pin for cutting the brake hoses.
Optional accessories:
• TRP R1 6-bolt disc rotor 2.3 mm (prod. code: 2329255)
• TRP R1C Centerlock disc rotor 2.3 mm (prod. code: 2329268)
• TRP disc brake adapter PM/PM (prod. code: 2329272)
• TRP Basic Bleed Kit (prod. code: 2329273)
• TRP mineral oil (prod. code: 2329288)
*Attention:
ONLY approved for use with 2.3 mm thick disc rotors!
